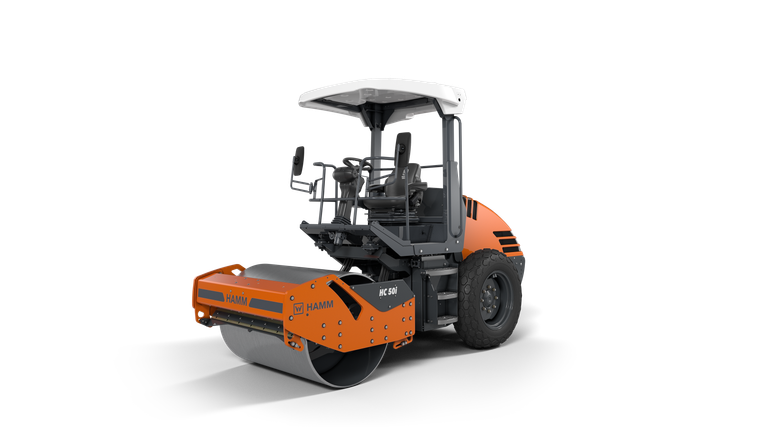

Compactor with smooth drum HC 50i

HC 50i Compactor with smooth drum

5,195 kg

1,370 mm

EU Stage V / EPA Tier 4

  • 3-point articulation for excellent traction and cross-country mobility
  • High climbing ability
  • Excellent view of machine and construction site
  • Compact dimensions
  • Simple, intuitive and language-neutral control
Show less

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Learn more

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Learn more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HC CompactLine
Name
HC 50i
Description
Compactor with smooth drum
Exhaust emissions category
EU Stage V / EPA Tier 4
Series
H287
Static linear load, front
Operating weight with ROPS
Empty weight without cab, without ROPS
Operating weight with cab
Axle load, rear
Axle load, front
Static linear load, front
19.93 kg/cm
Operating weight with ROPS
4,960 kg
Empty weight without cab, without ROPS
4,695 kg
Operating weight with cab
5,195 kg
Axle load, rear
2,465 kg
Axle load, front
2,730 kg
Total length
Total width with cab
Maximum working width
Total height with cab
Center distance
Ground clearance, center
Turning radius, inside
Total height with ROPS
Slope angle, rear
Slope angle, front
Total length
4,040 mm
Total width with cab
2,018 mm
Maximum working width
1,370 mm
Total height with cab
2,838 mm
Center distance
2,169 mm
Ground clearance, center
277 mm
Turning radius, inside
3,375 mm
Total height with ROPS
2,835 mm
Slope angle, rear
35 °
Slope angle, front
44 °
Drum diameter, front
Drum width, front
Drum type, front
Drum thickness, front
Drum diameter, front
1,000 mm
Drum width, front
1,370 mm
Drum type, front
Smooth
Drum thickness, front
20 mm
Number of tires, rear
Tire size, rear
Width over tires, rear
Number of tires, rear
2
Tire size, rear
AW 12.4-24 8 PR
Width over tires, rear
1,500 mm
Manufacturer
Model
Cylinders, quantity
Exhaust emission standard
Exhaust gas after-treatment
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1995, rpm
Power SAE J1995, HP
Power SAE J1995, kW
Manufacturer
KUBOTA
Model
V3307-CR-TE5AB
Cylinders, quantity
4
Exhaust emission standard
EU Stage V / EPA Tier 4
Exhaust gas after-treatment
DOC-DPF
Power ISO 14396, rpm
2,200 rpm
Power ISO 14396, HP
74.3 HP
Power ISO 14396, kW
54.6 kW
Power SAE J1995, rpm
2,200 rpm
Power SAE J1995, HP
74.2 hp
Power SAE J1995, kW
55.4 kW
Speed, transport gear
Climbing ability, without vibration
Speed, working gear, I
Speed, transport gear
0-10,7
Climbing ability, without vibration
60 %
Speed, working gear, I
0-6,0
Vibration frequency, front
Amplitude, front
Centrifugal force, front
Vibration frequency, front
30 Hz
Amplitude, front
1.57 mm
Centrifugal force, front
69 kN
Steering, type
Steering, type
Articulated steering
Fuel tank, capacity
Fuel tank, capacity
123 l
Sound power level L(WA), guaranteed
Sound power level L(WA), guaranteed
105

Equipment

  • 12 V sockets (2-fold)
  • Driver's seat in black imitation leather
  • Plastic scraper, for smooth drum
  • Maintenance points, central on one machine side
  • Vibration-isolated driver's platform
  • Hose protection on the front vehicle
  • Large slope angles at front and rear
  • Cup holder
  • Spring-mounted driver's seat with armrest and seat belt
  • ECO mode
  • Fixture for cool box
  • Dashboard with displays, indicator lights and switches
  • Anti-slip control
  • Storage compartments
  • Storage compartment below the driver’s seat
  • Storage compartment behind the driver’s seat
  • 3-point articulation
  • Two large exterior rear-view mirrors
Show less

Optional equipment

  • Combination scraper for smooth drum and padfoot shells
  • Tool kit
  • Battery isolation switch
  • Working spotlights
  • Automatic vibration system
  • Back-up alarm
  • Camera system
  • Automatic engine stop
  • Speedometer
  • Padfoot shell
  • Dozer blade
  • Bluetooth interface for Smart Doc
  • Tachograph
  • Seat belt monitoring device
  • Driver's seat with high backrest, anthracite fabric, comfort equipment
  • ROPS cab with heating and air-conditioning system (FOPS, level I)
