Screeds
VÖGELE screeds – Because building roads requires accuracy
The screed is the heart of each road paver. From an engineering perspective, it is the most crucial component, guaranteeing that the specified results are achieved on any paving job. JOSEPH VÖGELE AG is committed to the manufacture of extremely reliable cutting-edge screeds in premium quality.
Extending screeds
VÖGELE extending screeds are particularly adaptable, making them ideal for paving in varying widths and on winding roads. They cover a wide field of applications, handling paving widths from 1 ft 8 in to 31 ft 2 in. Depending on the type of paver used, they can be equipped with various compacting systems. The range extends from the simplest screed version with vibrators (V) to the most powerful high compaction screeds with tamper (T) and two pressure bars (P2).
AB 135
| Maximum paving width | 1.8 m |
| Minimum paving width | 0.25 m |
| Compacting systems | V |
AB 220
| Maximum paving width | 3.5 m |
| Minimum paving width | 0.5 m |
| Compacting systems | V, TV |
AB 340
| Maximum paving width | 5 m |
| Minimum paving width | 0.75 m |
| Compacting systems | V, TV |
AB 500
| Maximum paving width | 8.5 m |
| Minimum paving width | 2.55 m |
| Compacting systems | TV, TP1, TP2, TP2 Plus |
AB 500
| Maximum paving width | 8.75 m |
| Minimum paving width | 2.55 m |
| Compacting systems | TV, TP1, TP2, TP2 Plus |
AB 600
| Maximum paving width | 9.5 m |
| Minimum paving width | 3 m |
| Compacting systems | TV, TP1, TP2, TP2 Plus |
AB 600
| Maximum paving width | 9.75 m |
| Minimum paving width | 3 m |
| Compacting systems | TV, TP1, TP2, TP2 Plus |

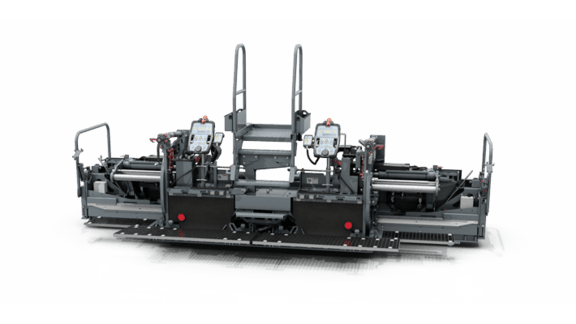

VF 500
| Maximum paving width | 5.95 m |
| Minimum paving width | 1.23 m |
| Compacting systems | V |

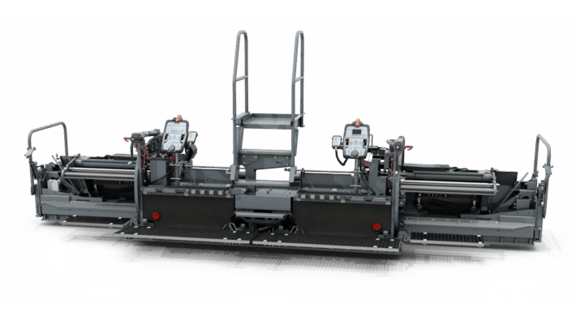

VF 600
| Maximum paving width | 7.75 m |
| Minimum paving width | 1.83 m |
| Compacting systems | V |
VR 600
| Maximum paving width | 8.6 m |
| Minimum paving width | 3.05 m |
| Compacting systems | V |
Fixed-width screeds
VÖGELE fixed-width screeds demonstrate their strengths wherever pavements need to be built in large widths up to 59 ft 1 in, true to line and level. And in all those projects requiring high compaction of materials such as water-bound base course mixes, Roller Compacted Concrete (RCC) or Paver Compacted Concrete (PCC). Thanks to 4 ft 1 in hydraulic bolt-on extensions, paving width is infinitely variable within a range of 8 ft 2 in. Screed plates, tamper bars and pressure bar(s) are heated uniformly for a homogeneous surface structure. The electric heating warms the screed up to its operating temperature much more quickly, even with the engine running at minimum rpm, thanks to intelligent generator management.
SB 300
| Maximum paving width | 16 m |
| Minimum paving width | 3 m |
| Compacting systems | TV, TP1, TP2 |
SB 300 HD
| Maximum paving width | 12 m |
| Minimum paving width | 3 m |
| Compacting systems | TV |
SB 350
| Maximum paving width | 18 m |
| Minimum paving width | 3.5 m |
| Compacting systems | TV, TP1, TP2 |
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
