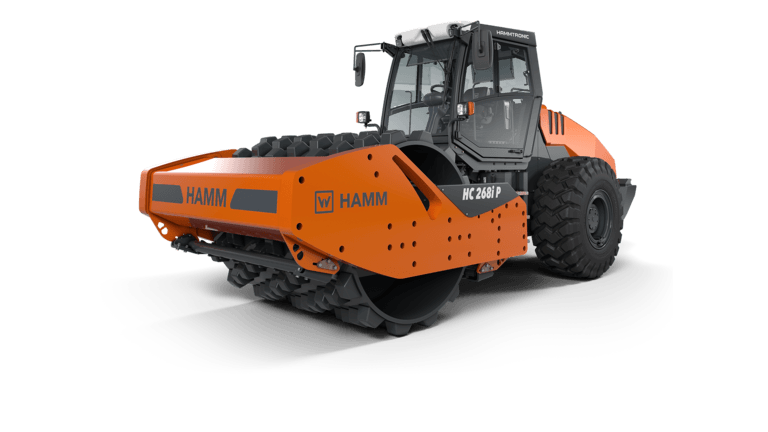

HC 268i P Compactor with padfoot drum
26,080 kg
2,140 mm
MEE IV
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HC
- Name
- HC 268i P
- Description
- Compactor with padfoot drum
- Exhaust emissions category
- MEE IV
- Series
- H260
- Static linear load, front
- Operating weight with cab
- Axle load, rear
- Axle load, front
-
- Static linear load, front
- 78.3 kg/cm
- Operating weight with cab
- 26,080 kg
- Axle load, rear
- 9,320 kg
- Axle load, front
- 16,760 kg
- Total width
- Total length
- Maximum working width
- Centre distance
- Ground clearance, centre
- Turning radius, inside
- Total height
- Slope angle, rear
- Slope angle, front
-
- Total width
- 2,490 mm
- Total length
- 6,847 mm
- Maximum working width
- 2,140 mm
- Centre distance
- 3,433 mm
- Ground clearance, centre
- 441 mm
- Turning radius, inside
- 5,159 mm
- Total height
- 3,301 mm
- Slope angle, rear
- 29 °
- Slope angle, front
- 35 °
- Drum diameter, front
- Drum width, front
- Padfeet, quantity
- Height of the padfeet
- Drum type, front
- Drum thickness, front
-
- Drum diameter, front
- 1,680 mm
- Drum width, front
- 2,140 mm
- Padfeet, quantity
- 130
- Height of the padfeet
- 100 mm
- Drum type, front
- Padfoot
- Drum thickness, front
- 30 mm
- Tyre size, rear
- Width over tyres, rear
-
- Tyre size, rear
- EM 23.5-R25 PR
- Width over tyres, rear
- 2,235 mm
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Exhaust gas after-treatment
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1349, rpm
- Power SAE J1349, HP
- Power SAE J1349, kW
-
- Manufacturer
- CUMMINS
- Model
- B5.9CS4 210C
- Cylinders, quantity
- 6
- Exhaust emission standard
- MEE IV
- Exhaust gas after-treatment
- DOC-DPF
- Power ISO 14396, rpm
- 2,200 rpm
- Power ISO 14396, HP
- 209 HP
- Power ISO 14396, kW
- 154 kW
- Power SAE J1349, rpm
- 2,200 rpm
- Power SAE J1349, HP
- 206 hp
- Power SAE J1349, kW
- 154 kW
- Speed, infinitely variable
- Climbing ability, without vibration
-
- Speed, infinitely variable
- 0-12,2
- Climbing ability, without vibration
- 57 %
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, front, II
- Vibration frequency, front, I
-
- Centrifugal force, front, II
- 242 kN
- Centrifugal force, front, I
- 331 kN
- Amplitude, front, II
- 1.1 mm
- Amplitude, front, I
- 1.85 mm
- Vibration frequency, front, II
- 30 Hz
- Vibration frequency, front, I
- 27 Hz
- Steering, type
- Oscillation angle +/-
-
- Steering, type
- Articulated steering
- Oscillation angle +/-
- 10 °
- Fuel tank, capacity
-
- Fuel tank, capacity
- 321 l
