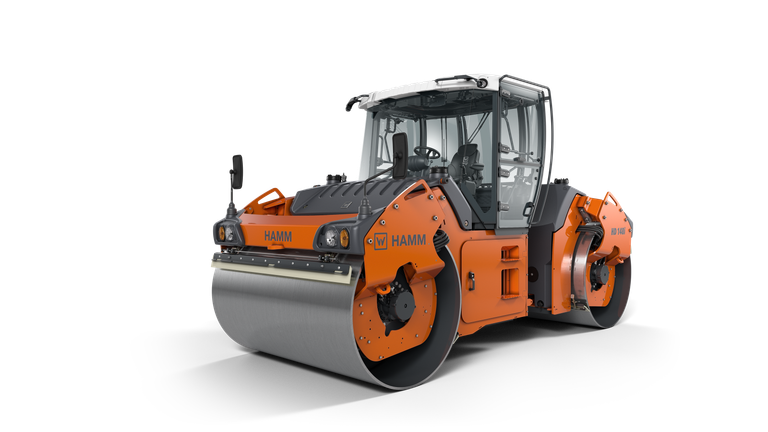

Tandem roller with two vibrating roller drums HD 148i VV

HD 148i VV Tandem roller with two vibrating roller drums

14,350 kg

2,140 mm

MEE IV

  • 3-point articulation for even weight distribution and excellent on-centre feel
  • Ergonomic driver platform with rotatable seat operating unit and adjustable driver's seat
  • Track offset for comfortable start up, moving away and compacting at curb edges
  • Simple, intuitive and language-neutral operation
  • Excellent view of the machine and the construction site
Show less

3-point articulation

3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Learn more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HD
Name
HD 148i VV
Description
Tandem roller with two vibrating roller drums
Exhaust emissions category
MEE IV
Series
H261
Operating weight with cab
Static linear load, rear
Static linear load, front
Axle load, rear
Axle load, front
Operating weight with cab
14,350 kg
Static linear load, rear
32.5
Static linear load, front
34.4 kg/cm
Axle load, rear
7,000 kg
Axle load, front
7,350 kg
Total length
Total width with cab
Maximum working width
Total height with cab
Centre distance
Ground clearance, centre
Turning radius, inside
Total length
5,300 mm
Total width with cab
2,267 mm
Maximum working width
2,310 mm
Total height with cab
2,983 mm
Centre distance
3,895 mm
Ground clearance, centre
317 mm
Turning radius, inside
5,980 mm
Drum type, front
Drum type, rear
Track offset, left
Drum thickness, rear
Drum thickness, front
Drum diameter, rear
Drum diameter, front
Drum width, rear
Drum width, front
Drum type, front
Smooth/non-split
Drum type, rear
Smooth/non-split
Track offset, left
170 mm
Drum thickness, rear
19 mm
Drum thickness, front
19 mm
Drum diameter, rear
1,400 mm
Drum diameter, front
1,400 mm
Drum width, rear
2,140 mm
Drum width, front
2,140 mm
Manufacturer
Model
Cylinders, quantity
Exhaust emission standard
Exhaust gas after-treatment
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1349, rpm
Power SAE J1349, HP
Power SAE J1349, kW
Manufacturer
CUMMINS
Model
F4.5CS4168
Cylinders, quantity
4
Exhaust emission standard
MEE IV
Exhaust gas after-treatment
DOC-DPF
Power ISO 14396, rpm
2,200 rpm
Power ISO 14396, HP
170 HP
Power ISO 14396, kW
125 kW
Power SAE J1349, rpm
2,200 rpm
Power SAE J1349, HP
168 hp
Power SAE J1349, kW
125 kW
Regulation, infinitely variable
Speed, transport gear
Climbing ability, without vibration
Speed, working gear, I
Regulation, infinitely variable
HAMMTRONIC
Speed, transport gear
0-12,0
Climbing ability, without vibration
36 %
Speed, working gear, I
0-6,0
Centrifugal force, rear, II
Centrifugal force, rear, I
Centrifugal force, front, II
Centrifugal force, front, I
Amplitude, front, II
Amplitude, front, I
Vibration frequency, rear, II
Vibration frequency, rear, I
Vibration frequency, front, II
Vibration frequency, front, I
Amplitude, rear, II
Amplitude, rear, I
Centrifugal force, rear, II
113.7 kN
Centrifugal force, rear, I
145.5 kN
Centrifugal force, front, II
113.7 kN
Centrifugal force, front, I
145.5 kN
Amplitude, front, II
0.23 mm
Amplitude, front, I
0.57 mm
Vibration frequency, rear, II
60 Hz
Vibration frequency, rear, I
43 Hz
Vibration frequency, front, II
60 Hz
Vibration frequency, front, I
43 Hz
Amplitude, rear, II
0.24 mm
Amplitude, rear, I
0.62 mm
Steering, type
Water sprinkling, type
Steering, type
Articulated steering
Water sprinkling, type
Pressure
Water sprinkling, type
Water sprinkling, type
Pressure
Fuel tank, capacity
Water tank, capacity
Fuel tank, capacity
240 l
Water tank, capacity
1,145 l

Equipment

  • 2 water pumps
  • Scrapers foldable
  • Dashboard with displays, indicator lights and switches
  • Dashboard tiltable
  • Spring-mounted driver's seat with armrests and seat belt
  • HAMMTRONIC – electronic machine management
  • Seat operating unit, adjustable sideways and rotatable
  • Track offset
  • Compaction parameters adjustable per axle
  • Water-sprinkling system with spray bars front and rear
  • Water filter system (3-fold)
  • Water tank front and rear, can be filled from both sides
  • Central water outlet

Optional equipment

  • Heating and air-conditioning system
  • Frequency control
  • Track offset display
  • Camera system
  • Back-up alarm
  • Working spotlights
  • Drum edge lighting
  • Battery isolation switch
  • Locking device
  • Tool kit
