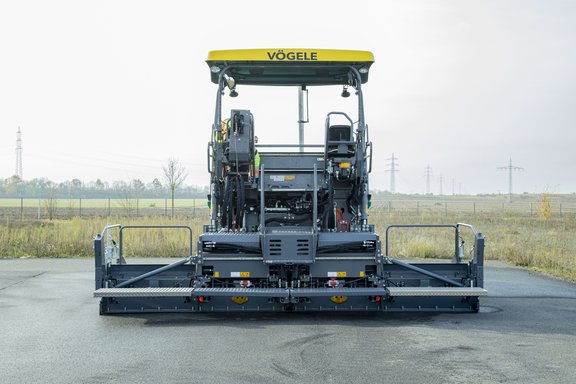

AB 480 Extending screed
TV
2.55 m - 7.80 m
2.55
m
The perfect screed for the Classic Line pavers of the Universal Class
The AB 480 extends hydraulically from 2.55 m to 4.8 m. The maximum pave width with bolt-on extension depends on the tractor unit to which it is attached. The AB 480 is available in a screed version with tamper and vibrators and is the right choice when the bulk of the work is half-side paving and paving farm tracks.
Show less
Compaction technology
VÖGELE sets standards in compaction values during paving: cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high compaction system with tamper and pressure bars.
Manufacturing technology Screeds
VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.
Telescoping system Extending Screeds
The operating principle of all VÖGELE Extending Screeds is the single-tube telescoping system. Even at maximum extension, half of the three-part, generously-sized telescoping tube is clamped, ensuring optimum stabilization. As the guiding system is arranged at a high level, this prevents any contact with paving mix.
Electric screed heating
VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.
Technical specifications
- Basic width
- Hydraulically adjustable
- Minimum pave width
- Maximum pave width
- Bolt-on extensions
-
- Basic width
- 2.55 m
- Hydraulically adjustable
- 2.55 m to 4.80 m
- Minimum pave width
- 2.55 m
- Maximum pave width
- 7.8 m
- Bolt-on extensions
-
Length 25 cm 75 cm
- Version
- Crown adjustment
- Height adjustment, extending units
- Slope, extending units (max.)
-
- Version
- mechanical
- Crown adjustment
- -2 % to 4 %
- Height adjustment, extending units
- -10 mm to 25 mm
- Slope, extending units (max.)
- 2 %
- Compacting systems
- Vibrators (V)
- Version
- Frequency (max.)
- Tamper (T)
- Speed (max.)
- Stroke (TV)
-
- Compacting systems
- TV
- Version
- eccentric vibrators
- Frequency (max.)
- 50 Hz
- Speed (max.)
- 1,800 U/min
- Stroke (TV)
- 4 mm
- Heating rods
- Output generation
-
- Heating rods
- on screed plates and in tamper bars
- Output generation
- three-phase AC generator
- Width (without side plate)
- Basic screed weight
- Depth (in transport position)
-
- Width (without side plate)
- 2.55 m
- Basic screed weight
-
Screed Weight TV 3,000 kg
- Depth (in transport position)
-
Screed Depth AB 480 1.28 m
