SB 300 HDT Fixed-width screed
m

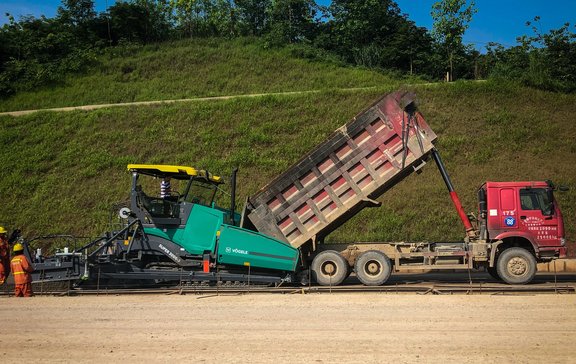

The specialist for difficult roadbase jobs
The SB 300 HDT fixed-width screed is designed specifically for paving non-bituminous mixes for roadbase construction, allowing crushed-stone bases and anti-freeze layers to be paved in thick layers efficiently and accurately. To this end, the rugged screed is equipped with a special tamper which is used to achieve particularly high precompaction.
Show less
Compaction technology
VÖGELE sets standards in compaction values during paving: cutting-edge technology and the most advanced materials guarantee the outstanding performance and reliability of VÖGELE compaction technology. This applies to all VÖGELE compacting systems, from vibrators all the way to the VÖGELE high compaction system with tamper and pressure bars.
Manufacturing technology Screeds
VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.
Technical specifications
- Basic width
- Minimum pave width
- Maximum pave width
- Bolt-on extensions
-
- Basic width
- 3 m
- Minimum pave width
- 3 m
- Maximum pave width
- 12 m
- Bolt-on extensions
-
Length 25 cm 50 cm 100 cm 150 cm
- Version
- Crown adjustment
-
- Version
- mechanical
- Crown adjustment
- -2 % to 3 %
- Compacting systems
- Vibrators (V)
- Version
- Frequency (max.)
- Tamper (T)
- Speed (max.)
-
- Compacting systems
- T
- Version
- eccentric vibrators
- Frequency (max.)
- 50 Hz
- Speed (max.)
- 1,800 U/min
- Width (without side plate)
- Basic screed weight
- Depth (in transport position)
-
- Width (without side plate)
- 3 m
- Basic screed weight
-
Screed Weight T 2,250 kg
- Depth (in transport position)
-
Screed Depth SB 300 HDT 1.34 m
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
