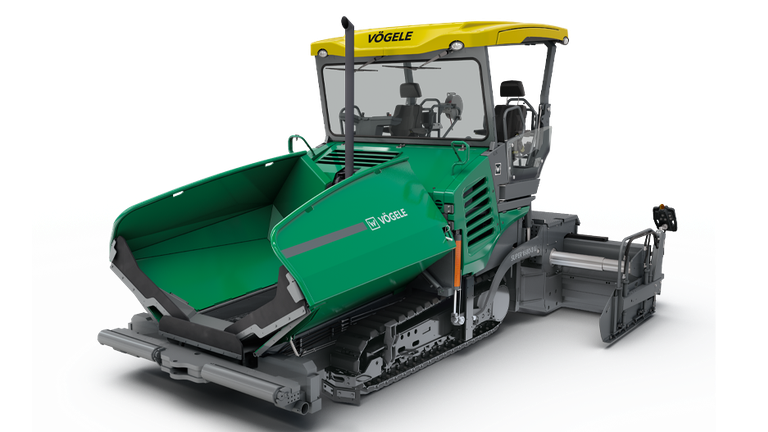

Universal Class tracked paver SUPER 1680-3 Li

SUPER 1680-3 Li Universal Class tracked paver

2.55

m

8

m

800

t/h

Compact, powerful and perfectly equipped

A compact power pack which is even more manœuvrable and versatile than its predecessor, the new SUPER 1680-3 Li is simply impossible to beat. The Universal Class paver effortlessly manages pave widths up to 8 m and can be supplied with mix by all truck types common in China.

Show less
The highlights of the SUPER 1680-3 Li
Drive concept
VÖGELE EcoPlus
Efficient transmission of tractive power
Optimal mix feed
Large push-rollers
ErgoBasic operating system
ErgoBasic operating system
Niveltronic Plus – the System for Automated Grade and Slope Control
Wide range of applications

ErgoPlus 3

Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.

More

VÖGELE EcoPlus

The philosophy behind the machine concept of the Premium Line road pavers is "Lower consumption – lower emissions – lower costs". The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.

More

Niveltronic Plus

The automatic levelling system Niveltronic Plus is an in-house development of JOSEPH VÖGELE AG and based on many years of experience in grade and slope control technology. Easy operation, precision and reliability are its hallmarks for perfect mastery of all grade and slope control jobs.

More

Technical specifications

Engine
Version
Manufacturer
Type
Exhaust emissions standard
Nominal output
ECO mode output
Fuel tank
Version
liquid-cooled 4-cylinder diesel engine
Manufacturer
Foton Cummins
Type
F4.5
Exhaust emissions standard
NR4
Nominal output
123 kW / 2,000 U/min
ECO mode output
119 kW / 1,700 U/min
Fuel tank
220 l
Undercarriage
Version
Ground contact
Traction drive crawler tracks
Lubrication of track rollers
Track tension adjuster
Speeds
Pave speed (up to)
Travel speed (up to)
Version
provided with rubber pads
Ground contact
2,410 mm x 305 mm
Traction drive crawler tracks
separate hydraulic drives with electronic control
Lubrication of track rollers
lifetime
Track tension adjuster
spring assembly
Pave speed (up to)
24 m/min
Travel speed (up to)
4.5 km/h
Hopper capacity
Width
Feed height (bottom of material hopper)
Push-rollers
Standard
Positions
Hopper capacity
15 t
Width
3,265 mm
Feed height (bottom of material hopper)
615 mm
Standard
oscillating
Positions
can be adjusted in a forward direction by 75 mm or 150 mm
Conveyors
Number
Version
Drive
Speed (up to)
Augers
Number
Version
Diameter
Drive
Rpm (up to)
Height
Standard height
Lubrication
Number
2
Version
with replaceable feeder bars, direction of conveyor temporarily reversible
Drive
separate hydraulic drives, proportional control
Speed (up to)
33 m/min
Number
2
Version
with replaceable auger blades, auger rotation reversible
Diameter
400 mm
Drive
separate hydraulic drives, proportional control
Rpm (up to)
84 U/min
Height
infinitely variable
Standard height
mechanically adjustable by 15 cm
Lubrication
centralized lubrication system, electrically-driven grease pump
Screed
Layer thickness (up to)
Heating
Power Supply
Screed
Type Basic width Maximum width Compacting systems
AB 500 2.55 m 8 m TV
AB 600 3 m 8 m TV
Layer thickness (up to)
30 cm
Heating
electric, by heating rods
Power Supply
Three-phase AC generator
Operating weight
Length
Operating weight
Screed Total weight
AB 500 TV 19,400 kg
AB 600 TV 19,800 kg
Length
Screed Total length
AB 500 6.1 m

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
