SUPER 1880-3 Li Universal Class tracked paver
m
m
t/h

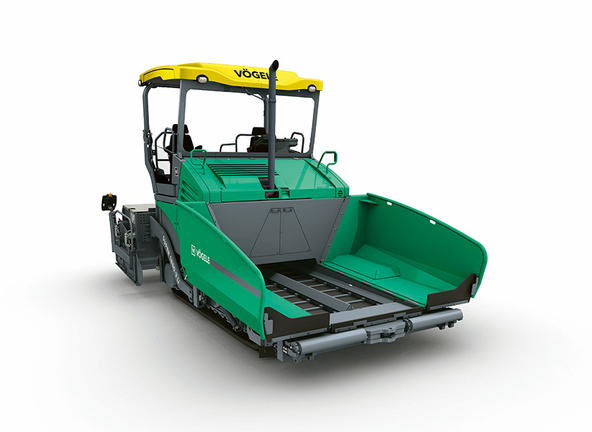

SUPER 1880-3 Li – the high-grade asphalt specialist
The powerful 10 m class paver from VÖGELE is legendary. Although the drive system of the high-grade SUPER 1880-3 Li has been completely revised, the machine still follows on seamlessly from its predecessors, offering the same proven features. To meet ecological and economic challenges in the future too, this Universal Class machine was optimized with a strong focus on slashing fuel consumption with impressive performance.
Show less
ErgoPlus 3
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator.
VÖGELE EcoPlus
The philosophy behind the machine concept of the Premium Line road pavers is "Lower consumption – lower emissions – lower costs". The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.
Niveltronic Plus
The automatic levelling system Niveltronic Plus is an in-house development of JOSEPH VÖGELE AG and based on many years of experience in grade and slope control technology. Easy operation, precision and reliability are its hallmarks for perfect mastery of all grade and slope control jobs.
Technical specifications
- Undercarriage
- Version
- Ground contact
- Traction drive crawler tracks
- Lubrication of track rollers
- Track tension adjuster
- Speeds
- Pave speed (up to)
- Travel speed (up to)
-
- Version
- provided with rubber pads
- Ground contact
- 3,060 mm x 300 mm
- Traction drive crawler tracks
- separate hydraulic drives with electronic control
- Lubrication of track rollers
- lifetime
- Track tension adjuster
- spring assembly
- Pave speed (up to)
- 24 m/min
- Travel speed (up to)
- 4.5 km/h
- Hopper capacity
- Width
- Feed height (bottom of material hopper)
- Push-rollers
- Standard
- Positions
-
- Hopper capacity
- 15 t
- Width
- 3,261 mm
- Feed height (bottom of material hopper)
- 508 mm
- Standard
- oscillating
- Positions
- can be adjusted in a forward direction by 75 mm or 150 mm
- Conveyors
- Number
- Version
- Drive
- Speed (up to)
- Augers
- Number
- Version
- Diameter
- Drive
- Rpm (up to)
- Height
- Standard height
- Lubrication
-
- Number
- 2
- Version
- with replaceable feeder bars, direction of conveyor temporarily reversible
- Drive
- separate hydraulic drives, proportional control
- Speed (up to)
- 37 m/min
- Number
- 2
- Version
- with replaceable auger blades, auger rotation reversible
- Diameter
- 420 mm
- Drive
- separate hydraulic drives, proportional control
- Rpm (up to)
- 95 U/min
- Height
- infinitely variable
- Standard height
- mechanically adjustable by 16 cm
- Lubrication
- centralized lubrication system, electrically-driven grease pump
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
