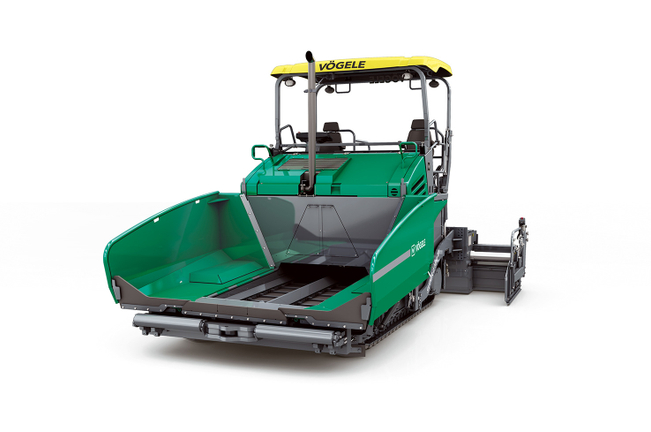

SUPER 2180 Li Highway Class tracked paver
m
m
t/h
Robust, powerful and easy to operate
The drive system of the new SUPER 2180 Li has been completely revised, the machine still follows on seamlessly from its predecessors, offering the same proven features.The powerful material conveying system is sophisticated, as is the ErgoBasic operating concept. With a maximum pave width of 13 m this multifunctional VÖGELE paver handles motorway projects, rural roads or the surfacing of large areas with the same high perfection as it copes with confined spaces.
Show less
ErgoBasic
The ErgoBasic operating concept was designed on the back of the tried and tested ErgoPlus operating system for our Premium Line pavers and tailored specifically to meet the demands and needs of VÖGELE Classic Line users.
The goal was to develop an operating system which can be operated just as quickly, accurately and intuitively as the ErgoPlus 3 system on the “Dash 3” machines. That makes VÖGELE the only manufacturer to offer a standardized operating concept for all paver classes.
Niveltronic Basic
VÖGELE has also developed the Niveltronic Basic System for Automated Grade and Slope Control to match the ErgoBasic operating concept. It is completely integrated in the machine control system and therefore perfectly adapted to the paver model concerned. Another outstanding aspect of Niveltronic Basic is its particularly simple and intuitive handling, a feature which makes it easy even for less experienced operators to use the system correctly. This creates ideal conditions for the Classic Line pavers to work true to line and level on any base.
Technical specifications
- Engine
- Version
- Manufacturer
- Type
- Exhaust emissions standard
- Nominal output
- ECO mode output
- Fuel tank
-
- Version
- liquid-cooled 6-cylinder diesel engine
- Manufacturer
- Dongfeng Cummins
- Type
- B6.7 CS4-260C
- Exhaust emissions standard
- NR4
- Nominal output
- 191 kW / 2,000 U/min
- ECO mode output
- 190 kW / 1,700 U/min
- Fuel tank
- 350 l
- Undercarriage
- Version
- Ground contact
- Traction drive crawler tracks
- Track tension adjuster
- Speeds
- Pave speed (up to)
- Travel speed (up to)
- Lubrication of track rollers
-
- Version
- provided with rubber pads
- Ground contact
- 3,060 mm x 300 mm
- Traction drive crawler tracks
- separate hydraulic drives with electronic control
- Track tension adjuster
- spring assembly
- Pave speed (up to)
- 24 m/min
- Travel speed (up to)
- 4.5 km/h
- Lubrication of track rollers
- lifetime
- Hopper capacity
- Width
- Feed height (bottom of material hopper)
- Push-rollers
- Standard
- Positions
-
- Hopper capacity
- 15 t
- Width
- 3,261 mm
- Feed height (bottom of material hopper)
- 508 mm
- Standard
- oscillating
- Positions
- can be adjusted in a forward direction by 75 mm or 150 mm
- Conveyors
- Number
- Version
- Drive
- Speed (up to)
- Augers
- Number
- Version
- Diameter
- Drive
- Rpm (up to)
- Height
- Standard height
- Lubrication
-
- Number
- 2
- Version
- with replaceable feeder bars, direction of conveyor temporarily reversible
- Drive
- separate hydraulic drives, proportional control
- Speed (up to)
- 45 m/min
- Number
- 2
- Version
- with replaceable auger blades, auger rotation reversible
- Diameter
- 420 mm
- Drive
- separate hydraulic drives, proportional control
- Rpm (up to)
- 100 U/min
- Height
- infinitely variable
- Standard height
- hydraulically adjustable by 20 cm
- Lubrication
- centralized lubrication system, electrically-driven grease pump
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
