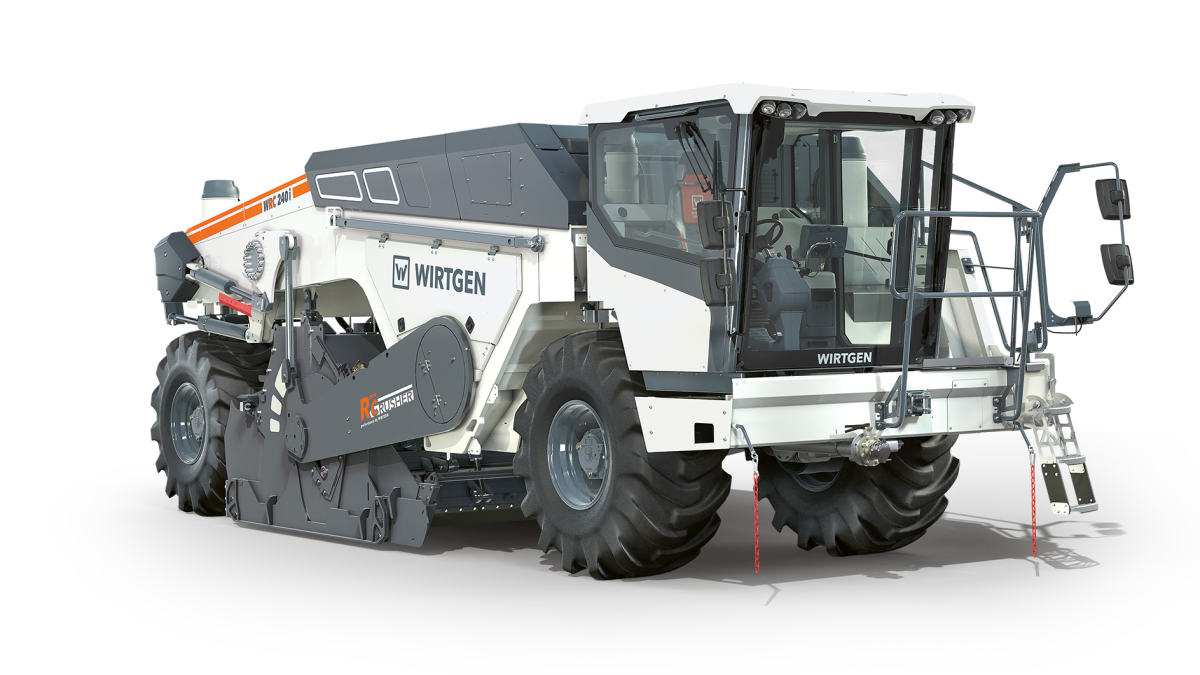

Cold recycler and soil stabiliser WRC 240i

WRC 240i Cold recycler and soil stabiliser

EU Stage 5 / US EPA Tier 4f / CN NR Stage 4

2,320 mm

510

High-performance, in-situ rock crushing and homogeneous mixing

The innovative Rock Crusher with its high-performance crushing, screening, and mixing unit can crush, process, and homogenise hardcore, concrete fragments, cobblestones, and rocks at production rates of up to 600 t/h.
With a working width of 2.32 m and a maximum working depth of 510 mm, the Rock Crusher impresses with its enormous performance for all tasks in soil stabilisation as well as the preparation of various materials.
Thanks to the powerful and sturdy crushing and mixing unit with HT18-tools specially developed for the crushing application, and a variable mixing chamber, the highest efficiency and best mixing results are achieved.
The concept of the Rock Crusher allows the simultaneous mixing of binder (and optionally also water) in one work step and thus, during the crushing process.
For stabilisation of slightly to moderately cohesive soils with a high stone content, the ideal performance range is up to 8,000 m² per day.

Show less

WRC 240i Crushing Process | Animation | EN-GB

WRC 240i Crushing Stage | Animation | EN-GB

Highlights

Perfect ergonomics and operating concept

Ideal all-round vision and a comprehensive camera/monitor system

Outstanding all-terrain capability

Efficient steering system

WPT Recycling

Efficient engine and state-of-the-art diagnostic systems

Heavy-duty crushing and mixing unit

Precise addition of water

Technical specifications

Exhaust emissions category

Operating and travel speed

Working width

Working depth

Operating weight, CE

Ground clearance

Displacement

Maximum power

Lateral inclination, max.

Rated power

Exhaust emissions category: EU Stage 5 / US EPA Tier 4f / CN NR Stage 4

Operating and travel speed: 0 - 210 m/min (0 - 12.6 km/h )

Working width: 2,320 mm

Working depth: 510 mm

Operating weight, CE: 34,300 kg

Ground clearance: 400 mm

Displacement: 14.9 l

Maximum power: 455 kW / 619 HP 1,900 rpm

Lateral inclination, max.: 8 °

Rated power: 455 kW / 619 HP

Downloads

News & Job reports

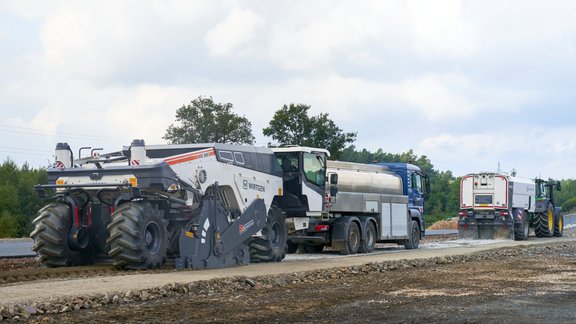

On-site crushing, mixing and screening. The WRC 240i Rock Crusher from Wirtgen was deployed on a 3 km section of road along the Moselle river.

The Rock Crusher in action

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
