Mobile classifying screen MS 23

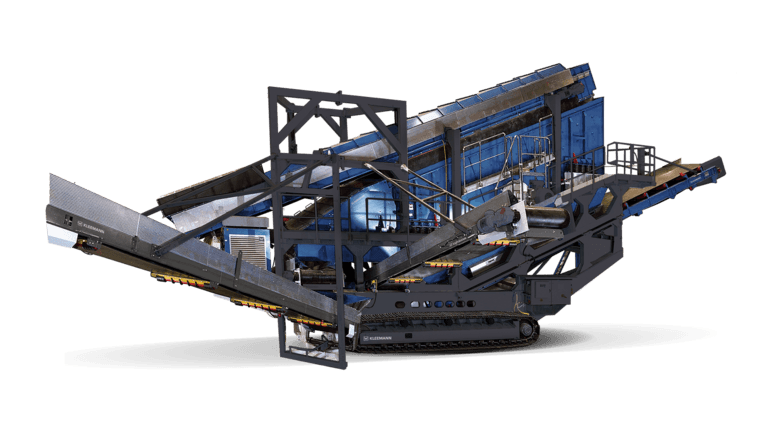

MS 23 Mobile classifying screen

E-DRIVE (Diesel-electric)

160 mm x 100 mm x 60 mm

800

t/h

Properties

Mobile triple-deck screening plant with a compact and heavy steel construction design with integrated track drive and machine layout. Feeding by means of belt conveyor. The diesel-electric driven plant is designed for an output of up to 800 t / h and is suitable for feed material with an edge length of up to 200 mm. Electrical interlocking of all functions, even to downstream and upstream crushing plants, conveyor belts, etc. is possible.

  • Mobile triple-deck screening unit
  • diesel-electric drive
  • Classifying screen for up to 4 final grain sizes
  • Maximum feed size 100 x 160 mm
Show less

Innovative diesel-electric drive concept - impressive performance with the best possible consumption values

The crushing plants are equipped with efficient, powerful diesel-electric drives. They ensure environmentally friendly operation combined with low fuel consumption.

Efficient and powerful diesel-electric drive (A) for low fuel consumption (crusher and all conveyor belts are driven electrically)

External power supply (B) for even more cost-effective use in quarries

Find out more

Solutions for effective dust containment

A relatively high build-up of dust is caused during recycling and also natural stone recycling on account of the process. The main cause of dust emissions here are the material discharge and material transfer positions as well as the crusher unit itself.

Water jets at strategically important points, such as the crusher inlet, crusher discharge conveyor, side discharge conveyors and also the secondary screening unit, are the solution. The majority of the dust is bound together in the process, preventing it from spreading.

Result: reduction in dust volume by up to 50% (depending on the material)

Screen surfaces

The matching screen surfaces for optimum results

Screening media are put to the test in everyday life. Original KLEEMANN GRADE screening media are subject to particularly high quality requirements in order to ensure the permanent and reliable screening of the desired material.

The screening result itself is determined by numerous factors. The most important influencing factors include the grain shape, the moisture content and the feed quantity. For KLEEMANN coarse screening plants, GRADE offers a large selection of GRADE offers a large selection of screening media for the upper and lower deck, which can be equipped according to the application and the desired end result. The individual screen segments can be freely configured. That is flexibility in application!

External power supply

(Dual Power Option)

The MSS EVO systems impress with their powerful diesel-hydraulic drive concept and reduced operating costs. All maintenance-relevant components are easily accessible. Service intervals for changing engine oil and filters are designed to be as long as possible. The machines can be conveniently refueled from both sides if one side is inaccessible due to a stockpile. The machines are also relatively quiet, which benefits both the operator and the environment.

Thanks to the optional electro-hydraulic dual-power drive, electrical operation is possible via an external power supply. This enables emission-free and therefore environmentally friendly work with even lower operating costs.

MS 23 D
Downloads
English (GB) (3.1 MB) Chinese (CN) (3.1 MB)English (US) (3.1 MB)French (FR) (3.0 MB)German (DE) (3.0 MB)Italian (IT) (3.0 MB)Russian (RU) (283.2 kB)Spanish (ES) (3.0 MB)
English (GB) (4.5 MB) Chinese (CN) (4.9 MB)English (US) (4.4 MB)French (FR) (4.5 MB)German (DE) (4.5 MB)Italian (IT) (4.5 MB)Polish (PL) (4.5 MB)Portuguese (BR) (4.5 MB)Russian (RU) (4.5 MB)Spanish (ES) (4.5 MB)Turkish (TR) (4.5 MB)
Portuguese (BR) (3.7 MB)

Technical specifications

Max. feed size
Feeding height
Feed capacity up to approx.
Max. feed size
160 mm x 100 mm x 60 mm
Feeding height
3,400 mm
Feed capacity up to approx.
800 t/h
Width x length
Width x length
1,800 mm x 14,000 mm
Discharge height approx.
Width approx.
Length approx.
Discharge height approx.
5,970 mm
Width approx.
1,800 mm
Length approx.
14,000 mm
Discharge height approx.
Width x length
Discharge height approx.
4,390 mm
Width x length
800 mm x 10,000 mm
Discharge height approx.
Width x length
Discharge height approx.
4,390 mm
Width x length
800 mm x 10,000 mm
Discharge height approx.
Width x length
Discharge height approx.
4,390 mm
Width x length
1,000 mm x 10,000 mm
Discharge height max. approx.
Width x length
Discharge height max. approx.
5,970 mm
Width x length
1,800 mm x 14,000 mm
Drive concept
Generator
Power pack manufacturer
Power supply unit output
Drive concept
E-DRIVE (Diesel-electric)
Generator
250 kVA
Power pack manufacturer
Scania
Power supply unit output
226 kW
Transport weight of basic plant approx.
Transport weight of basic plant approx.
93,000 kg
Model
Upper deck (W x L)
Model
Triple-deck classifying screen
Upper deck (W x L)
2,300 mm x 8,000 mm
Contact us for quotes and prices!

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
