NEW

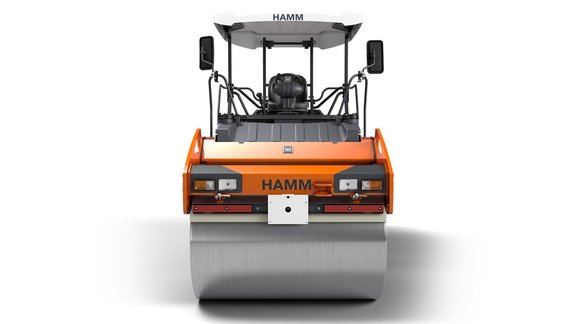

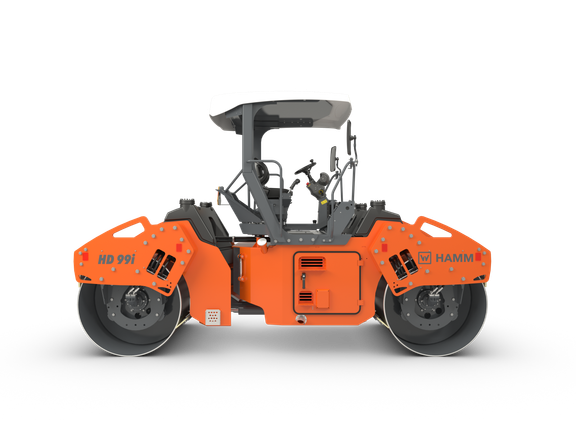

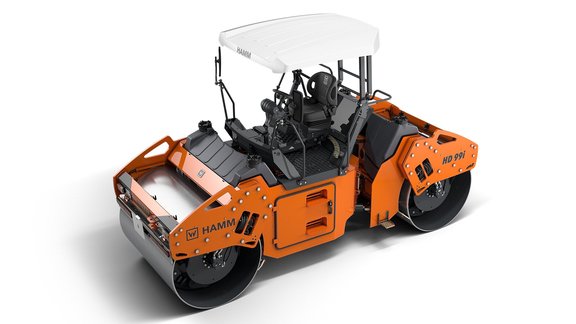

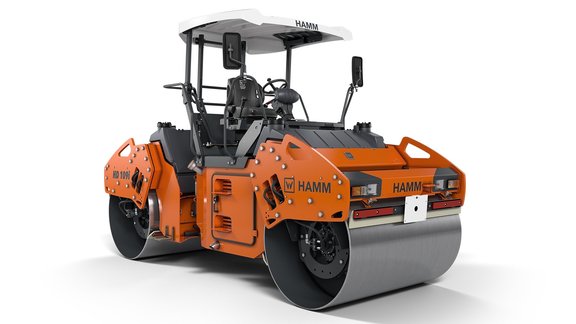

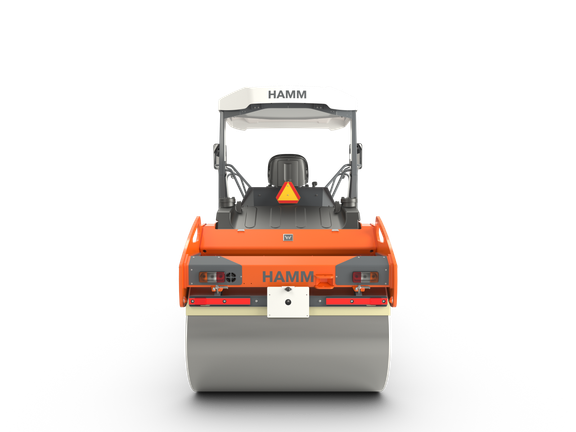

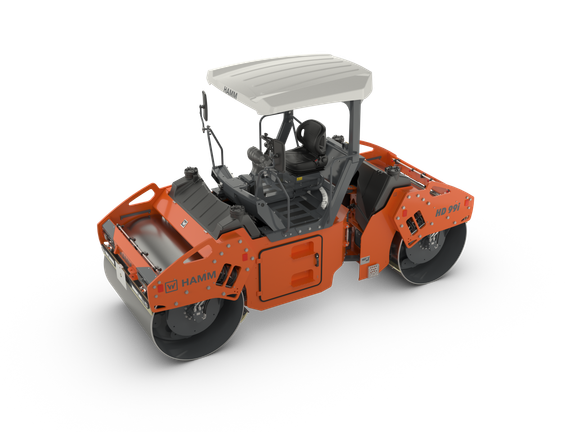

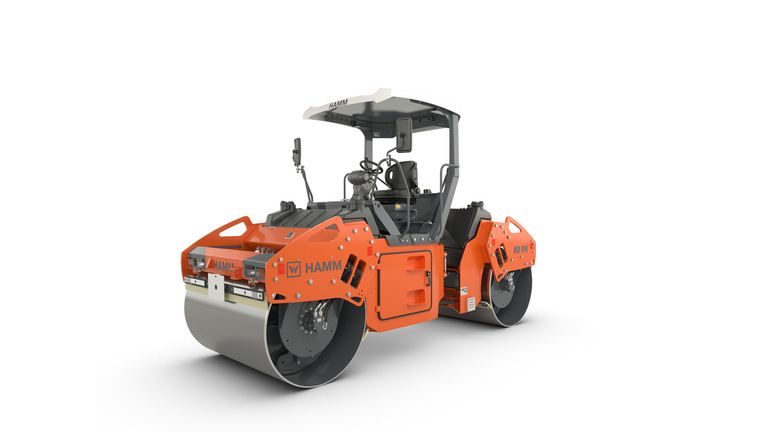

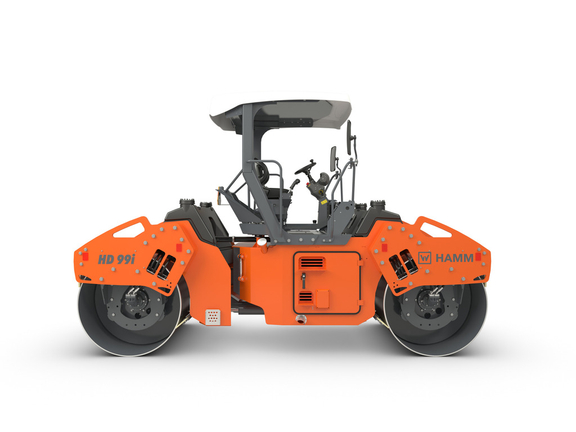

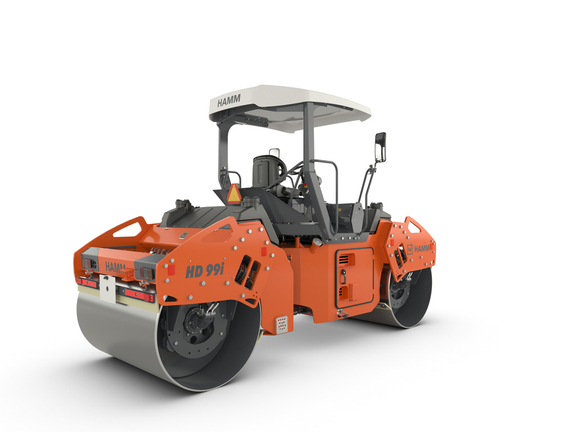

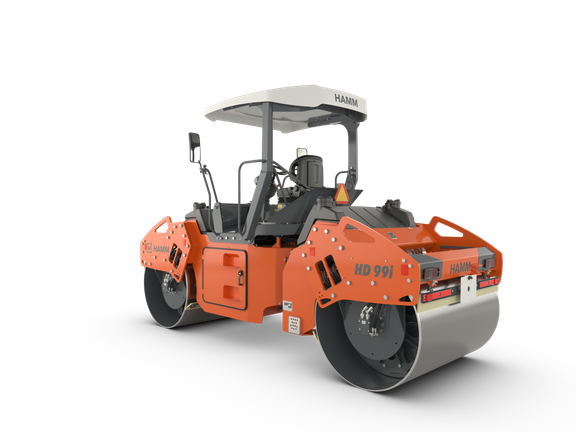

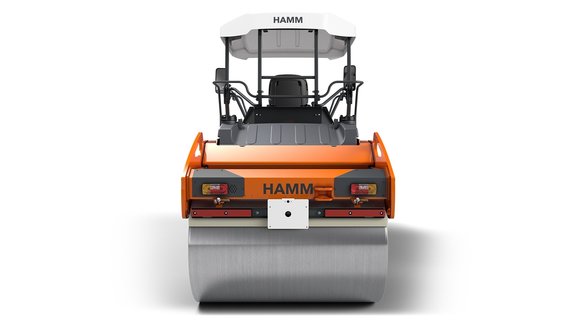

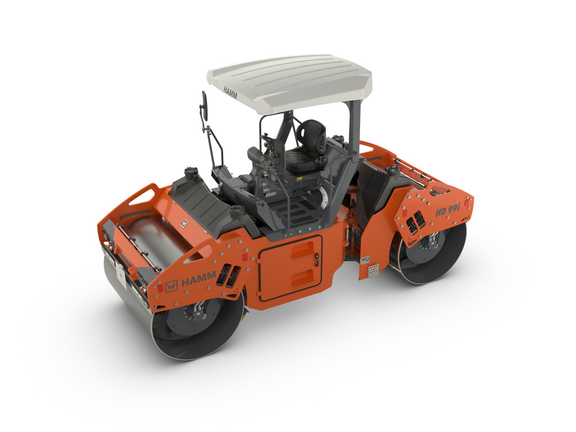

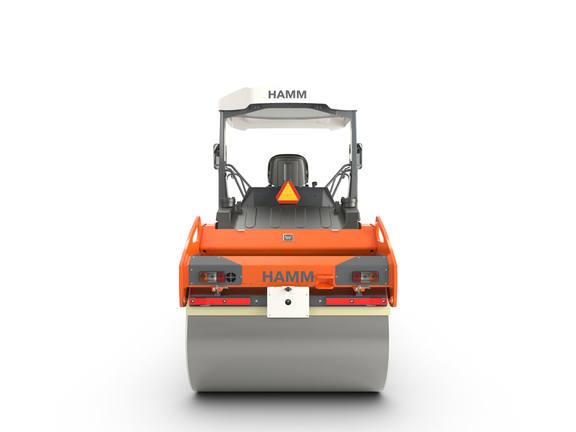

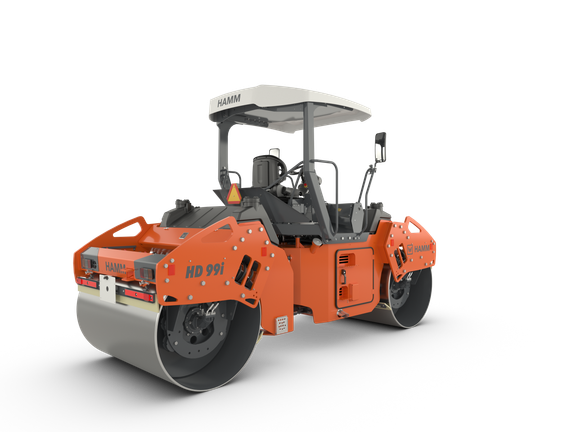

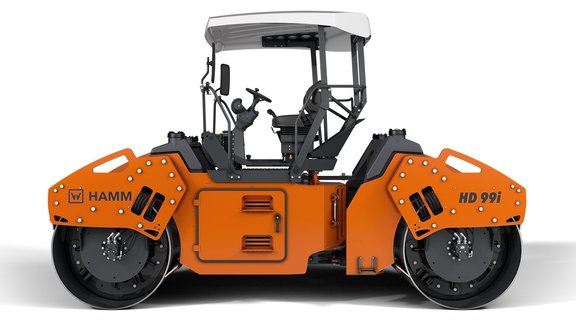

HD 99i VV Tandem roller with two vibrating roller drums
9,070 kg
1,680 mm
CEV IV
3-point articulation
3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HD
- Name
- HD 99i VV
- Description
- Tandem roller with two vibrating roller drums
- Exhaust emissions category
- CEV IV
- Series
- H306
- Empty weight without cab, without ROPS
- Operating weight with sunroof
- Static linear load, front
- Axle load, rear
- Axle load, front
-
- Empty weight without cab, without ROPS
- 8,335 kg
- Operating weight with sunroof
- 9,070 kg
- Static linear load, front
- 27.4 kg/cm
- Axle load, rear
- 4,460 kg
- Axle load, front
- 4,610 kg
- Total width
- Total length
- Maximum working width
- Centre distance
- Ground clearance, centre
- Turning radius, inside
- Total height
-
- Total width
- 1,828 mm
- Total length
- 4,810 mm
- Maximum working width
- 1,780 mm
- Centre distance
- 3,510 mm
- Ground clearance, centre
- 343 mm
- Turning radius, inside
- 4,151 mm
- Total height
- 3,027 mm
- Drum type, front
- Drum type, rear
- Track offset, left
- Drum thickness, rear
- Drum thickness, front
- Drum diameter, rear
- Drum diameter, front
- Drum width, rear
- Drum width, front
-
- Drum type, front
- Smooth
- Drum type, rear
- Smooth
- Track offset, left
- 100 mm
- Drum thickness, rear
- 17 mm
- Drum thickness, front
- 17 mm
- Drum diameter, rear
- 1,200 mm
- Drum diameter, front
- 1,200 mm
- Drum width, rear
- 1,680 mm
- Drum width, front
- 1,680 mm
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1349, rpm
- Power SAE J1349, HP
- Power SAE J1349, kW
-
- Manufacturer
- JOHN DEERE
- Model
- EWX 2.9
- Cylinders, quantity
- 3
- Exhaust emission standard
- CEV IV
- Power ISO 14396, rpm
- 2,200 rpm
- Power ISO 14396, HP
- 75 HP
- Power ISO 14396, kW
- 55 kW
- Power SAE J1349, rpm
- 2,200 rpm
- Power SAE J1349, HP
- 74 hp
- Power SAE J1349, kW
- 55 kW
- Speed, transport gear
- Climbing ability, without vibration
- Speed, working gear, I
-
- Speed, transport gear
- 0-13,8
- Climbing ability, without vibration
- 40 %
- Speed, working gear, I
- 0-7
- Centrifugal force, rear, II
- Centrifugal force, rear, I
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, rear, II
- Vibration frequency, rear, I
- Vibration frequency, front, II
- Vibration frequency, front, I
- Amplitude, rear, II
- Amplitude, rear, I
-
- Centrifugal force, rear, II
- 60 kN
- Centrifugal force, rear, I
- 75 kN
- Centrifugal force, front, II
- 60 kN
- Centrifugal force, front, I
- 75 kN
- Amplitude, front, II
- 0.37 mm
- Amplitude, front, I
- 0.66 mm
- Vibration frequency, rear, II
- 50 Hz
- Vibration frequency, rear, I
- 42 Hz
- Vibration frequency, front, II
- 50 Hz
- Vibration frequency, front, I
- 42 Hz
- Amplitude, rear, II
- 0.37 mm
- Amplitude, rear, I
- 0.66 mm
- Steering, type
- Water sprinkling, type
-
- Steering, type
- Articulated steering
- Water sprinkling, type
- Pressure
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Fuel tank, capacity
- Water tank, capacity
-
- Fuel tank, capacity
- 156 l
- Water tank, capacity
- 700 l
