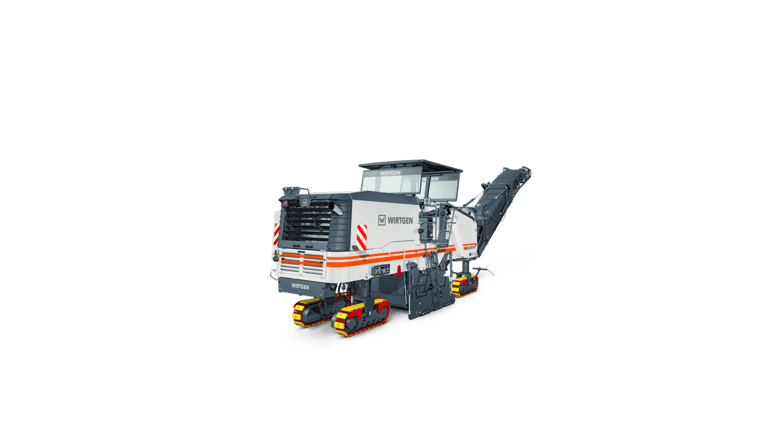

Large milling machine W 200 XP

W 200 XP Large milling machine

EU Stage 3a/US EPA Tier 3, CN Stage 3

2,000

mm

330

mm

High Economy and Performance in Any Application

  • Two-metre front loader with a proven machine concept for efficient milling operations.
  • The cold milling machine impresses with high milling performance and professional supplementary equipment.
  • A particularly simple and reliable operating concept enables high daily production rates.
  • Optimised weight and advanced machine technology ensure extreme versatility in operation.
  • Low consumption of diesel fuel and picks make this cold milling machine particularly cost-efficient.
Show less

Cold milling with large milling machines

Large milling machines are designed with a milling drum arranged in the centre of the machine and a forward-loading two-stage conveyor system. They are therefore called front loaders. The powerful, slewing and height-adjustable discharge conveyor enables large trucks to be loaded quickly and with maximum flexibility. Front loaders are usually equipped with a walk-through operator‘s platform offering a high level of operator comfort. Alternatively, they are supplied with a hydraulically moving and swivelling operator’s cabin. Numerous intelligent automated features support the operator in performing his job. Front loaders are equipped with four hydraulically steerable and height-adjustable track units.

Learn more

WIRTGEN cutting technology

Results of high quality are the main goal of every construction project. This applies to road rehabilitation using cold milling machines and cold recyclers as well as to soil stabilization and the extraction of useful minerals using surface miners. Optimum interaction between the milling drum, toolholder and pick is essential for precise, efficient paving removal.

WIRTGEN is a market leader in cutting technology and offers customers perfectly matched, high-performance cutting systems. WIRTGEN is also constantly developing its cutting technology components further. Such further developments are largely based on practical experience and feedback from our customers.

Learn more

WIRTGEN levelling technology

WIRTGEN levelling technology controls height, depth and slope to achieve results of maximum precision. In the process, the system continuously reconciles the actual values with a preselected target value, correcting any deviations by means of proportional control. State-of-the-art machine engineering ensures levelling results of consistently high quality while at the same time relieving the machine operator of a significant part of his workload.

WIRTGEN offers customers reliable hardware and software developed in-house. Different systems are used depending on the construction project to be completed and local conditions on site.

Learn more

Control technology

WIRTGEN machines are fitted with a machine control system of the highest quality, in which the large proportion of software developed in-house plays the decisive role. WIRTGEN puts a special focus on continuous improvement, which has the added effect of significantly increasing the operational reliability of the machines. In addition, many years of experience in software and hardware development allow for higher and more flexible machine functionality in terms of applications and meeting specific customer requirements.

Learn more

Technical specifications

Exhaust emissions category
Operating weight, CE
Milling width
Milling depth max.
Displacement
Max. travel and milling speed
Maximum power
Rated power
Max. milling speed
Exhaust emissions category
EU Stage 3a/US EPA Tier 3, CN Stage 3
Operating weight, CE
29,160 kg
Milling width
2,000 mm
Milling depth max.
330 mm
Displacement
15 l
Max. travel and milling speed
0 - 85 m/min (0 - 5 km/h )
Maximum power
455 kW / 619 HP
Rated power
447 kW / 608 HP 2,100 rpm
Max. milling speed
0 - 85 m/min

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
