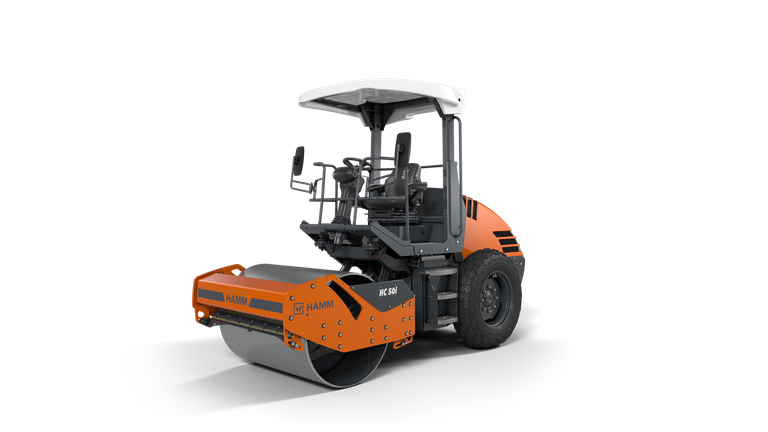

Compactor with smooth drum HC 50i

HC 50i Compactor with smooth drum

53.9 in

11,455 lbs

EU Stage IIIB / EPA Tier 4

  • 3-point articulation for excellent traction and cross-country mobility
  • High climbing ability
  • Excellent view of machine and construction site
  • Compact dimensions
  • Simple, intuitive and language-neutral control
Show less

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Learn more

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Learn more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HC CompactLine
Name
HC 50i
Description
Compactor with smooth drum
Exhaust emissions category
EU Stage IIIB / EPA Tier 4
Series
H288
Static linear load, front
Operating weight with ROPS
Empty weight without cab, without ROPS
Operating weight with cab
Axle load, rear
Axle load, front
Static linear load, front
111.6 lbs/in
Operating weight with ROPS
10,937 lbs
Empty weight without cab, without ROPS
10,352 lbs
Operating weight with cab
11,455 lbs
Axle load, rear
5,435 lbs
Axle load, front
6,020 lbs
Total length
Total width with cab
Maximum working width
Total height with cab
Center distance
Ground clearance, center
Turning radius, inside
Total height with ROPS
Slope angle, rear
Slope angle, front
Total length
159.1 in
Total width with cab
79.4 in
Maximum working width
53.9 in
Total height with cab
111.7 in
Center distance
85.4 in
Ground clearance, center
10.9 in
Turning radius, inside
132.9 in
Total height with ROPS
111.6 in
Slope angle, rear
35 °
Slope angle, front
44 °
Drum type, front
Drum diameter, front
Drum width, front
Drum thickness, front
Drum type, front
Smooth
Drum diameter, front
39.4 in
Drum width, front
53.9 in
Drum thickness, front
0.8 in
Number of tires, rear
Tire size, rear
Width over tires, rear
Number of tires, rear
2
Tire size, rear
AW 12.4-24 8 PR
Width over tires, rear
59.1 in
Manufacturer
Model
Cylinders, quantity
Exhaust emission standard
Exhaust gas after-treatment
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1349, rpm
Power SAE J1349, HP
Power SAE J1349, kW
Manufacturer
DEUTZ
Model
TD 2.9 L4
Cylinders, quantity
4
Exhaust emission standard
EU Stage IIIB / EPA Tier 4
Exhaust gas after-treatment
DOC
Power ISO 14396, rpm
2,200 rpm
Power ISO 14396, HP
73.4 HP
Power ISO 14396, kW
54 kW
Power SAE J1349, rpm
2,200 rpm
Power SAE J1349, HP
72.4 hp
Power SAE J1349, kW
54 kW
Speed, transport gear
Climbing ability, without vibration
Speed, working gear, I
Speed, transport gear
0,0-6,6
Climbing ability, without vibration
60 %
Speed, working gear, I
0,0-3,7
Vibration frequency, front
Amplitude, front
Centrifugal force, front
Vibration frequency, front
1,800 VPM
Amplitude, front
0.062 in
Centrifugal force, front
15,525 lbs
Steering, type
Steering, type
Articulated steering
Fuel tank, capacity
Fuel tank, capacity
32.5 gal
Sound power level L(WA), guaranteed
Sound power level L(WA), guaranteed
105

Equipment

  • 12 V sockets (2-fold)
  • Maintenance points, central on one machine side
  • Vibration-isolated driver's platform
  • Hose protection on the front vehicle
  • Large slope angles at front and rear
  • Cup holder
  • Spring-mounted driver's seat with armrest and seat belt
  • ECO mode
  • Fixture for cool box
  • Dashboard with displays, indicator lights and switches
  • Anti-slip control
  • Storage compartments
  • Storage compartment below the driver’s seat
  • Storage compartment behind the driver’s seat
  • 3-point articulation
  • Two large exterior rear-view mirrors
Show less

Optional equipment

  • ROPS cab with heating and air-conditioning system (FOPS, level I)
  • Battery isolation switch
  • Working spotlights
  • JDLink
  • Back-up alarm
  • Camera system
  • Automatic engine stop
  • Speedometer
  • Dozer blade
  • Protective roof
  • Bluetooth interface for Smart Doc
  • Seat belt monitoring device
Show less
Show less
