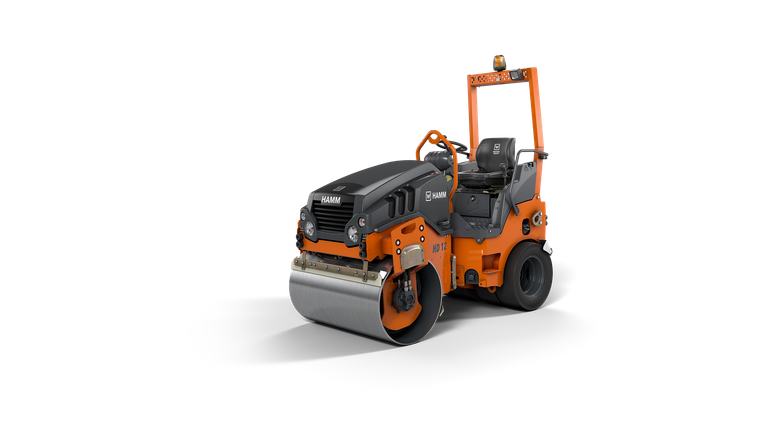

HD 12 VT Tandem roller with vibrating roller drum and set of wheels
47.2 in
5,722 lbs
EU Stage V / EPA Tier 4
Highlights
Show lessThree-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HD CompactLine
- Name
- HD 12 VT
- Description
- Tandem roller with vibrating roller drum and set of wheels
- Exhaust emissions category
- EU Stage V / EPA Tier 4
- Series
- H230
- Static linear load, front
- Operating weight with ROPS
-
- Static linear load, front
- 62.7 lbs/in
- Operating weight with ROPS
- 5,722 lbs
- Total width
- Total length
- Maximum working width
- Center distance
- Ground clearance, center
- Turning radius, inside
- Total height with ROPS
- Curb clearance, rear
- Curb clearance, left
-
- Total width
- 51.6 in
- Total length
- 99.6 in
- Maximum working width
- 48 in
- Center distance
- 66.9 in
- Ground clearance, center
- 11 in
- Turning radius, inside
- 93.3 in
- Total height with ROPS
- 97.4 in
- Curb clearance, rear
- 22.4 in
- Curb clearance, left
- 22.4 in
- Drum type, front
- Drum diameter, front
- Drum width, front
- Drum thickness, front
- Track offset, right
- Track offset, left
-
- Drum type, front
- Smooth/non-split
- Drum diameter, front
- 28.3 in
- Drum width, front
- 47.2 in
- Drum thickness, front
- 0.6 in
- Track offset, right
- 2 in
- Track offset, left
- 0 in
- Number of tires, rear
- Tire size, rear
- Width over tires, rear
-
- Number of tires, rear
- 4
- Tire size, rear
- 9,5/65-15
- Width over tires, rear
- 44.9 in
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Exhaust gas after-treatment
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
-
- Manufacturer
- KUBOTA
- Model
- D1703-M-DI-E4B
- Cylinders, quantity
- 3
- Exhaust emission standard
- EU Stage V / EPA Tier 4
- Exhaust gas after-treatment
- -
- Power ISO 14396, rpm
- 2,200 rpm
- Power ISO 14396, HP
- 24.8 HP
- Power ISO 14396, kW
- 18.2 kW
- Speed, infinitely variable
- Climbing ability, without vibration
- Climbing ability, with vibration
-
- Speed, infinitely variable
- 6.0
- Climbing ability, without vibration
- 40 %
- Climbing ability, with vibration
- 30
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, front, II
- Vibration frequency, front, I
-
- Centrifugal force, front, II
- 5,175 lbs
- Centrifugal force, front, I
- 8,550 lbs
- Amplitude, front, II
- 0.018 in
- Amplitude, front, I
- 0.018 in
- Vibration frequency, front, II
- 3,060 VPM
- Vibration frequency, front, I
- 3,900 VPM
- Steering, type
- Water sprinkling, type
- Oscillation angle +/-
-
- Steering, type
- Articulated steering
- Water sprinkling, type
- Pressure
- Oscillation angle +/-
- 8 °
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Fuel tank, capacity
- Water tank, capacity
- Additive tank, capacity
-
- Fuel tank, capacity
- 11.1 gal
- Water tank, capacity
- 47.6 gal
- Additive tank, capacity
- 4.8 gal
- Acoustic power LW(A), measured
- Sound power level L(WA), guaranteed
-
- Acoustic power LW(A), measured
- 104 db(A)
- Sound power level L(WA), guaranteed
- 106
