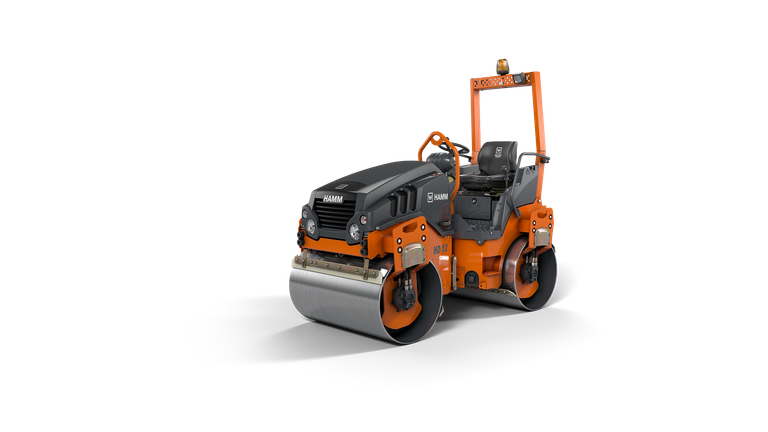

HD 12 VV Tandem roller with two vibrating roller drums
47.2 in
5,942 lbs
EU Stage V / EPA Tier 4
Highlights
Show lessThree-point articulation
Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HD CompactLine
- Name
- HD 12 VV
- Description
- Tandem roller with two vibrating roller drums
- Exhaust emissions category
- EU Stage V / EPA Tier 4
- Series
- H230
- Operating weight with ROPS
- Static linear load, rear
- Static linear load, front
-
- Operating weight with ROPS
- 5,942 lbs
- Static linear load, rear
- 63.3
- Static linear load, front
- 62.2 lbs/in
- Total width
- Total length
- Maximum working width
- Center distance
- Ground clearance, center
- Turning radius, inside
- Total height with ROPS
- Curb clearance, rear
- Curb clearance, left
-
- Total width
- 51.6 in
- Total length
- 99.6 in
- Maximum working width
- 49.2 in
- Center distance
- 66.9 in
- Ground clearance, center
- 11 in
- Turning radius, inside
- 93.3 in
- Total height with ROPS
- 97.4 in
- Curb clearance, rear
- 22.4 in
- Curb clearance, left
- 22.4 in
- Drum type, front
- Drum type, rear
- Track offset, right
- Track offset, left
- Drum thickness, rear
- Drum thickness, front
- Drum diameter, rear
- Drum diameter, front
- Drum width, rear
- Drum width, front
-
- Drum type, front
- Smooth/non-split
- Drum type, rear
- Smooth/non-split
- Track offset, right
- 2 in
- Track offset, left
- 0 in
- Drum thickness, rear
- 0.6 in
- Drum thickness, front
- 0.6 in
- Drum diameter, rear
- 28.3 in
- Drum diameter, front
- 28.3 in
- Drum width, rear
- 47.2 in
- Drum width, front
- 47.2 in
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Exhaust gas after-treatment
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
-
- Manufacturer
- KUBOTA
- Model
- D1703-M-DI-E4B
- Cylinders, quantity
- 3
- Exhaust emission standard
- EU Stage V / EPA Tier 4
- Exhaust gas after-treatment
- -
- Power ISO 14396, rpm
- 2,200 rpm
- Power ISO 14396, HP
- 24.8 HP
- Power ISO 14396, kW
- 18.2 kW
- Speed, infinitely variable
- Climbing ability, without vibration
- Climbing ability, with vibration
-
- Speed, infinitely variable
- 6.3
- Climbing ability, without vibration
- 40 %
- Climbing ability, with vibration
- 30
- Centrifugal force, rear, II
- Centrifugal force, rear, I
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, rear, II
- Vibration frequency, rear, I
- Vibration frequency, front, II
- Vibration frequency, front, I
- Amplitude, rear, II
- Amplitude, rear, I
-
- Centrifugal force, rear, II
- 5,175 lbs
- Centrifugal force, rear, I
- 8,550 lbs
- Centrifugal force, front, II
- 5,175 lbs
- Centrifugal force, front, I
- 8,550 lbs
- Amplitude, front, II
- 0.018 in
- Amplitude, front, I
- 0.018 in
- Vibration frequency, rear, II
- 3,060 VPM
- Vibration frequency, rear, I
- 3,900 VPM
- Vibration frequency, front, II
- 3,060 VPM
- Vibration frequency, front, I
- 3,900 VPM
- Amplitude, rear, II
- 0.018 in
- Amplitude, rear, I
- 0.018 in
- Steering, type
- Water sprinkling, type
- Oscillation angle +/-
-
- Steering, type
- Articulated steering
- Water sprinkling, type
- Pressure
- Oscillation angle +/-
- 8 °
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Fuel tank, capacity
- Water tank, capacity
-
- Fuel tank, capacity
- 11.1 gal
- Water tank, capacity
- 47.6 gal
- Acoustic power LW(A), measured
- Sound power level L(WA), guaranteed
-
- Acoustic power LW(A), measured
- 104 db(A)
- Sound power level L(WA), guaranteed
- 106
