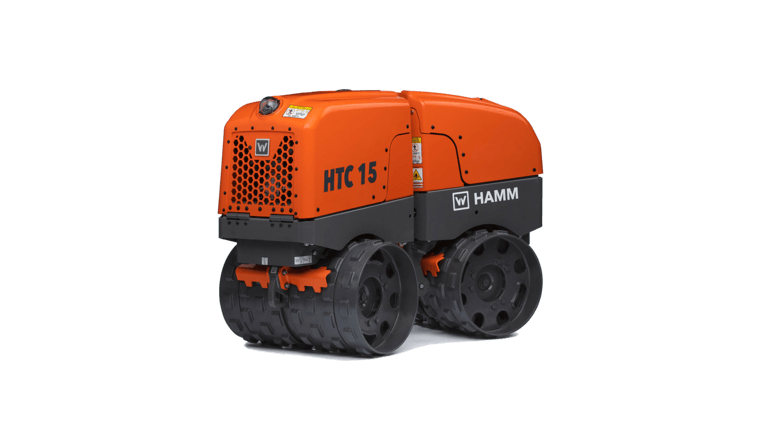

HTC 15 Trench roller with two vibration padfoot drums
32.3 in
EPA Tier 4
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HTC
- Name
- HTC 15
- Description
- Trench roller with two vibration padfoot drums
- Exhaust emissions category
- EPA Tier 4
- Series
- H950
- Static linear load, rear
- Static linear load, front
- Axle load, rear
- Axle load, front
-
- Static linear load, rear
- 49.8
- Static linear load, front
- 49.8 lbs/in
- Axle load, rear
- 1,615 lbs
- Axle load, front
- 1,615 lbs
- Total width
- Total length
- Maximum working width
- Center distance
- Turning radius, inside
-
- Total width
- 32.3 in
- Total length
- 71.9 in
- Maximum working width
- 32.3 in
- Center distance
- 39.4 in
- Turning radius, inside
- 63 in
- Drum type, front
- Drum type, rear
- Drum thickness, front
- Drum diameter, rear
- Drum diameter, front
- Drum width, rear
- Drum width, front
-
- Drum type, front
- Padfoot
- Drum type, rear
- Padfoot
- Drum thickness, front
- 0.4 in
- Drum diameter, rear
- 21.7 in
- Drum diameter, front
- 21.7 in
- Drum width, rear
- 32.3 in
- Drum width, front
- 32.3 in
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Exhaust gas after-treatment
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1349, rpm
- Power SAE J1349, HP
- Power SAE J1349, kW
-
- Manufacturer
- KOHLER
- Model
- KDW 1003
- Cylinders, quantity
- 3
- Exhaust emission standard
- EPA Tier 4
- Exhaust gas after-treatment
- -
- Power ISO 14396, rpm
- 3,000 rpm
- Power ISO 14396, HP
- 20.07 HP
- Power ISO 14396, kW
- 14.8 kW
- Power SAE J1349, rpm
- 3,000 rpm
- Power SAE J1349, HP
- 19.8 hp
- Power SAE J1349, kW
- 14.8 kW
- Climbing ability, without vibration
-
- Climbing ability, without vibration
- 50 %
- Vibration frequency, front
- Centrifugal force, rear, II
- Centrifugal force, rear, I
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Amplitude, rear, II
- Amplitude, rear, I
- Vibration frequency, rear
-
- Vibration frequency, front
- 2,520 VPM
- Centrifugal force, rear, II
- 15,390 lbs
- Centrifugal force, rear, I
- 7,695 lbs
- Centrifugal force, front, II
- 15,390 lbs
- Centrifugal force, front, I
- 7,695 lbs
- Amplitude, front, II
- 0.028 in
- Amplitude, front, I
- 0.055 in
- Amplitude, rear, II
- 0.028 in
- Amplitude, rear, I
- 0.055 in
- Vibration frequency, rear
- 2,520 VPM
- Fuel tank, capacity
-
- Fuel tank, capacity
- 6.3 gal
- Acoustic power LW(A), measured
- Sound power level L(WA), guaranteed
-
- Acoustic power LW(A), measured
- 105 db(A)
- Sound power level L(WA), guaranteed
- 109
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
