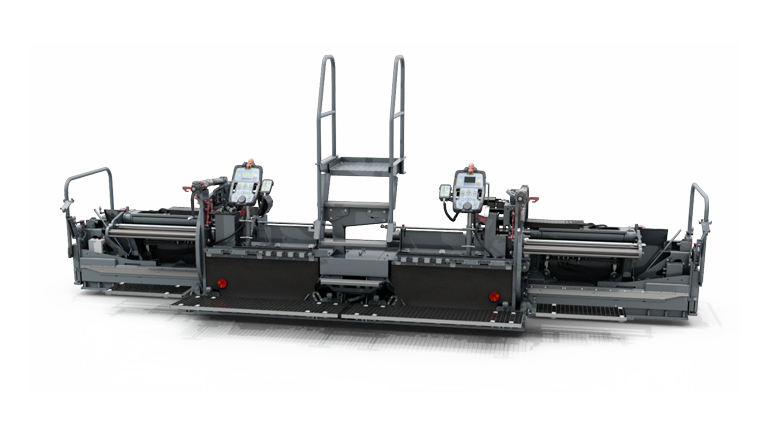

VF 600 Extending Screed
Extending screed with front-mounted extensions for 10-foot pavers
The VF 600 Extending Screed has been specially developed for the SUPER 2000-3i and SUPER 2003-3i pavers of the Highway Class, which feature high paving speeds and different paving widths. The screed‘s sturdy, smoothly sliding telescoping system guarantees precise paving across all widths. In addition, the screed is suitable for a wide range of paving profiles, including crowns and cross slopes.
Show less_US_Machine_View.JPG)
_US_Machine_View.JPG)
_US_Machine_View.JPG)
_US_Machine_View.JPG)
_US_Machine_View.JPG)
Screed telescoping system
VÖGELE screeds are renowned in the industry worldwide for their high precision and robustness. The VF 500 and 600 screeds are designed specifically for the North American market, and provide one key feature above all: speed. Both consistently meet the demands of paving at high speed and across widely varying pave widths. The telescopic guidance system, for example, enables very smooth and precise width adjustment.
Electric screed heating
VÖGELE has put its faith in electric screed heating for decades. This extensive experience, in combination with continuous further development, means that VÖGELE screeds are now brought to temperature quickly and evenly.
Manufacturing Technology
VÖGELE screeds feature leading-edge technology made possible by state-of-the-art production processes. The first of these processes, the precision cutting to shape of extremely wear-resistant sheet steel, takes place on laser cutting stations. Robots which operate continuously to a consistently high standard ensure long-lasting, stable welds.
Technical specifications
- Basic width
- Hydraulically adjustable
- Minimum paving width
- Maximum paving width
- Length
- Cut-off shoes
-
- Basic width
- 10 ft
- Hydraulically adjustable
- 10 ft to 19 ft 6 in
- Minimum paving width
- 6 ft
- Maximum paving width
- 25 ft 5 in
- Length
-
Bolt-on extensions 12 in 24 in
- Cut-off shoes
- 4 x 1 ft
- Version
- Crown adjustment
- Slope, extending units (max.)
- Berms
-
- Version
- hydraulic
- Crown adjustment
- -2 % to 5 %
- Slope, extending units (max.)
- 10 %
- Berms
- 12 in, 18 in, 24 in
- Compacting systems
- Vibrators (V)
- Version
- Frequency (max.)
-
- Compacting systems
- V
- Version
- eccentric vibrators
- Frequency (max.)
- 50 Hz
- Heating rods
- Output generation
- Control
-
- Heating rods
- on screed plates
- Output generation
- three-phase AC generator
- Control
- fully automatic, thermostat-controlled
- Width (without end gate)
- Weight of basic screed
- Depth (in transport position)
-
- Width (without end gate)
- 10 ft 6 in
- Weight of basic screed
-
Screed Weight V 7,390 lbs
- Depth (in transport position)
-
Screed Depth VF 600 4 ft
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
