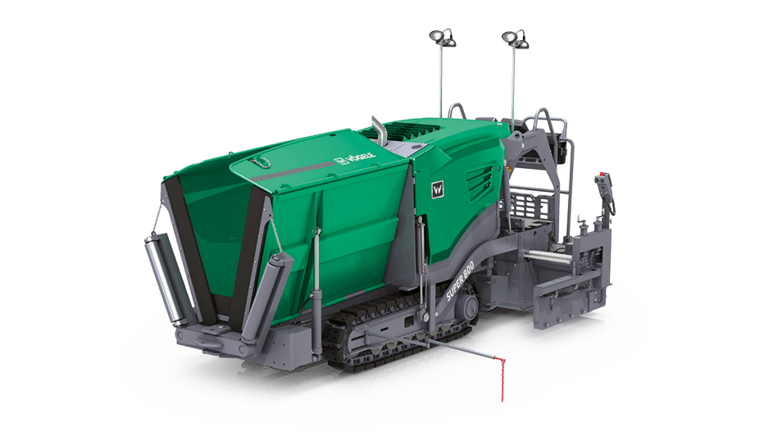

SUPER 800 Tracked paver Mini Class
m
m
t/h
The Mini Class paver with the maximum range of applications
The SUPER 800 combined with the AB 220 Extending Screed in TV version achieves excellent compacting results exceptional for a paver in its class. The SUPER 800 easily handles most varied jobs including construction and reinstatement of farm tracks, small roads, footpaths or cycle paths.
Show less
.jpg)
ErgoBasic
ErgoBasic was designed on the back of the tried and tested ErgoPlus operating system for our Premium Line pavers and tailored specifically to meet the demands and needs of VÖGELE Classic Line users.
The goal was to develop an operating system which can be operated just as quickly, accurately and intuitively as the ErgoPlus 3 system on the “Dash 3” machines. That makes VÖGELE the only manufacturer to offer a standardized operating concept for all paver classes.
Niveltronic Basic
VÖGELE has also developed the Niveltronic Basic System for Automated Grade and Slope Control to match the ErgoBasic operating concept. It is completely integrated in the machine control system and therefore perfectly adapted to the paver model concerned. Another outstanding aspect of Niveltronic Basic is its particularly simple and intuitive handling, a feature which makes it easy even for less experienced operators to use the system correctly. This creates ideal conditions for the Classic Line pavers to work true to line and level on any base.
Technical specifications
- Engine
- Version
- Manufacturer
- Type
- Exhaust emissions standard
- Nominal output
- ECO mode output
- Emission data
- Guaranteed sound power level LWA
- Sound pressure level LPA at the operator’s stations (≤)
- Fuel tank
-
- Version
- liquid-cooled 4-cylinder diesel engine
- Manufacturer
- Deutz
- Type
- TD 2.9 L4
- Exhaust emissions standard
- European exhaust emissions standard 3a, US standard EPA Tier 3
- Nominal output
- 54 kW / 2,200 U/min
- ECO mode output
- 49 kW / 1,800 U/min
- Guaranteed sound power level LWA
- 104 db(A)
- Sound pressure level LPA at the operator’s stations (≤)
- 80 db(A)
- Fuel tank
- 80 l
- Undercarriage
- Version
- Ground contact
- Traction drive crawler tracks
- Lubrication of track rollers
- Track tension adjuster
- Speeds
- Pave speed (up to)
- Travel speed (up to)
-
- Version
- provided with rubber pads
- Ground contact
- 1,500 mm x 180 mm
- Traction drive crawler tracks
- separate hydraulic drives with electronic control
- Lubrication of track rollers
- lifetime
- Track tension adjuster
- spring assembly
- Pave speed (up to)
- 30 m/min
- Travel speed (up to)
- 3,6 km/h
- Hopper capacity
- Width
- Feed height (bottom of material hopper)
- Push-rollers
- Standard
- Positions
-
- Hopper capacity
- 5,8 t
- Width
- 2 900 mm
- Feed height (bottom of material hopper)
- 590 mm
- Standard
- oscillating, fold up with hopper sides
- Positions
- can be adjusted in a forward direction by 100 mm and left by 500 mm
- Conveyors
- Number
- Version
- Drive
- Speed (up to)
- Augers
- Number
- Version
- Diameter
- Drive
- Rpm (up to)
- Height
- Standard height
-
- Number
- 1
- Version
- with replaceable feeder bars, direction of conveyor temporarily reversible
- Drive
- separate hydraulic drives, proportional control
- Speed (up to)
- 31 m/min
- Number
- 2
- Version
- auger rotation reversible, mounted overhung
- Diameter
- 300 mm
- Drive
- separate hydraulic drives, proportional control
- Rpm (up to)
- 70 U/min
- Height
- infinitely variable
- Standard height
- mechanically adjustable by 10 cm
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
