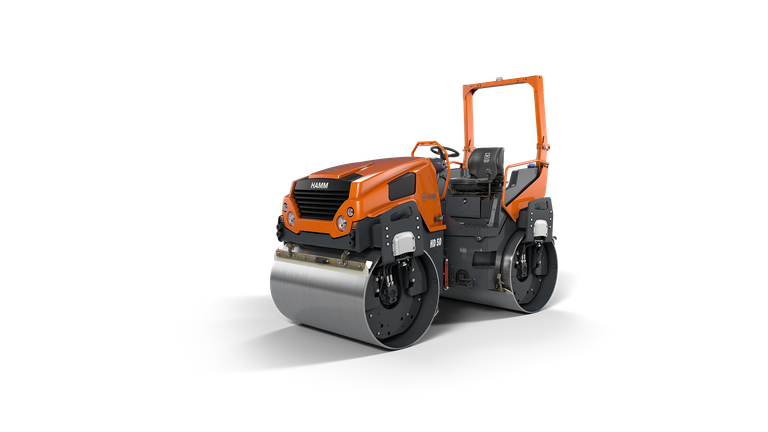

HD 50 VV Tandem roller with two vibrating roller drums
4,420 kg
1,380 mm
MEE IV
3-point articulation
3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HD CompactLine
- Name
- HD 50 VV
- Description
- Tandem roller with two vibrating roller drums
- Exhaust emissions category
- MEE IV
- Series
- H295
- Operating weight with ROPS
- Empty weight without cab, without ROPS
- Static linear load, rear
- Static linear load, front
- Axle load, rear
- Axle load, front
-
- Operating weight with ROPS
- 4,420 kg
- Empty weight without cab, without ROPS
- 4,080 kg
- Static linear load, rear
- 16.6
- Static linear load, front
- 15.4 kg/cm
- Axle load, rear
- 2,290 kg
- Axle load, front
- 2,130 kg
- Total width
- Total length
- Maximum working width
- Centre distance
- Ground clearance, centre
- Turning radius, inside
- Total height with ROPS
-
- Total width
- 1,506 mm
- Total length
- 2,896 mm
- Maximum working width
- 1,430 mm
- Centre distance
- 1,950 mm
- Ground clearance, centre
- 302 mm
- Turning radius, inside
- 2,594 mm
- Total height with ROPS
- 2,596 mm
- Drum type, front
- Drum type, rear
- Track offset, right
- Track offset, left
- Drum thickness, rear
- Drum thickness, front
- Drum diameter, rear
- Drum diameter, front
- Drum width, rear
- Drum width, front
-
- Drum type, front
- Smooth/non-split
- Drum type, rear
- Smooth/non-split
- Track offset, right
- 50 mm
- Track offset, left
- 0 mm
- Drum thickness, rear
- 16 mm
- Drum thickness, front
- 16 mm
- Drum diameter, rear
- 898 mm
- Drum diameter, front
- 898 mm
- Drum width, rear
- 1,380 mm
- Drum width, front
- 1,380 mm
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Exhaust gas after-treatment
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1349, rpm
- Power SAE J1349, HP
- Power SAE J1349, kW
-
- Manufacturer
- KUBOTA
- Model
- V2403-M-DI-E3B
- Cylinders, quantity
- 4
- Exhaust emission standard
- MEE IV
- Exhaust gas after-treatment
- -
- Power ISO 14396, rpm
- 2,700 rpm
- Power ISO 14396, HP
- 49 HP
- Power ISO 14396, kW
- 36 kW
- Power SAE J1349, rpm
- 2,700 rpm
- Power SAE J1349, HP
- 48.2 hp
- Power SAE J1349, kW
- 36 kW
- Speed, infinitely variable
- Climbing ability, without vibration
-
- Speed, infinitely variable
- 0 - 11,0
- Climbing ability, without vibration
- 40 %
- Centrifugal force, rear, II
- Centrifugal force, rear, I
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, rear, II
- Vibration frequency, rear, I
- Vibration frequency, front, II
- Vibration frequency, front, I
- Amplitude, rear, II
- Amplitude, rear, I
-
- Centrifugal force, rear, II
- 35 kN
- Centrifugal force, rear, I
- 58 kN
- Centrifugal force, front, II
- 35 kN
- Centrifugal force, front, I
- 58 kN
- Amplitude, front, II
- 0.31 mm
- Amplitude, front, I
- 0.51 mm
- Vibration frequency, rear, II
- 48 Hz
- Vibration frequency, rear, I
- 57 Hz
- Vibration frequency, front, II
- 48 Hz
- Vibration frequency, front, I
- 57 Hz
- Amplitude, rear, II
- 0.31 mm
- Amplitude, rear, I
- 0.51 mm
- Steering, type
- Water sprinkling, type
-
- Steering, type
- Articulated steering
- Water sprinkling, type
- Pressure
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Fuel tank, capacity
- Water tank, capacity
-
- Fuel tank, capacity
- 73 l
- Water tank, capacity
- 260 l
- Sound power level L(WA), guaranteed
-
- Sound power level L(WA), guaranteed
- 106
