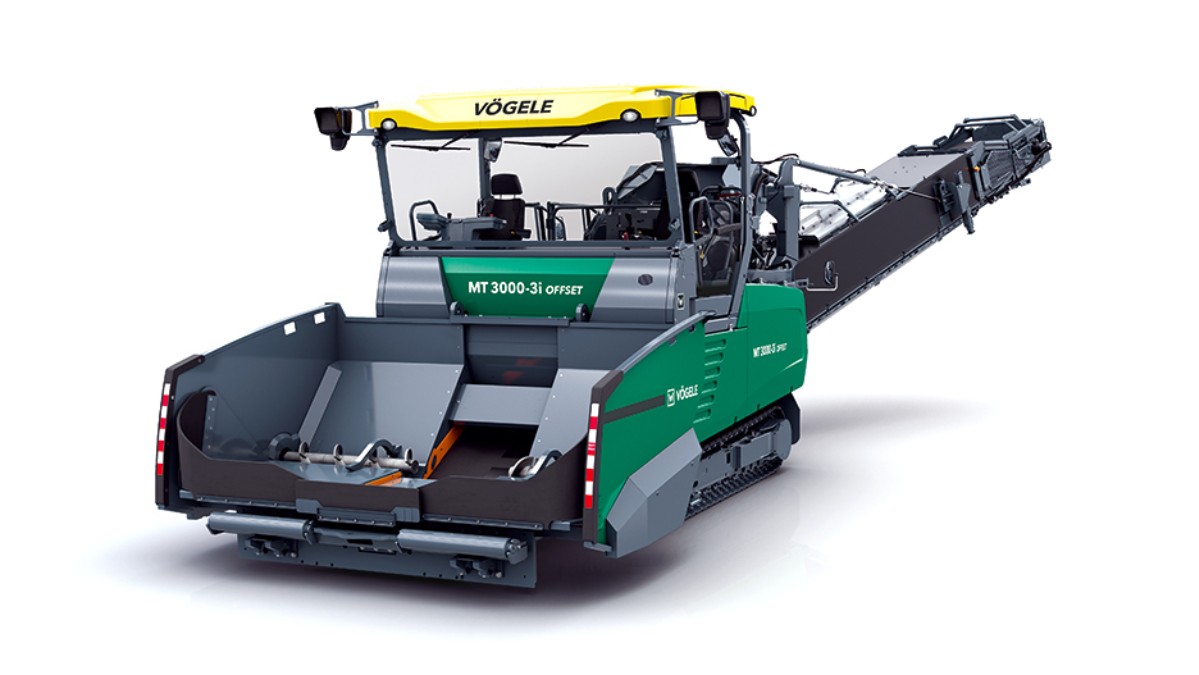

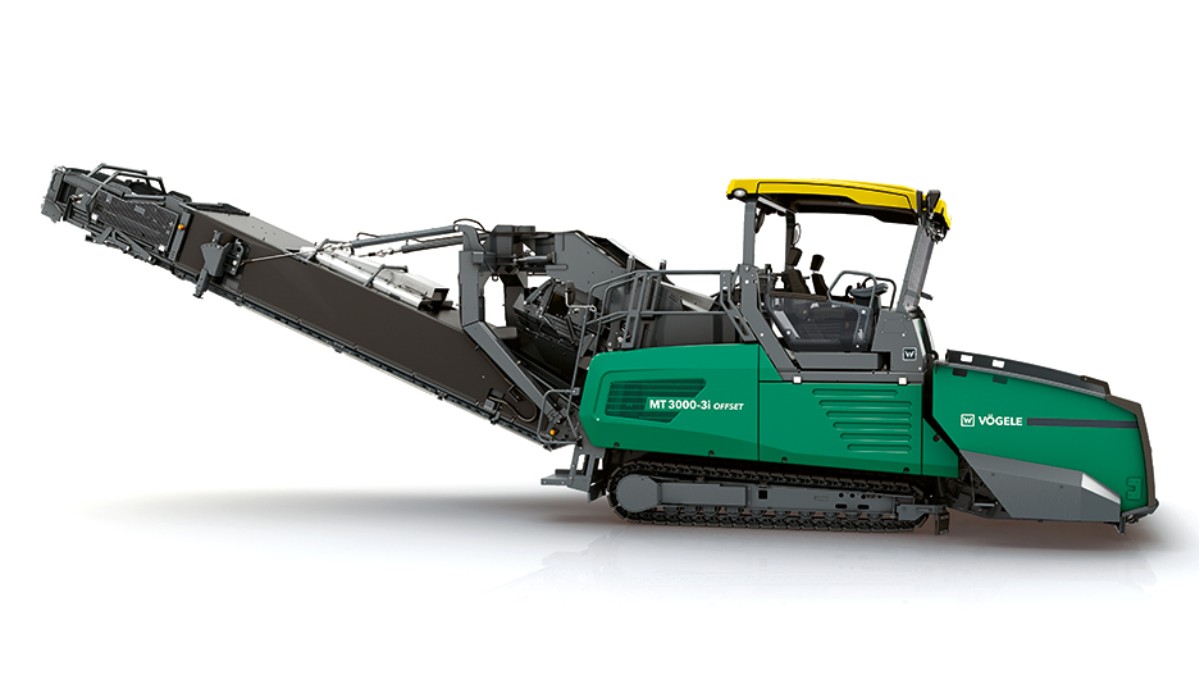

MT 3000-3i Offset PowerFeeder
t/h
kg
m
State-of-the-art high-performance feed technology with outstanding operating convenience and a wide range of applications
The new MT 3000-3i Offset PowerFeeder combines state-of-the-art, high-performance feed technology with outstanding operating convenience. The optimized conveying concept ensures reliable uninterrupted and jolt-free transfer of mix to the paver. The pivoting and height-adjustable conveyor of the MT 3000-3i Offset creates a wide variety of applications, ensuring a high level of usage. The ErgoPlus 3 operating concept is another step forward in making operation much easier. It also incorporates a new service and maintenance concept with optimized access to all cleaning and maintenance points.
Show less
Rapid conveying of mix without loss, even under difficult conditions of use
The conveyor which can pivot 55 degrees to the right and left gives the MT 3000-3i Offset a wide range of applications, making the machine extremely useful.
The optimized control system always keeps the conveyor belt central, even on difficult job sites with extreme inclines.
The improved material handling concept reduces machine soiling to a minimum. This reduces wear and increases resistance to deformation.
Belt heating with improved control maintains its temperature reliably whilst keeping fuel consumption low.
Rapid, simple docking and emptying of mix trucks
The changed geometry of the material hopper allows mix trucks to dock easily and to unload quickly.
Reflectors and markings in fluorescent colours identify the hopper walls for reliable and quick docking, even when working at night.
The trough-shaped conveyor belt centres the mix during handling, guaranteeing a clean flow of material without losses.
Material handling concept
The powerful conveying concept of the MT 3000-3i can transport up to 1,200 t mix an hour, meaning that a 25 t mix truck can be emptied completely in just 60 seconds. The continuous supply of mix increases paving quality and ensures non-stop paving. Construction projects are completed more quickly and more economically.
ErgoPlus 3
The ErgoPlus 3 operating concept makes people the focus. It makes the machine simple and intuitive to operate. At the same time, ErgoPlus 3 provides the feeder operator with a more ergonomic, safer workplace, giving him full control of the machine and the construction project at all times.
PaveDock Assistant
PaveDock Assistant enables material feeder operators and truck drivers to communicate unambiguously without hooting or hand signals. This makes it particularly quick and safe to dock, tip and drive away trucks. Signal lights on the roof of the material feeder and the associated controls on the feeder operator’s ErgoPlus 3 console are key components of the system.
AutoSet Plus
AutoSet Plus facilitates repositioning. The material feeder can be put into repositioning or transport position at the touch of a button. Conveying programmes can furthermore be saved and called up again at any time. AutoSet Plus thus automates routine tasks, enabling operating processes to be completed more quickly and in a more controlled manner.
Technical specifications
- Exhaust emissions after-treatment
- Exhaust emissions standard
- Version
- Manufacturer
- Fuel tank
- Nominal output
- ECO mode output
- Guaranteed sound power level LWA
- Sound pressure level LPA at the operator’s stations (≤)
- Type
-
- Exhaust emissions after-treatment
- DOC, DPF, SCR
- Exhaust emissions standard
- European exhaust emissions standard V, US standard EPA Tier 4f
- Version
- liquid-cooled 6-cylinder diesel engine
- Manufacturer
- Deutz
- Fuel tank
- 450 l
- Nominal output
- 160 kW / 2,000 U/min
- ECO mode output
- 150 kW / 1,800 U/min
- Guaranteed sound power level LWA
- 108 db(A)
- Sound pressure level LPA at the operator’s stations (≤)
- 80 db(A)
- Type
- TCD 6.1
- Speeds
- Operating speed (up to)
- Travel speed (up to)
- Version
- Ground contact
- Traction drive crawler tracks
- Lubrication of track rollers
- Track tension adjuster
-
- Operating speed (up to)
- 25 m/min
- Travel speed (up to)
- 4.5 km/h
- Version
- provided with rubber pads
- Ground contact
- 3,060 mm x 305 mm
- Traction drive crawler tracks
- separate hydraulic drives with electronic control
- Lubrication of track rollers
- lifetime
- Track tension adjuster
- spring assembly
- Push-rollers
- Version
- Hopper capacity of material feeder
- Width of material feeder
- Feed height of material feeder
- Positions of material feeder
-
- Version
- oscillating
- Hopper capacity of material feeder
- 15 t
- Width of material feeder
- 3,680 mm
- Feed height of material feeder
- 600 mm
- Positions of material feeder
- can be adjusted in a forward direction by 75 mm or 150 mm
- Conveyors
- Conveyor drive
- Version
- Belt width
- Screed heating
- Pivoting angle
- Max. transfer height standard
- Max. transfer height option
- Augers
- Auger drive
- Auger speed
- Auger diameter
- Conveying system capacity (up to)
- Augers
- Pivoting conveyor
-
- Conveyor drive
- separate hydraulic drives
- Version
- 2 continuous rubber conveyor belts
- Belt width
- 1,100 mm
- Screed heating
- infrared heating panel, diesel-operated
- Pivoting angle
- 55 °
- Max. transfer height standard
- 3,600 mm
- Max. transfer height option
- 3,900 mm
- Auger drive
- separate hydraulic drives
- Auger speed
- 100 U/min
- Auger diameter
- 300 mm
- Conveying system capacity (up to)
- 1,200 t/h
- Augers
- 2, in material hopper
- Pivoting conveyor
- hydraulically pivoting
- Capacity
- Capacity, 2.5 m machine
- Capacity, 3 m machine
- Passive homogenization promoted by use of additional hopper
-
- Capacity, 2.5 m machine
- 20 t
- Capacity, 3 m machine
- 25 t
- Passive homogenization promoted by use of additional hopper
- 18 t
- Weight

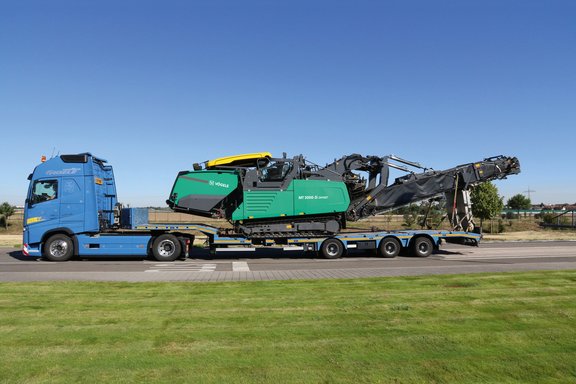

- Length in transport position
- With pivoting conveyor
- With pivoting conveyor and funnel
- Track gauge
- Transport width
-
- Weight
- 24,285 kg
- With pivoting conveyor
- 14.49 m
- With pivoting conveyor and funnel
- 15.02 m
- Track gauge
- 2.36 m
- Transport width
- 3 m
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
