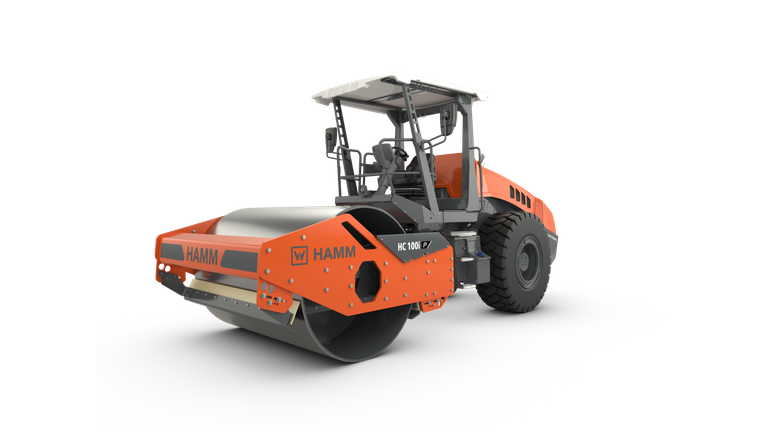

Compactor with smooth drum HC 100i

HC 100i Compactor with smooth drum

ha-abmessung-bandagen
59.1 in

ha-gewichte
26,449 lbs

ha-dieselmotor
EU Stage V / EPA Tier 4

  • High compaction performance
  • Digital ready
  • Customised configuration possibilities and a wide range of options
  • Hammtronic for high comfort, safety and reduced emissions
  • Spacious driver's platform with Easy Drive operating concept

3-point articulation

3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Find out more

HAMMTRONIC

HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, thereby increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programmes (for DV+ series only), guaranteeing even, smooth movement of both drums.

Find out more

Easy Drive

Simple and intuitive operation is an increasingly important criterion for modern construction machinery. For this reason, HAMM has developed Easy Drive, a standardised operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic-tyre rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy-to-learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.

Find out more

Measure it right. Measure it now.

Our smart solutions make compaction, measurement and documentation easier than ever before. Thanks to innovative digital interfaces between the operator and the machine, as well as smart assistants, we take efficiency to a new level.

We link the trends of digitalisation and resource conservation directly to your daily construction site activity.

Find out more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HC
Name
HC 100i
Description
Compactor with smooth drum
Exhaust emissions category
EU Stage V / EPA Tier 4
Series
H252
Static linear load, front
Operating weight with ROPS
Empty weight without cab, without ROPS
Operating weight with cab
Axle load, rear
Axle load, front
Max. operating weight
Static linear load, front
170.3 lbs/in
Operating weight with ROPS
25,677 lbs
Empty weight without cab, without ROPS
24,079 lbs
Operating weight with cab
26,449 lbs
Axle load, rear
11,940 lbs
Axle load, front
14,509 lbs
Max. operating weight
33,714 lbs
Total length
Total width with cab
Maximum working width
Total height with cab
Center distance
Ground clearance, center
Turning radius, inside
Total height with ROPS
Slope angle, rear
Slope angle, front
Total length
240.8 in
Total width with cab
97.4 in
Maximum working width
84.3 in
Total height with cab
116.5 in
Center distance
118.1 in
Ground clearance, center
18.1 in
Turning radius, inside
162.6 in
Total height with ROPS
120.2 in
Slope angle, rear
23.7 °
Slope angle, front
34.2 °
Drum type, front
Drum diameter, front
Drum width, front
Drum thickness, front
Drum type, front
Smooth/split
Drum diameter, front
44.9 in
Drum width, front
59.1 in
Drum thickness, front
0.7 in
Number of tires, rear
Tire size, rear
Width over tires, rear
Number of tires, rear
4
Tire size, rear
AW 23.1-26 12 PR
Width over tires, rear
83.5 in
Manufacturer
Model
Cylinders, quantity
Exhaust emission standard
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1349, rpm
Power SAE J1349, HP
Power SAE J1349, kW
Manufacturer
KUBOTA
Model
V3307-CR-T
Cylinders, quantity
4
Exhaust emission standard
EU Stage IIIB / EPA Tier 4
Power ISO 14396, rpm
2,200 rpm
Power ISO 14396, HP
74.3 HP
Power ISO 14396, kW
54.6 kW
Power SAE J1349, rpm
2,200 rpm
Power SAE J1349, HP
73.2 hp
Power SAE J1349, kW
54.6 kW
Regulation, infinitely variable
Speed, infinitely variable
Climbing ability, without vibration
Regulation, infinitely variable
HAMMTRONIC
Speed, infinitely variable
0,0 - 7,3
Climbing ability, without vibration
59 %
Centrifugal force, front, II
Centrifugal force, front, I
Amplitude, front, II
Amplitude, front, I
Vibration frequency, front, II
Vibration frequency, front, I
Centrifugal force, front, II
29,250 lbs
Centrifugal force, front, I
56,250 lbs
Amplitude, front, II
0.033 in
Amplitude, front, I
0.077 in
Vibration frequency, front, II
1,980 VPM
Vibration frequency, front, I
1,800 VPM
Steering, type
Water sprinkling, type
Steering, type
Articulated steering
Water sprinkling, type
Pressure
Water sprinkling, type
Water sprinkling, type
Pressure
Fuel tank, capacity
Fuel tank, capacity
74 gal
Sound power level L(WA), guaranteed
Sound power level L(WA), guaranteed
106

Equipment

  • 12 V sockets (double)
  • Automatic vibration system
  • Vibration-isolated driver's platform
  • Hose protection on the front vehicle
  • Speed preselect
Show more

Optional equipment

  • ROPS cab with heating and air-conditioning system (FOPS, level I)
  • Battery isolation switch
  • Coming Home function
  • Engine hood with electrical release mechanism
  • Working spotlights
Show more
Show more
Measure it right. Measure it now.
HAMM Assistance Systems
1/10
HAMM|6494|203962
HAMM|3506|23298
Smart Doc 1080p
HC Series Highlights | Animation | EN-GB
Track Assist | Commercial
HAMM|6503|203971
HAMM|6502|203970
HAMM|6498|203966
HAMM|6500|203968
HAMM|6501|203969
HAMM|6494|203962
HAMM|3506|23298
Smart Doc 1080p
HC Series Highlights | Animation | EN-GB
Track Assist | Commercial
HAMM|6503|203971
HAMM|6502|203970
HAMM|6498|203966
HAMM|6500|203968
HAMM|6501|203969
HAMM|6494|203962
HAMM|3506|23298
Smart Doc 1080p
HC Series Highlights | Animation | EN-GB
Track Assist | Commercial
HAMM|6503|203971
HAMM|6502|203970
HAMM|6498|203966
HAMM|6500|203968
HAMM|6501|203969
Downloads
English (US) (1.2 MB) Albanian (AL) (1.2 MB)Bulgarian (BG) (1.2 MB)Chinese (CN) (1.3 MB)Chinese (TW) (1.2 MB)Czech (CZ) (1.2 MB)Danish (DK) (1.2 MB)Dutch (NL) (1.2 MB)English (GB) (1.2 MB)Estonian (EE) (1.2 MB)Finnish (FI) (1.2 MB)French (FR) (1.2 MB)German (DE) (1.2 MB)Hungarian (HU) (1.2 MB)Italian (IT) (1.2 MB)Japanese (JP) (1.2 MB)Kazakh (KZ) (1.2 MB)Latvian (LV) (1.2 MB)Lithuanian (LT) (1.2 MB)Norwegian Bokmål (NO) (1.2 MB)Polish (PL) (1.2 MB)Portuguese (BR) (1.2 MB)Romanian (RO) (1.2 MB)Russian (RU) (1.2 MB)Serbian (CS) (1.2 MB)Slovak (SK) (1.2 MB)Spanish (ES) (1.2 MB)Swedish (SE) (1.2 MB)Thai (TH) (1.2 MB)Turkish (TR) (1.2 MB)Ukrainian (UA) (1.2 MB)
English (GB) (3.4 MB)French (FR) (3.4 MB)German (DE) (3.4 MB)Spanish (ES) (3.4 MB)
English (GB) (12.9 MB)French (FR) (12.9 MB)German (DE) (13.0 MB)Spanish (ES) (13.0 MB)
English (US) (10.9 MB) English (GB) (10.9 MB)French (FR) (10.9 MB)German (DE) (10.9 MB)Spanish (ES) (10.9 MB)
English (GB) (1.8 MB)French (FR) (1.9 MB)German (DE) (3.6 MB)Spanish (ES) (1.9 MB)
English (GB) (2.3 MB)French (FR) (2.3 MB)German (DE) (2.3 MB)Spanish (ES) (2.3 MB)Turkish (TR) (2.4 MB)
