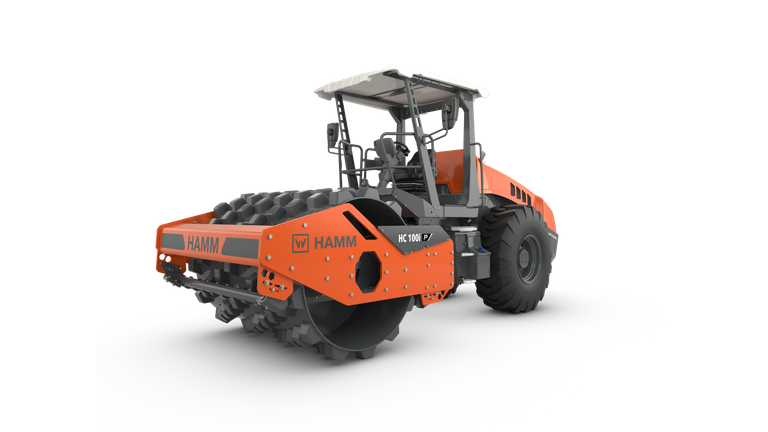

Compactor with padfoot drum HC 100i P

HC 100i P Compactor with padfoot drum

84.3 in

27,364 lbs

EU Stage V / EPA Tier 4

  • High compaction performance
  • Digital ready
  • Customised configuration possibilities and a wide range of options
  • Hammtronic for high comfort, safety and reduced emissions
  • Spacious driver's platform with Easy Drive operating concept
Show less

Three-point articulation

Three-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Learn more

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement, and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalization and resource conservation into daily construction site activity.

Learn more

HAMMTRONIC

HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, consequently increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programs (for DV+ series only), guaranteeing even, smooth movement of both drums.

Learn more

Easy Drive

Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardized operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tire rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.

Learn more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HC
Name
HC 100i P
Description
Compactor with padfoot drum
Exhaust emissions category
EU Stage V / EPA Tier 4
Series
H252
Static linear load, front
Operating weight with ROPS
Empty weight without cab, without ROPS
Operating weight with cab
Axle load, rear
Axle load, front
Static linear load, front
182.7 lbs/in
Operating weight with ROPS
26,592 lbs
Empty weight without cab, without ROPS
24,994 lbs
Operating weight with cab
27,364 lbs
Axle load, rear
11,973 lbs
Axle load, front
15,391 lbs
Total length
Total width with cab
Maximum working width
Total height with cab
Center distance
Ground clearance, center
Turning radius, inside
Total height with ROPS
Slope angle, rear
Slope angle, front
Total length
240.8 in
Total width with cab
97.4 in
Maximum working width
84.3 in
Total height with cab
120.2 in
Center distance
128.6 in
Ground clearance, center
18.1 in
Turning radius, inside
162.6 in
Total height with ROPS
120.2 in
Slope angle, rear
23.7 °
Slope angle, front
33.7 °
Padfeet, quantity
Drum type, front
Drum diameter, front
Drum width, front
Height of the padfeet
Drum thickness, front
Padfeet, quantity
130
Drum type, front
Padfoot
Drum diameter, front
67.2 in
Drum width, front
84.3 in
Height of the padfeet
4.4 in
Drum thickness, front
0.6 in
Number of tires, rear
Tire size, rear
Width over tires, rear
Number of tires, rear
2
Tire size, rear
TR 23.1/18-26 12 PR
Width over tires, rear
84.8 in
Manufacturer
Model
Cylinders, quantity
Exhaust emission standard
Exhaust gas after-treatment
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1349, rpm
Power SAE J1349, HP
Power SAE J1349, kW
Manufacturer
JOHN DEERE
Model
JDPS 4045EWS
Cylinders, quantity
4
Exhaust emission standard
EU Stage V / EPA Tier 4
Exhaust gas after-treatment
DOC-DPF-SCR
Power ISO 14396, rpm
2,000 rpm
Power ISO 14396, HP
115.7 HP
Power ISO 14396, kW
85 kW
Power SAE J1349, rpm
2,000 rpm
Power SAE J1349, HP
114 hp
Power SAE J1349, kW
85 kW
Regulation, infinitely variable
Speed, infinitely variable
Climbing ability, without vibration
Regulation, infinitely variable
HAMMTRONIC
Speed, infinitely variable
0,0 - 7,4
Climbing ability, without vibration
61 %
Centrifugal force, front, II
Centrifugal force, front, I
Amplitude, front, II
Amplitude, front, I
Vibration frequency, front, II
Vibration frequency, front, I
Centrifugal force, front, II
29,250 lbs
Centrifugal force, front, I
56,250 lbs
Amplitude, front, II
0.031 in
Amplitude, front, I
0.071 in
Vibration frequency, front, II
1,980 VPM
Vibration frequency, front, I
1,800 VPM
Steering, type
Steering, type
Articulated steering
Fuel tank, capacity
Fuel tank, capacity
74 gal
Sound power level L(WA), guaranteed
Sound power level L(WA), guaranteed
106

Equipment

  • 12 V sockets (2-fold)
  • Automatic vibration system
  • Vibration-isolated driver's platform
  • Hose protection on the front vehicle
  • Speed preselect
  • ECO mode
  • Easy Drive operating concept
  • Dashboard with displays, indicator lights and function keys
  • 3-point articulation
  • Two large exterior rear-view mirrors
Show less

Optional equipment

  • ROPS cab with heating and air-conditioning system (FOPS, level I)
  • Battery isolation switch
  • Coming Home function
  • Engine hood with electrical release mechanism
  • Working spotlights
  • JDLink
  • Back-up alarm
  • Camera system
  • Automatic engine stop
  • Dozer blade
  • Bluetooth interface for Smart Doc
  • Tachograph
  • Auxiliary heater
Show less
Show less
HAMM|6494|203962
HAMM|3506|23298
Smart Doc 1080p
Series HC | Highlights
Smart Doc | Commercial
HAMM|6503|203971
HAMM|6502|203970
HAMM|6498|203966
HAMM|6500|203968
HAMM|6501|203969
Downloads
English (US) (1.2 MB) Albanian (AL) (1.2 MB)Bulgarian (BG) (1.2 MB)Chinese (CN) (1.3 MB)Chinese (TW) (1.2 MB)Czech (CZ) (1.2 MB)Danish (DK) (1.2 MB)Dutch (NL) (1.2 MB)English (GB) (1.2 MB)Estonian (EE) (1.2 MB)Finnish (FI) (1.2 MB)French (FR) (1.2 MB)German (DE) (1.2 MB)Hungarian (HU) (1.2 MB)Italian (IT) (1.2 MB)Japanese (JP) (1.2 MB)Kazakh (KZ) (1.2 MB)Latvian (LV) (1.2 MB)Lithuanian (LT) (1.2 MB)Norwegian Bokmål (NO) (1.2 MB)Polish (PL) (1.2 MB)Portuguese (BR) (1.2 MB)Romanian (RO) (1.2 MB)Russian (RU) (1.2 MB)Serbian (CS) (1.2 MB)Slovak (SK) (1.2 MB)Spanish (ES) (1.2 MB)Swedish (SE) (1.2 MB)Thai (TH) (1.2 MB)Turkish (TR) (1.2 MB)Ukrainian (UA) (1.2 MB)
English (US) (26.6 MB) English (GB) (31.3 MB)French (FR) (31.4 MB)German (DE) (31.4 MB)Portuguese (BR) (26.3 MB)Spanish (ES) (31.4 MB)Turkish (TR) (32.1 MB)
English (US) (8.4 MB) English (GB) (7.9 MB)French (FR) (7.9 MB)German (DE) (7.9 MB)Spanish (ES) (7.9 MB)
English (US) (22.5 MB) English (GB) (19.3 MB)French (FR) (19.3 MB)German (DE) (19.3 MB)Portuguese (BR) (26.7 MB)Spanish (ES) (19.3 MB)
English (GB) (1.8 MB)French (FR) (1.9 MB)German (DE) (3.6 MB)Spanish (ES) (1.9 MB)
English (GB) (2.3 MB)French (FR) (2.3 MB)German (DE) (2.3 MB)Spanish (ES) (2.3 MB)Turkish (TR) (2.4 MB)
