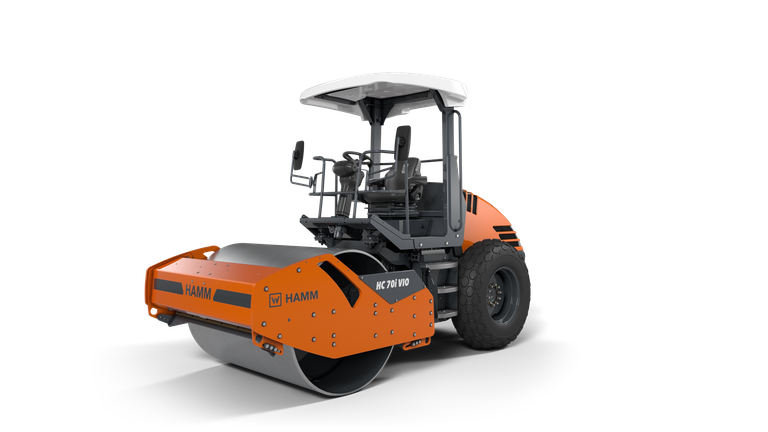

HC 70i VIO Compactor with VIO drum
6,765 kg
1,680 mm
EU Stage IIIB / EPA Tier 4
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HC CompactLine
- Name
- HC 70i VIO
- Description
- Compactor with VIO drum
- Exhaust emissions category
- EU Stage IIIB / EPA Tier 4
- Series
- H288
- Static linear load, front
- Operating weight with ROPS
- Empty weight without cab, without ROPS
- Operating weight with cab
- Axle load, rear
- Axle load, front
- Max. operating weight
-
- Static linear load, front
- 23.5 kg/cm
- Operating weight with ROPS
- 6,530 kg
- Empty weight without cab, without ROPS
- 6,215 kg
- Operating weight with cab
- 6,765 kg
- Axle load, rear
- 2,820 kg
- Axle load, front
- 3,945 kg
- Max. operating weight
- 7,270 kg
- Total length
- Total width with cab
- Maximum working width
- Total height with cab
- Center distance
- Ground clearance, center
- Turning radius, inside
- Total height with ROPS
- Slope angle, rear
- Slope angle, front
-
- Total length
- 4,439 mm
- Total width with cab
- 2,018 mm
- Maximum working width
- 1,680 mm
- Total height with cab
- 2,883 mm
- Center distance
- 2,336 mm
- Ground clearance, center
- 322 mm
- Turning radius, inside
- 3,310 mm
- Total height with ROPS
- 2,878 mm
- Slope angle, rear
- 40 °
- Slope angle, front
- 38 °
- Drum diameter, front
- Drum width, front
- Drum type, front
- Drum thickness, front
-
- Drum diameter, front
- 1,206 mm
- Drum width, front
- 1,680 mm
- Drum type, front
- Smooth
- Drum thickness, front
- 20 mm
- Number of tires, rear
- Tire size, rear
- Width over tires, rear
-
- Number of tires, rear
- 2
- Tire size, rear
- AW 14.9-24 6 PR
- Width over tires, rear
- 1,667 mm
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1349, rpm
- Power SAE J1349, HP
- Power SAE J1349, kW
-
- Manufacturer
- DEUTZ
- Model
- TD 2.9 L4
- Cylinders, quantity
- 4
- Exhaust emission standard
- EU Stage IIIB / EPA Tier 4
- Power ISO 14396, rpm
- 2,200 rpm
- Power ISO 14396, HP
- 73.4 HP
- Power ISO 14396, kW
- 54 kW
- Power SAE J1349, rpm
- 2,200 rpm
- Power SAE J1349, HP
- 72.4 hp
- Power SAE J1349, kW
- 54 kW
- Speed, transport gear
- Climbing ability, without vibration
- Speed, working gear, I
-
- Speed, transport gear
- 0-8,6
- Climbing ability, without vibration
- 60 %
- Speed, working gear, I
- 0-6,0
- Oscillation force
- Oscillation frequency
- Tangential amplitude, oscillation
-
- Oscillation force
- 85.14 kN
- Oscillation frequency
- 36 Hz
- Tangential amplitude, oscillation
- 1.01 mm
- Vibration frequency
- Amplitude, vibration
- Centrifugal force, vibration
-
- Vibration frequency
- 36 Hz
- Amplitude, vibration
- 0.98 mm
- Centrifugal force, vibration
- 85.14 kN
- Steering, type
-
- Steering, type
- Articulated steering
- Fuel tank, capacity
-
- Fuel tank, capacity
- 123 l
- Sound power level L(WA), guaranteed
-
- Sound power level L(WA), guaranteed
- 105
