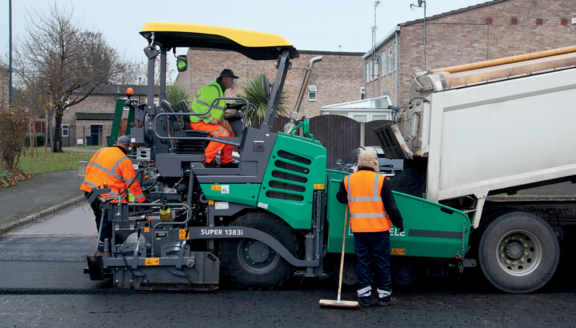

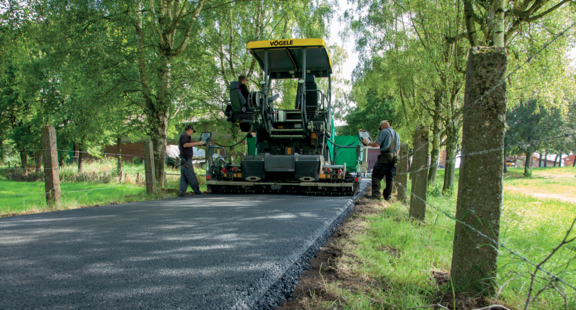

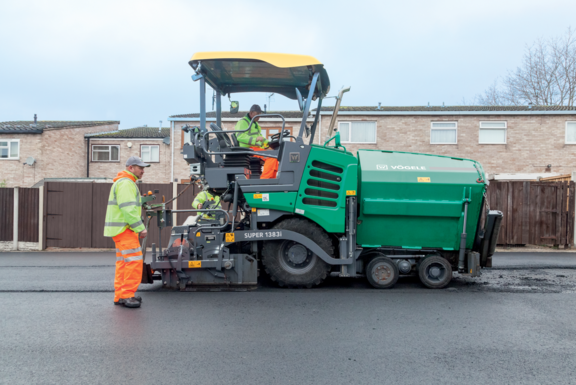

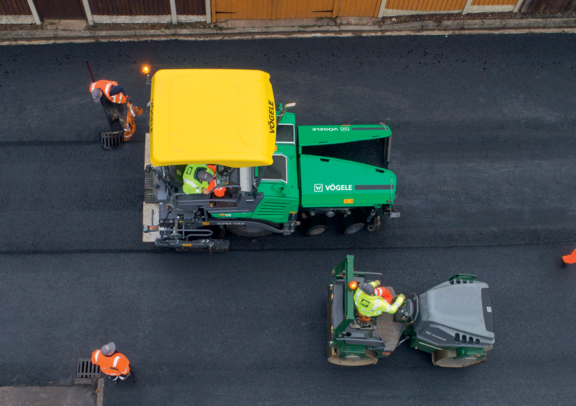

Wheeled paver Compact Class SUPER 1383i
NEW

SUPER 1383i Wheeled paver Compact Class

1.85

m

4.5

m

250

t/h

Compact dimensions, easy handling

Compact dimensions, easy handling and excellent value for money – that’s what the new VÖGELE SUPER 1383i wheeled paver has to offer. A member of the Classic Line, it features a range of functions which is focussed on the essentials required by paving teams for successful operations.

Show less

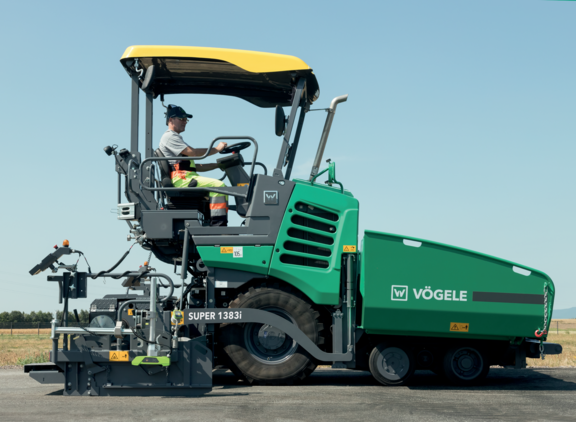

ErgoBasic

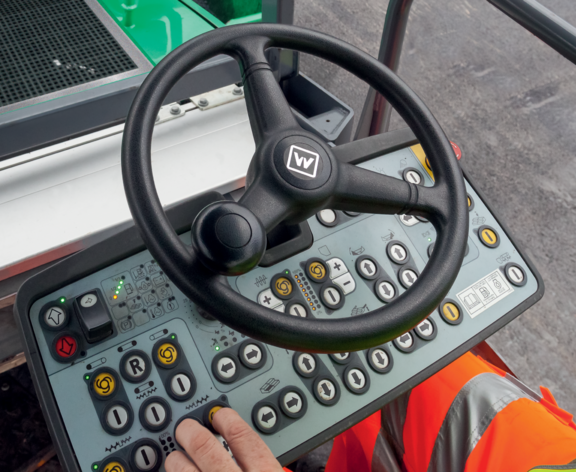

The ErgoBasic operating concept was designed on the back of the tried and tested ErgoPlus operating system for our Premium Line pavers and tailored specifically to meet the demands and needs of VÖGELE Classic Line users.

The goal was to develop an operating system which can be operated just as quickly, accurately and intuitively as the ErgoPlus 3 system on the “Dash 3” machines.

More

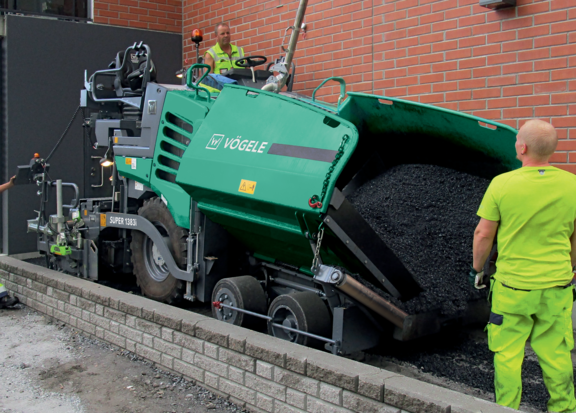

Pivot Steer – the steering brake

The new standard Pivot Steer function makes the SUPER wheeled pavers almost as nimble as the tracked pavers: a minimal inner turning circle enables the machines to turn virtually on the spot. This is a huge advantage, particularly on cramped job sites, such as those found in urban environments.

More

Niveltronic Basic

VÖGELE has also developed the Niveltronic Basic System for Automated Grade and Slope Control to match the ErgoBasic operating concept. It is completely integrated in the machine control system and therefore perfectly adapted to the paver model concerned. Another outstanding aspect of Niveltronic Basic is its particularly simple and intuitive handling, a feature which makes it easy even for less experienced operators to use the system correctly. This creates ideal conditions for the Classic Line pavers to work true to line and level on any base.

More

Technical specifications

Engine
Version
Manufacturer
Type
Exhaust emissions standard
Nominal output
ECO mode output
Emission data
Guaranteed sound power level LWA
Sound pressure level LPA at the operator’s stations (≤)
Fuel tank
Version
liquid-cooled 4-cylinder diesel engine
Manufacturer
Dongfeng Cummins
Type
B3.9CS4-110C
Exhaust emissions standard
NR4
Nominal output
81 kW / 2,000 U/min
ECO mode output
81 kW / 1,700 U/min
Guaranteed sound power level LWA
105 db(A)
Sound pressure level LPA at the operator’s stations (≤)
80 db(A)
Fuel tank
110 l
Outside turning circle
Traction drive
Version
Option
Standard
Rear wheels
Version
Tyre size, rear wheels
Front wheels
Version
Tyre equipment
Tyre size, front wheels
Speeds
Pave speed (up to)
Travel speed (up to)
Brakes
Parking brake
Steering
Outside turning circle
3.8 m
Version
separate hydraulic drives
Option
2 rear and 2 front wheels (6x4)
Standard
2 rear wheels (6x2)
Version
2, pneumatic tyres or filled with water
Tyre size, rear wheels
365/80 R 20 XZL TL 152K
Version
4, mounted on bogies
Tyre equipment
Solid tyres
Tyre size, front wheels
460/250 – 310 mm
Pave speed (up to)
30 m/min
Travel speed (up to)
20 km/h
Parking brake
spring-loaded multiple-disk brake, maintenance-free
Steering
hydraulic-assisted

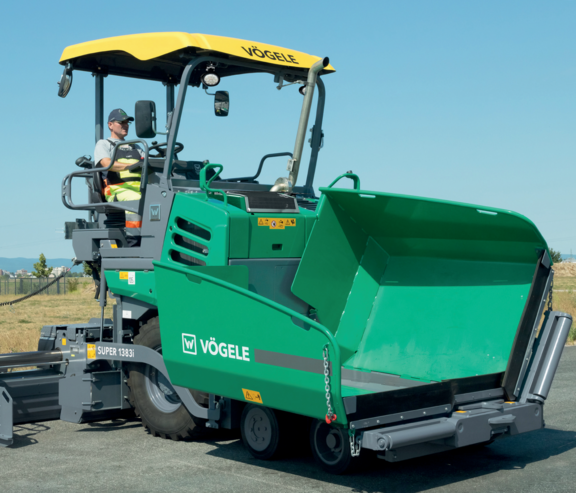

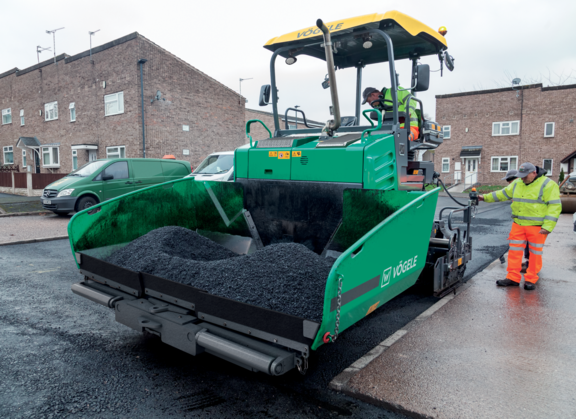

Hopper capacity
Width
Feed height (bottom of material hopper)
Push-rollers
Standard
Positions
Hopper capacity
10 t
Width
3,350 mm
Feed height (bottom of material hopper)
580 mm
Standard
oscillating
Positions
can be adjusted in a forward direction by 80 mm
Conveyors
Number
Version
Drive
Augers
Number
Version
Diameter
Drive
Rpm (up to)
Standard height
Lubrication
Number
2
Version
with replaceable feeder bars, direction of conveyor temporarily reversible
Drive
separate hydraulic drives, proportional control
Number
2
Version
with replaceable auger blades, auger rotation reversible
Diameter
300 mm
Drive
separate hydraulic drives, proportional control
Rpm (up to)
85 U/min
Standard height
mechanically adjustable by 13 cm
Lubrication
centralized lubrication system, electrically-driven grease pump
Screed
Layer thickness (up to)
Heating
Power Supply
Screed
Type Basic width Maximum width Compacting systems
AB 340 1.8 m 4.5 m V, TV
Layer thickness (up to)
25 cm
Heating
electric
Power Supply
Three-phase AC generator
Operating weight
Length
Operating weight
Screed Total weight
AB 340 TV 10,200 kg
Length
Screed Total length
AB 340 4.95 m
