HD 14i TT – new compact pneumatic-tyre roller for road-building and gardening and landscaping

Strong compact rollers

The HD CompactLine from HAMM is the world's most comprehensive series in the compact segment. For the German market alone, there are currently 24 compact tandem rollers available, including the HD 14i TT pneumatic-tyre roller. The series is rounded off by country- and market-specific machines, for example in China. All of the models in this series are extremely compact. They are therefore ideal for use on small and cramped construction sites. Their most important features include perfect visibility thanks to a tapered front vehicle, a low machine height and great transport and driving characteristics. The three-point articulation in particular allows for unique driving stability and great directional stability. The drum width on these articulated rollers ranges from 0.80 m to 1.38 m. There are also models with oscillation for all markets. The agile compaction machines are user-friendly all-rounders for compacting road surfaces in road construction as well as soils and paths in landscaping.

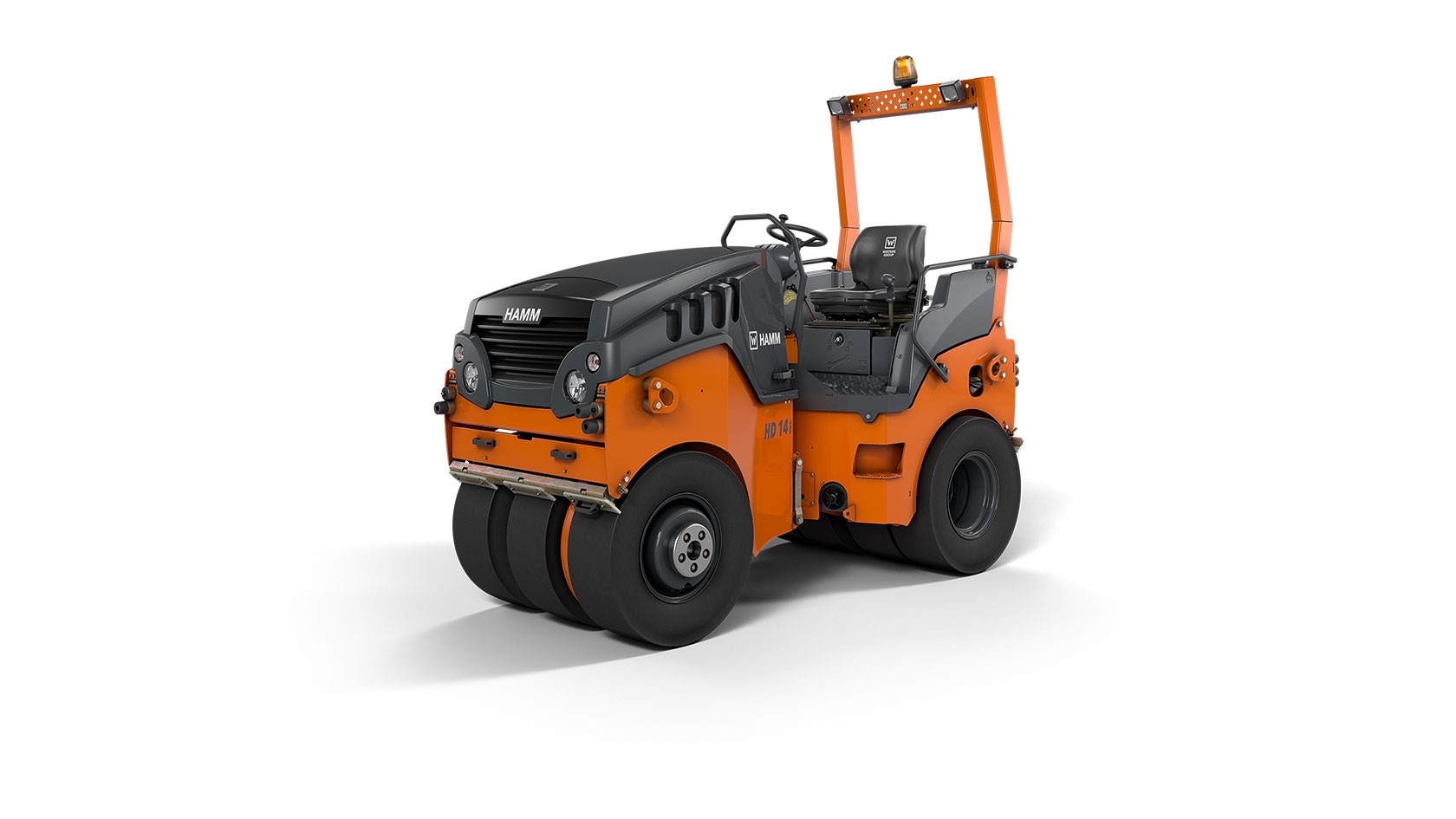

HD 14i TT: Facelift and new engine

HAMM offers the reworked pneumatic-tyre roller in the HD CompactLine under the name HD 14i TT. With a working weight of around 4 t and a working width of 1276 mm, it is suitable for repair work and for compacting small paths and surfaces. It shows its strengths wherever asphalt has to be gently compacted or pressed without vibration. Thanks to the compact dimensions, compaction can also be effortlessly carried out in extremely narrow spaces. Added to this is a large side clearance, meaning that the HD 14i TT can compact right to the edge on kerbs and small walls. Its economic, quiet actuation is also impressive. The Kubota engine with DOC-DPF and 37.4 kW power fulfils the requirements in accordance with EU Stage V/EPA Tier 4 for the EU, North America and all other countries with comparable emissions legislation.

Optimum visibility

The design of the HD CompactLine with wasp waist always guarantees excellent visibility. With this facelift, HAMM has yet again improved visibility. The roller fulfils the new, strict requirements of the "Field of view standard" DIN EN 474 and therefore offers even greater safety on the construction site as well as a better view of the surface that is to be compacted.

Great basic equipment and a range of options

The standard equipment of the HD 14i TT includes convenience features, such as the vibration-isolated operator’s platform and the 12 V socket. However, the vandal-proof cover on the dashboard, the electronic battery isolation switch or the pressure water sprinkling system are part of the basic package. Added to this is a large selection of options, including a driver's seat with seat heating, the ROPS cab and the automatic engine stop function guarantee economical and environmentally friendly operation.

Extremely straightforward operation

As part of the HD CompactLine, the HD 14i TT pneumatic-tyre roller is extremely easy and safe to operate from the offset without the need for any period of familiarisation. Simple access, minimal controls, and unique, language-neutral, logically arranged symbols prevent operating errors.

HAMM pneumatic-tyre rollers for large jobs too

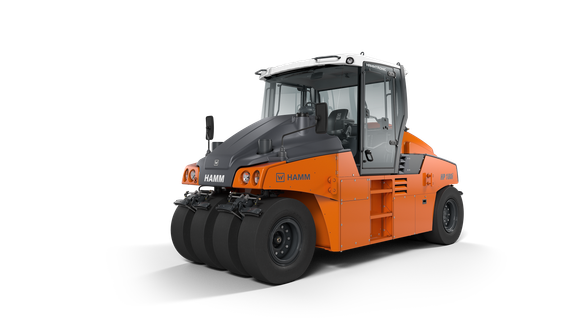

In addition to the HD 14i TT, HAMM's range includes other pneumatic-tyre rollers: The HP 180i (working weight 8–18 t) and the HP 280i (working weight 10–28 t). With a working width of 2084 mm, both are suitable for larger projects. The range of potential applications extends from soil stabilisation and cold recycling, through to landscape gardening as well as final compaction and surface sealing in asphalt construction. They also fulfil the exhaust gas directives in accordance with EU Stage V/EPA Tier 4. One of the technical highlights of this "big sister" is the intelligent ballasting concept for the optimum compaction results. Furthermore, characteristics such as the extremely versatile water-sprinkling system with innovative additive supply and the modern travel drive guarantee high quality and productivity.
