Wheeled paver Universal Class SUPER 1703-3i

SUPER 1703-3i Wheeled paver Universal Class

2.59

m

5.95

m

700

t/h

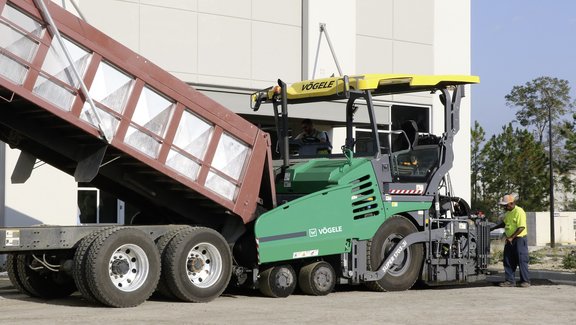

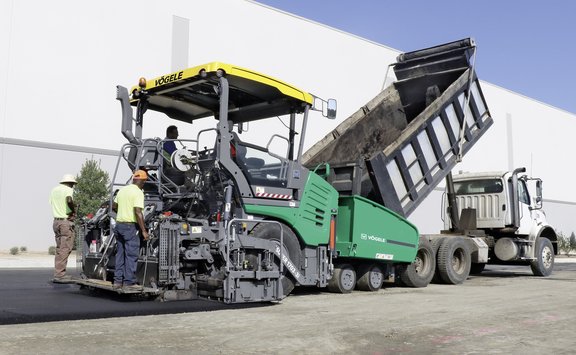

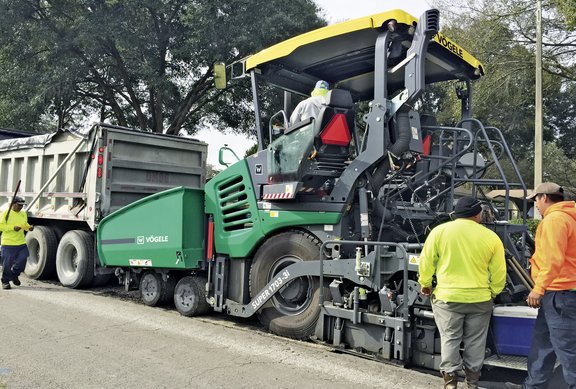

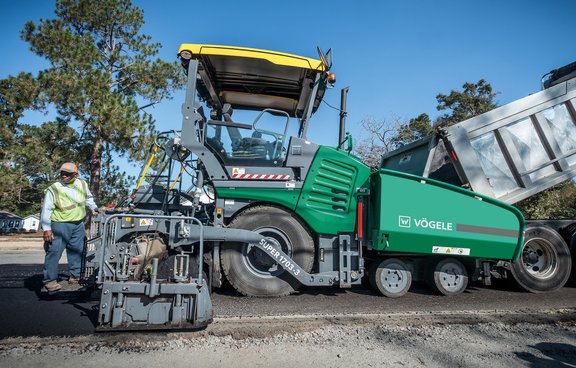

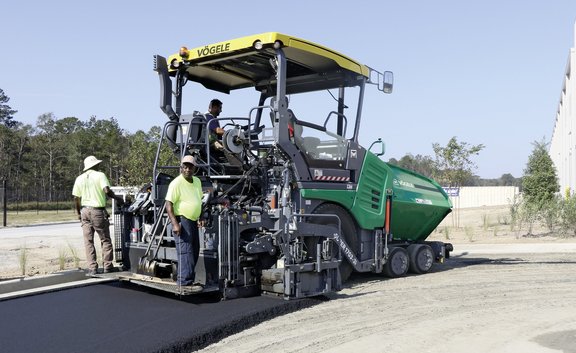

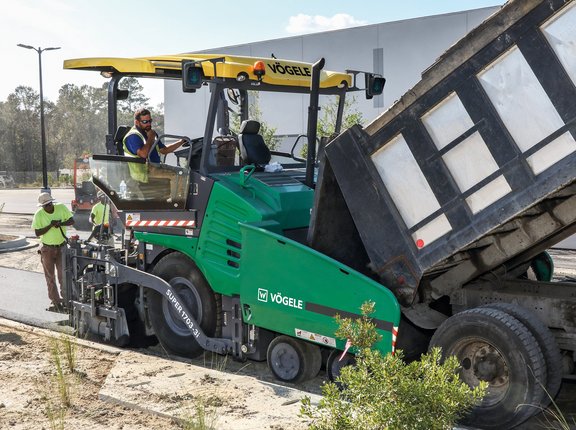

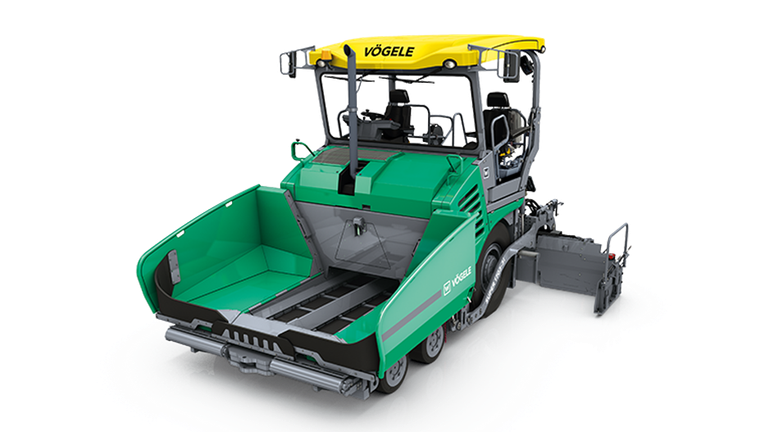

The compact-sized wheeled paver in the 8-foot-class

The wheeled SUPER 1703-3i paver has been specially designed for the requirements of the North American and Australian market. The 8-foot class wheeled paver is an all-rounder with great mobility. With its compact dimensions and Pivot Steer brake, the wheeled paver features excellent maneuverability, making it suitable for a wide variety of applications. The VÖGELE ErgoPlus 3 operating concept makes using the paver even safer and easier.

Show less
The highlights of the SUPER 1703-3i
Range of applications
Engine
Drive concept
Paving quality
VÖGELE EcoPlus
Operating system
Extending screed

ErgoPlus 3

Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. That is why the ErgoPlus 3 operating concept focuses on the operator. With VÖGELE pavers, the user consequently retains full control over the machine and construction project.

More

VÖGELE EcoPlus

The philosophy behind the machine concept of the Premium Line road pavers is "Lower consumption – lower emissions – lower costs". The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.

More

Pivot Steer – the steering brake

With their standard Pivot Steer function, the SUPER wheeled pavers are almost as agile as the crawler-track models. A minimal internal radius enables the machines to turn virtually on the spot. This is a huge advantage, particularly on cramped job sites, such as those found in urban environments.

More

Niveltronic Plus

The automatic leveling system Niveltronic Plus is an in-house development of JOSEPH VÖGELE AG and based on many years of experience in grade and slope control technology. Easy operation, precision and reliability are its hallmarks for perfect mastery of all grade and slope control jobs..

More

Technical specifications

Engine
Version
Manufacturer
Type
Exhaust emissions standard
Exhaust emissions after-treatment
Nominal output
ECO mode output
Fuel tank
Version
liquid-cooled 4-cylinder diesel engine
Manufacturer
Cummins
Type
QSB 4.5 - C173
Exhaust emissions standard
European exhaust emissions standard 4, US standard EPA Tier 4f
Exhaust emissions after-treatment
DOC, SCR
Nominal output
129 kW / 2,000 rpm
ECO mode output
119 kW / 1,700 rpm
Fuel tank
215 l
Outside turning circle
Outside turning circle
Traction drive
Version
Option
Standard
Rear wheels
Version
Tire size, rear wheels
Front wheels
Version
Tire equipment
Tire size, front wheels
Brakes
Service brake
Parking brake
Auxiliary brake
Speeds
Pave speed (up to)
Travel speed (up to)
Steering
Outside turning circle
6.5 m
Outside turning circle
3.5 m
Version
Separate hydraulic drives
Option
2 rear and 4 front wheels (6x6)
Standard
2 rear and 2 front wheels (6x4)
Version
2, pneumatic, tubeless
Tire size, rear wheels
14.00 R25
Version
4, mounted on bogies
Tire equipment
Elastic solid rubber tires
Tire size, front wheels
540/300–390
Service brake
generously-dimensioned multiple-disk brakes operated by foot pedal, maintenance-free
Parking brake
spring-loaded multiple-disk brake, maintenance-free
Auxiliary brake
hydrostatic brake
Pave speed (up to)
76 m/min
Travel speed (up to)
20 km/h
Steering
hydraulic
Hopper capacity
Width
Feed height (bottom of material hopper)
Push-rollers
Standard
Positions
Hopper capacity
13 t
Width
3,265 mm
Feed height (bottom of material hopper)
615 mm
Standard
oscillating
Positions
can be adjusted in a forward direction by 3 or 6 in
Conveyors
Number
Version
Drive
Running speed (up to)
Augers
Number
Version
Diameter
Drive
Speed (up to)
Height
Standard height
Lubrication
Number
2
Version
with replaceable feeder bars, direction of conveyor temporarily reversible
Drive
separate hydraulic drives, proportional control
Running speed (up to)
34 m/min
Number
2
Version
with replaceable auger blades, reversible direction of rotation
Diameter
400 mm
Drive
separate hydraulic drives, proportional control
Speed (up to)
120 rpm
Height
infinitely variable
Standard height
hydraulically adjustable by 6 in
Lubrication
centralized lubrication system, electrically-driven grease pump
Screed
Layer thickness (up to)
Screed heating
Power supply
Screed
Type Basic width Maximum width Compacting systems
VF 500 2.45 m 5.95 m V
Layer thickness (up to)
30 cm
Screed heating
electric, thermostat-controlled
Power supply
three-phase AC generator
Operating weight
Length
Operating weight
Screed Total weight
VF 500 17,250 kg
Length
Screed Total length
VF 500 5.96 m

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
