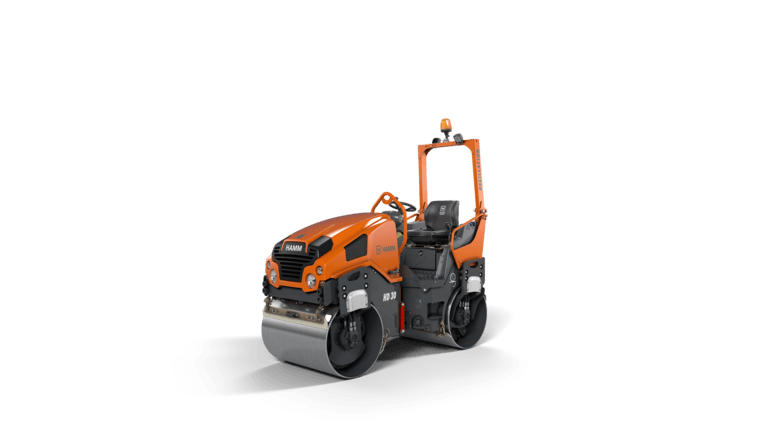

HD 35 VO Tandem roller with vibration and oscillation drum

3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

In an oscillation drum, two eccentric shafts are fitted at a 180° angle to each other. Both unbalanced masses rotate synchronously, which causes the drum to perform a rapidly alternating forwards-backwards rotational movement. This results in the compaction energy being transmitted forwards and backwards tangentially into the ground below in the form of shear forces. The oscillation system developed by HAMM achieves compaction results that are scientifically proven to be more homogeneous and higher quality, leading to faster, more significant compaction increases. The scope of application is enormous.
