Inset Slipform pavers SP 64

SP 64 Inset Slipform pavers

EU Stage 3a/US EPA Tier 3

2,000 - 7,500 mm

0 - 450 mm

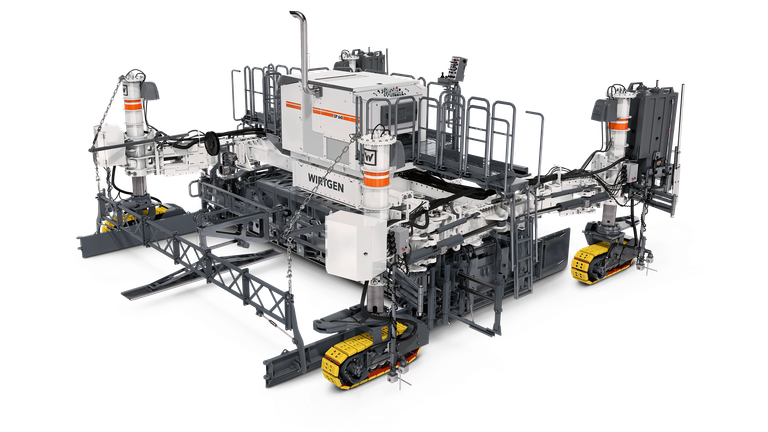

Fully modular inset slipform paver

  • The flexible 4-track slipform paver stands out due to its enormous variety of applications in road and airport construction from 2.0 m to 7.5 m wide and 450 mm thick (cannot be combined with all options).
  • The machine concept enables the construction of an exceptionally flat surface.
  • The fully modular machine design, simple changeover and expansion and hydraulic swing arms make the machine highly adaptable to any job site situation.
  • The intelligent, electronic steering and control system ensures precise handling of the four crawler units and thus precise concrete paving.
  • Precise insertion of tie bars and dowel bars via self-loading dowel bar inserter (optional) enables concrete paving over reinforcing steel.
Show less
Highlights
Heavy-duty machine design
Fully modular machine layout
Intelligent transport concept
Exceptional flexibility in concrete paving
Proven slab paving mould
Machine-integrated insertion of steel reinforcement
Alternative compaction technology
Efficient engine management
State-of-the-art engine technology
Perfection in ergonomic design and handling
High-precision steering and drive systems
Steering features increasing productivity
Machine control systems with advanced intelligence
Field-proven 3D interface

Slipform paving inset

In inset application, the concrete is either deposited right in front of the slipform paver or is fed in front of the machine from the side via a belt conveyor or side feeder. In the next step, the concrete is distributed evenly across the full paving width by a spreading auger or spreading plough. Homogeneous compaction of the concrete is effected by means of integrated electric or hydraulic vibrators. The inset mould forms the concrete slab to the specified thickness and width while the slipform paver advances. In addition, a dowel bar inserter can be integrated which inserts the dowel bars into the concrete as specified parallel to the paver’s direction of travel. Central tie bars or side tie bars can be inserted transverse to the concrete pavement. The surface is levelled off transverse to the paver’s direction of travel by the oscillating beam. In the next step, a super smoother is used to finish the concrete slab.

Learn more

WIRTGEN levelling technology

WIRTGEN levelling technology controls height, depth and slope to achieve results of maximum precision. In the process, the system continuously reconciles the actual values with a preselected target value, correcting any deviations by means of proportional control. State-of-the-art machine engineering ensures levelling results of consistently high quality while at the same time relieving the machine operator of a significant part of his workload.

WIRTGEN offers customers reliable hardware and software developed in-house. Different systems are used depending on the construction project to be completed and local conditions on site.

Learn more

Technical specifications

Exhaust emissions category
Number of track units
Paving width
Layer thickness
Operating weight, CE
Paving speed
Travel speed
Displacement
Machine weight
Mechanical height adjustment
Rated power
Hydraulic height adjustment
Exhaust emissions category
EU Stage 3a/US EPA Tier 3
Number of track units
4
Paving width
2,000 - 7,500 mm
Layer thickness
0 - 450 mm
Operating weight, CE
19,000 kg
Paving speed
0 - 6 m/min
Travel speed
0 - 23.5 m/min
Displacement
6 l
Machine weight
17,000 - 45,000 kg
Mechanical height adjustment
420 mm
Rated power
155 kW / 211 HP 2,300 rpm
Hydraulic height adjustment
1,100 mm

All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
