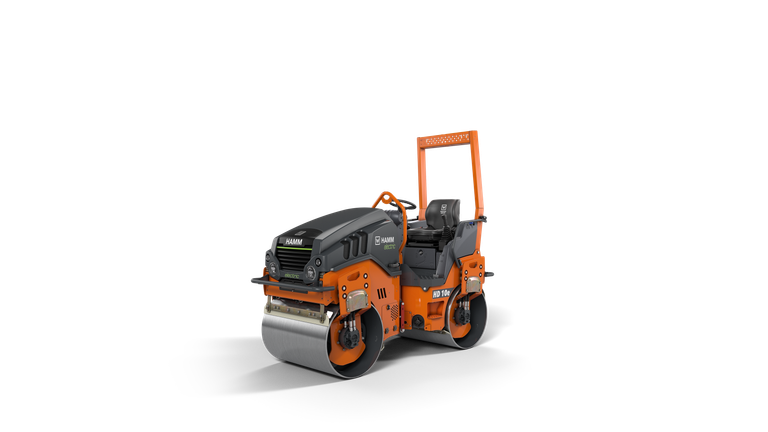

HD 10e VV Tandem roller with two vibrating roller drums
39.4 in
5,766 lbs
Technical specifications
- Series
- Name
- Description
- Series
-
- Series
- HD CompactLine
- Name
- HD 10e VV
- Description
- Tandem roller with two vibrating roller drums
- Series
- H289
- Operating weight with ROPS
- Empty weight without cab, without ROPS
- Static linear load, rear
- Static linear load, front
- Axle load, rear
- Axle load, front
-
- Operating weight with ROPS
- 5,766 lbs
- Empty weight without cab, without ROPS
- 5,270 lbs
- Static linear load, rear
- 76.1
- Static linear load, front
- 73 lbs/in
- Axle load, rear
- 2,913 lbs
- Axle load, front
- 2,875 lbs
- Total width
- Total length
- Maximum working width
- Center distance
- Ground clearance, center
- Turning radius, inside
- Total height with ROPS
-
- Total width
- 43.7 in
- Total length
- 99.6 in
- Maximum working width
- 41.3 in
- Center distance
- 66.9 in
- Ground clearance, center
- 11 in
- Turning radius, inside
- 97.2 in
- Total height with ROPS
- 97.4 in
- Drum type, front
- Drum type, rear
- Track offset, right
- Track offset, left
- Drum thickness, rear
- Drum thickness, front
- Drum diameter, rear
- Drum diameter, front
- Drum width, rear
- Drum width, front
-
- Drum type, front
- Smooth/non-split
- Drum type, rear
- Smooth/non-split
- Track offset, right
- 2 in
- Track offset, left
- 0 in
- Drum thickness, rear
- 0.6 in
- Drum thickness, front
- 0.6 in
- Drum diameter, rear
- 28.3 in
- Drum diameter, front
- 28.3 in
- Drum width, rear
- 39.4 in
- Drum width, front
- 39.4 in
- Speed, infinitely variable
- Climbing ability, without vibration
-
- Speed, infinitely variable
- 0,0 - 6,2
- Climbing ability, without vibration
- 43 %
- Nominal voltage
- Battery, type
- Capacity
-
- Nominal voltage
- 48 V
- Battery, type
- NMC lithium-ion
- Capacity
- 23.4 kWh
- Centrifugal force, rear, II
- Centrifugal force, rear, I
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, rear, II
- Vibration frequency, rear, I
- Vibration frequency, front, II
- Vibration frequency, front, I
- Amplitude, rear, II
- Amplitude, rear, I
-
- Centrifugal force, rear, II
- 4,950 lbs
- Centrifugal force, rear, I
- 8,078 lbs
- Centrifugal force, front, II
- 4,950 lbs
- Centrifugal force, front, I
- 8,078 lbs
- Amplitude, front, II
- 0.021 in
- Amplitude, front, I
- 0.02 in
- Vibration frequency, rear, II
- 3,060 VPM
- Vibration frequency, rear, I
- 3,900 VPM
- Vibration frequency, front, II
- 3,060 VPM
- Vibration frequency, front, I
- 3,900 VPM
- Amplitude, rear, II
- 0.021 in
- Amplitude, rear, I
- 0.02 in
- Steering, type
- Water sprinkling, type
-
- Steering, type
- Articulated steering
- Water sprinkling, type
- Pressure
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Water tank, capacity
-
- Water tank, capacity
- 47.6 gal
- Sound power level L(WA), guaranteed
-
- Sound power level L(WA), guaranteed
- 104
Downloads
Related products
HD 12e VV
Tandem roller with two vibrating roller drums
| Drum width | 47.2 in |
| Weight | 6,075 lbs |
HD 10e VT
Tandem roller with vibrating roller drum and set of wheels
| Drum width | 39.4 in |
| Weight | 5,590 lbs |
HD 12e VT
Tandem roller with vibrating roller drum and set of wheels
| Drum width | 47.2 in |
| Weight | 5,887 lbs |

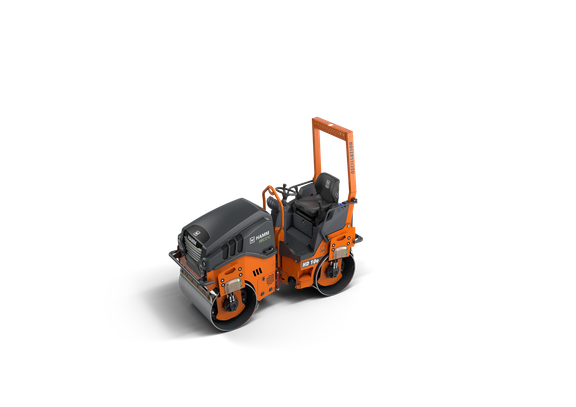

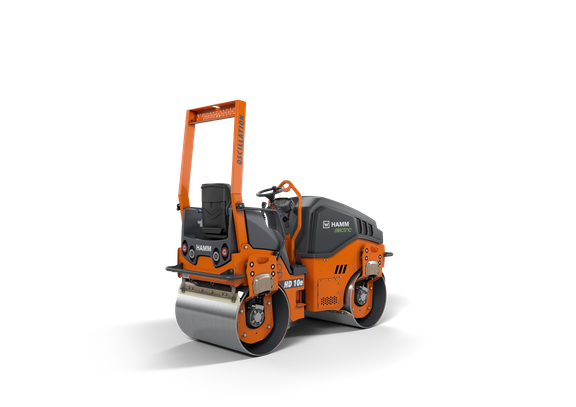

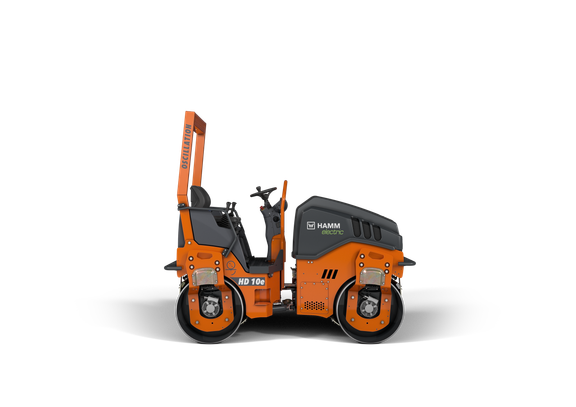

HD 10e VO
Tandem roller with vibration and oscillation drum
| Drum width | 39.4 in |
| Weight | 5,898 lbs |
HD 12e VO
Tandem roller with vibration and oscillation drum
| Drum width | 47.2 in |
| Weight | 6,196 lbs |

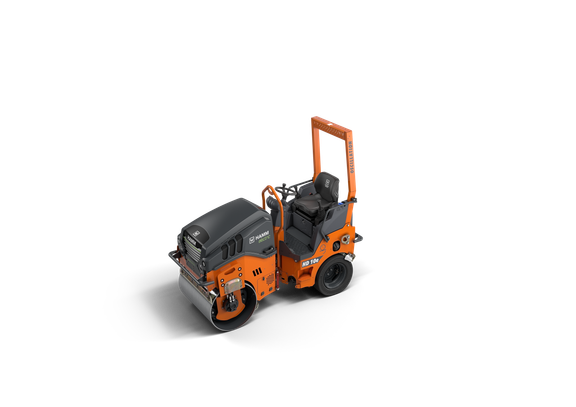

HD 10e OT
Tandem roller with oscillation drum and set of wheels
| Drum width | 39.4 in |
| Weight | 5,722 lbs |

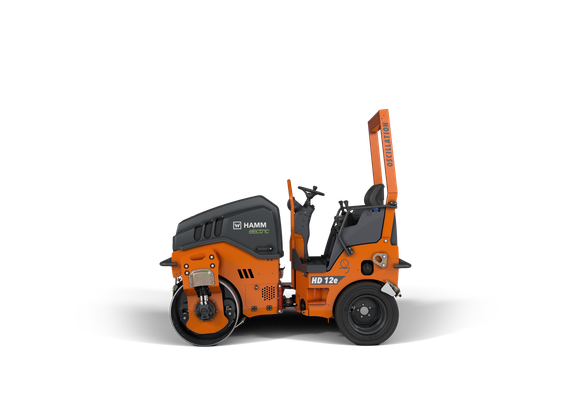

HD 12e OT
