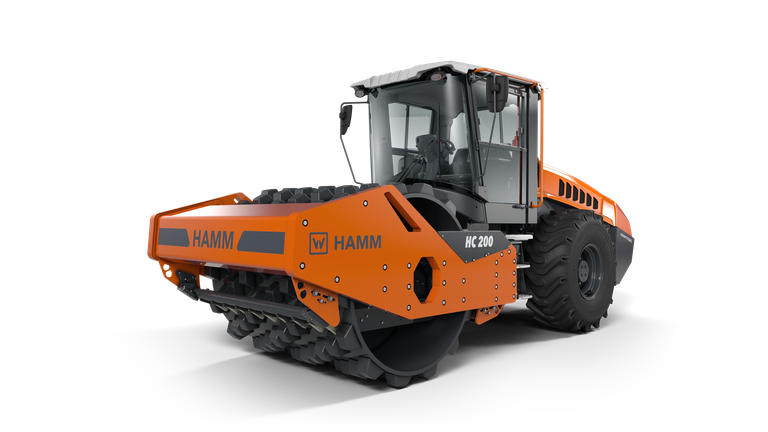

Compactor with padfoot drum HC 200 P

HC 200 P Compactor with padfoot drum

19,465 kg

2,140 mm

UN ECE R96 (Tier 3)

  • High compaction performance
  • Spacious driver's platform with Easy Drive operating concept
  • Hammtronic for high comfort, safety and reduced emissions
  • Customised configuration possibilities and a wide range of options
  • Digital ready
Show less

3-point articulation

3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Learn more

Easy Drive

Simple and intuitive operation is becoming increasingly important for state-of-the-art construction machinery. With Easy Drive, HAMM has, therefore, developed a standardised operating concept for tandem rollers (HD+ and DV+ series), compactors (H series) and pneumatic tyre rollers (HP series) that reduces complexity to a minimum and enables operators to react quickly and correctly in no time at all. Alongside its clear, intuitive, easy to learn operating concept, Easy Drive comprises a range of features that improve ergonomic, safety-related and service-related characteristics.

Learn more

HAMMTRONIC

HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, thereby increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programmes (for DV+ series only), guaranteeing even, smooth movement of both drums.

Learn more

Smart Compaction

In the Smart Compaction product range, HAMM offers various solutions for intelligent and simple compaction, compaction measurement and documentation. The focus here is on digital interfaces between the driver and the machine as well as various assistants. The innovations offered here (such as Smart Doc) contribute significantly to meeting the increasing demands for high compaction quality in modern earthworks and road construction, and directly integrating the megatrends of digitalisation and resource conservation into daily construction site activity.

Learn more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HC
Name
HC 200 P
Description
Compactor with padfoot drum
Exhaust emissions category
UN ECE R96 (Tier 3)
Series
H257
Static linear load, front
Operating weight with ROPS
Empty weight without cab, without ROPS
Operating weight with cab
Axle load, rear
Axle load, front
Static linear load, front
63.37 kg/cm
Operating weight with ROPS
19,245 kg
Empty weight without cab, without ROPS
18,380 kg
Operating weight with cab
19,465 kg
Axle load, rear
5,700 kg
Axle load, front
13,765 kg
Total length
Total width with cab
Maximum working width
Total height with cab
Centre distance
Ground clearance, centre
Turning radius, inside
Total height with ROPS
Slope angle, rear
Slope angle, front
Total length
6,610 mm
Total width with cab
2,474 mm
Maximum working width
2,140 mm
Total height with cab
3,046 mm
Centre distance
3,312 mm
Ground clearance, centre
453 mm
Turning radius, inside
4,278 mm
Total height with ROPS
3,054 mm
Slope angle, rear
25.7 °
Slope angle, front
33.6 °
Drum diameter, front
Drum width, front
Padfeet, quantity
Height of the padfeet
Drum type, front
Drum thickness, front
Drum diameter, front
1,803 mm
Drum width, front
2,140 mm
Padfeet, quantity
140
Height of the padfeet
112 mm
Drum type, front
Padfoot
Drum thickness, front
35 mm
Number of tyres, rear
Tyre size, rear
Width over tyres, rear
Number of tyres, rear
2
Tyre size, rear
TR 23.1/18-26 12 PR
Width over tyres, rear
2,140 mm
Manufacturer
Model
Cylinders, quantity
Exhaust emission standard
Exhaust gas after-treatment
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1349, rpm
Power SAE J1349, HP
Power SAE J1349, kW
Manufacturer
DEUTZ
Model
TCD 2012 L06 2V
Cylinders, quantity
6
Exhaust emission standard
UN ECE R96 (Tier 3)
Exhaust gas after-treatment
-
Power ISO 14396, rpm
2,000 rpm
Power ISO 14396, HP
203.9 HP
Power ISO 14396, kW
150 kW
Power SAE J1349, rpm
2,000 rpm
Power SAE J1349, HP
201.2 hp
Power SAE J1349, kW
150 kW
Regulation, infinitely variable
Speed, infinitely variable
Climbing ability, without vibration
Regulation, infinitely variable
HAMMTRONIC
Speed, infinitely variable
0 - 11,9
Climbing ability, without vibration
61 %
Centrifugal force, front, II
Centrifugal force, front, I
Amplitude, front, II
Amplitude, front, I
Vibration frequency, front, II
Vibration frequency, front, I
Centrifugal force, front, II
243.74 kN
Centrifugal force, front, I
343.05 kN
Amplitude, front, II
1.2 mm
Amplitude, front, I
2.1 mm
Vibration frequency, front, II
30 Hz
Vibration frequency, front, I
27 Hz
Steering, type
Steering, type
Articulated steering
Fuel tank, capacity
Fuel tank, capacity
336 l
Sound power level L(WA), guaranteed
Sound power level L(WA), guaranteed
107

Equipment

  • 12 V sockets (2-fold)
  • Two large exterior rear-view mirrors
  • 3-point articulation
  • Dashboard with displays, indicator lights and function keys
  • Easy Drive operating concept
  • ECO mode
  • Speed preselect
  • Hose protection on the front vehicle
  • Vibration-isolated driver's platform
  • Automatic vibration system
  • Traction Control, automatic
  • Steel scraper, for padfoot drum

Optional equipment

  • ROPS cab with heating system (FOPS, level I)
  • Seat belt monitoring device
  • Armrest comfort setting, left
  • Auxiliary heater
  • Radio
  • Tachograph
  • Fire extinguisher
  • Bluetooth interface for Smart Doc
  • Dashboard cover
  • Dozer blade
  • Automatic engine stop
  • Camera system
  • Working spotlights
  • Rotating beacon
  • Engine hood with electrical release mechanism
  • Coming Home function
  • Battery isolation switch
  • Tool kit
