NEW

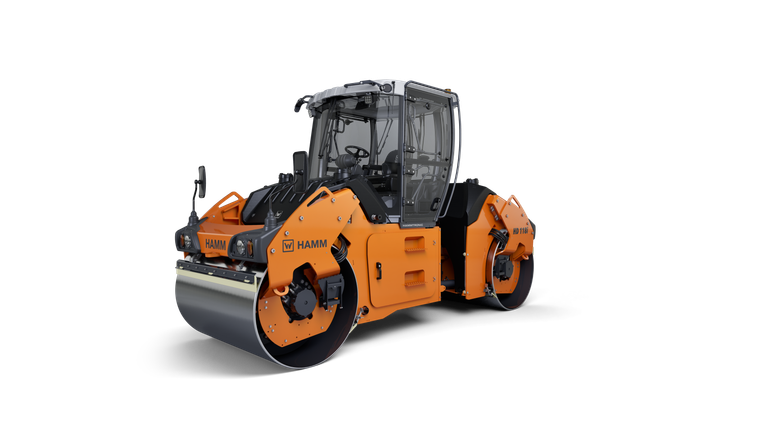

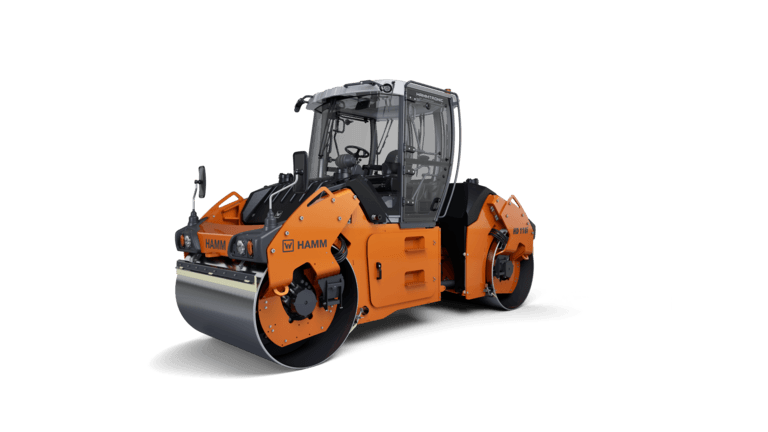

HD 118i VV Tandem roller with two vibrating roller drums
10,515 kg
1,680 mm
MEE IV
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HD
- Name
- HD 118i VV
- Description
- Tandem roller with two vibrating roller drums
- Exhaust emissions category
- MEE IV
- Series
- H298
- Operating weight with ROPS
- Empty weight without cab, without ROPS
- Operating weight with cab
- Static linear load, front
- Axle load, rear
- Axle load, front
-
- Operating weight with ROPS
- 10,295 kg
- Empty weight without cab, without ROPS
- 9,470 kg
- Operating weight with cab
- 10,515 kg
- Static linear load, front
- 31.55 kg/cm
- Axle load, rear
- 5,215 kg
- Axle load, front
- 5,300 kg
- Total length
- Total width with cab
- Maximum working width
- Total height with cab
- Centre distance
- Ground clearance, centre
- Turning radius, inside
- Total height with ROPS
-
- Total length
- 4,900 mm
- Total width with cab
- 1,807 mm
- Maximum working width
- 1,850 mm
- Total height with cab
- 2,980 mm
- Centre distance
- 3,700 mm
- Ground clearance, centre
- 340 mm
- Turning radius, inside
- 6,050 mm
- Total height with ROPS
- 3,099 mm
- Drum type, front
- Drum type, rear
- Track offset, left
- Drum thickness, rear
- Drum thickness, front
- Drum diameter, rear
- Drum diameter, front
- Drum width, rear
- Drum width, front
-
- Drum type, front
- Smooth/non-split
- Drum type, rear
- Smooth/non-split
- Track offset, left
- 170 mm
- Drum thickness, rear
- 22 mm
- Drum thickness, front
- 22 mm
- Drum diameter, rear
- 1,200 mm
- Drum diameter, front
- 1,200 mm
- Drum width, rear
- 1,680 mm
- Drum width, front
- 1,680 mm
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Power ISO 14396, rpm
- Power ISO 14396, HP
- Power ISO 14396, kW
- Power SAE J1349, rpm
- Power SAE J1349, HP
- Power SAE J1349, kW
-
- Manufacturer
- CUMMINS
- Model
- B3.9CS4 130C
- Cylinders, quantity
- 4
- Exhaust emission standard
- MEE IV
- Power ISO 14396, rpm
- 2,500 rpm
- Power ISO 14396, HP
- 131 HP
- Power ISO 14396, kW
- 96 kW
- Power SAE J1349, rpm
- 2,500 rpm
- Power SAE J1349, HP
- 129 hp
- Power SAE J1349, kW
- 96 kW
- Regulation, infinitely variable
- Speed, infinitely variable
- Climbing ability, without vibration
-
- Regulation, infinitely variable
- HAMMTRONIC
- Speed, infinitely variable
- 0 - 11,0
- Climbing ability, without vibration
- 39 %
- Centrifugal force, rear, II
- Centrifugal force, rear, I
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, rear, II
- Vibration frequency, rear, I
- Vibration frequency, front, II
- Vibration frequency, front, I
- Amplitude, rear, II
- Amplitude, rear, I
-
- Centrifugal force, rear, II
- 99 kN
- Centrifugal force, rear, I
- 120 kN
- Centrifugal force, front, II
- 99 kN
- Centrifugal force, front, I
- 120 kN
- Amplitude, front, II
- 0.49 mm
- Amplitude, front, I
- 0.86 mm
- Vibration frequency, rear, II
- 50 Hz
- Vibration frequency, rear, I
- 42 Hz
- Vibration frequency, front, II
- 50 Hz
- Vibration frequency, front, I
- 42 Hz
- Amplitude, rear, II
- 0.49 mm
- Amplitude, rear, I
- 0.86 mm
- Steering, type
- Water sprinkling, type
-
- Steering, type
- Articulated steering
- Water sprinkling, type
- Pressure
- Water sprinkling, type
-
- Water sprinkling, type
- Pressure
- Fuel tank, capacity
- Water tank, capacity
-
- Fuel tank, capacity
- 173 l
- Water tank, capacity
- 760 l
