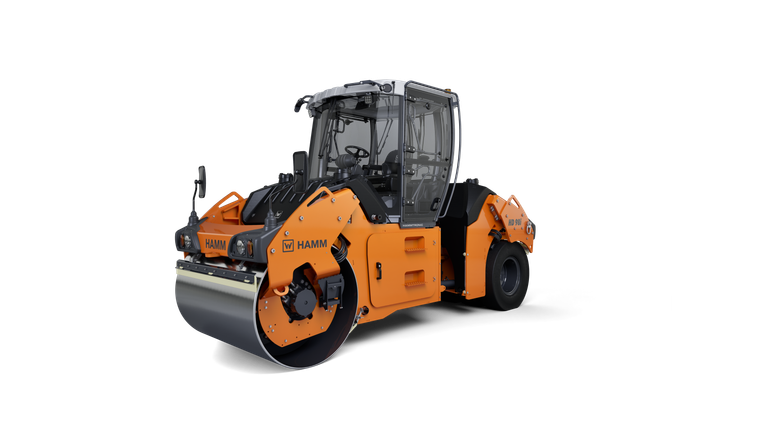

Tandem roller with vibrating roller drum and set of wheels HD 98i VT
NEW

HD 98i VT Tandem roller with vibrating roller drum and set of wheels

9,070 kg

1,680 mm

MEE IV

  • 3-point articulation for even weight distribution and excellent on-centre feel
  • Ergonomic driver platform with rotatable seat operating unit and adjustable driver's seat
  • Track offset for comfortable start up, moving away and compacting at curb edges
  • Hammtronic for high comfort, safety and reduced emissions
  • Simple, intuitive and language-neutral operation
Show less

3-point articulation

3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.

Learn more

HAMMTRONIC

HAMMTRONIC is an electronic machine management system that monitors and controls all key machine functions, thereby increasing safety, economy and fuel savings. The opportunities offered by HAMMTRONIC include, for instance, automatic adjustment of the diesel engine speed to meet the power requirements of the individual drives. Moreover, HAMMTRONIC controls start-up and braking, and distributes the drive torques across the drum axis and back wheels in line with current operating data. HAMMTRONIC also controls the hydrostatic vibration drive and the various steering programmes (for DV+ series only), guaranteeing even, smooth movement of both drums.

Learn more

Technical specifications

Series
Name
Description
Exhaust emissions category
Series
Series
HD
Name
HD 98i VT
Description
Tandem roller with vibrating roller drum and set of wheels
Exhaust emissions category
MEE IV
Series
H298
Static linear load, front
Operating weight with ROPS
Empty weight without cab, without ROPS
Operating weight with cab
Axle load, rear
Axle load, front
Static linear load, front
28.57 kg/cm
Operating weight with ROPS
8,850 kg
Empty weight without cab, without ROPS
8,015 kg
Operating weight with cab
9,070 kg
Axle load, rear
4,270 kg
Axle load, front
4,800 kg
Total length
Total width with cab
Maximum working width
Total height with cab
Centre distance
Ground clearance, centre
Turning radius, inside
Total height with ROPS
Total length
4,900 mm
Total width with cab
1,807 mm
Maximum working width
1,820 mm
Total height with cab
3,010 mm
Centre distance
3,700 mm
Ground clearance, centre
340 mm
Turning radius, inside
6,050 mm
Total height with ROPS
3,099 mm
Drum diameter, front
Drum width, front
Drum type, front
Drum thickness, front
Track offset, left
Drum diameter, front
1,200 mm
Drum width, front
1,680 mm
Drum type, front
Smooth/non-split
Drum thickness, front
17 mm
Track offset, left
170 mm
Number of tyres, rear
Tyre size, rear
Width over tyres, rear
Number of tyres, rear
4
Tyre size, rear
11.00-20
Width over tyres, rear
1,620 mm
Manufacturer
Model
Cylinders, quantity
Exhaust emission standard
Power ISO 14396, rpm
Power ISO 14396, HP
Power ISO 14396, kW
Power SAE J1349, rpm
Power SAE J1349, HP
Power SAE J1349, kW
Manufacturer
CUMMINS
Model
B3.9CS4 130C
Cylinders, quantity
4
Exhaust emission standard
MEE IV
Power ISO 14396, rpm
2,500 rpm
Power ISO 14396, HP
131 HP
Power ISO 14396, kW
96 kW
Power SAE J1349, rpm
2,500 rpm
Power SAE J1349, HP
129 hp
Power SAE J1349, kW
96 kW
Regulation, infinitely variable
Speed, infinitely variable
Climbing ability, without vibration
Regulation, infinitely variable
HAMMTRONIC
Speed, infinitely variable
0 - 11,0
Climbing ability, without vibration
47 %
Centrifugal force, front, II
Centrifugal force, front, I
Amplitude, front, II
Amplitude, front, I
Vibration frequency, front, II
Vibration frequency, front, I
Centrifugal force, front, II
59.6 kN
Centrifugal force, front, I
75.5 kN
Amplitude, front, II
0.34 mm
Amplitude, front, I
0.62 mm
Vibration frequency, front, II
50 Hz
Vibration frequency, front, I
42 Hz
Steering, type
Water sprinkling, type
Steering, type
Articulated steering
Water sprinkling, type
Pressure
Water sprinkling, type
Water sprinkling, type
Pressure
Fuel tank, capacity
Water tank, capacity
Additive tank, capacity
Fuel tank, capacity
173 l
Water tank, capacity
760 l
Additive tank, capacity
22 l

Equipment

  • 12 V power socket
  • Two large exterior rear-view mirrors
  • Scrapers foldable
  • Pressure water sprinkling system
  • ECO mode
  • Driver’s platform with access from both sides
  • Speed-controlled water sprinkling
  • Speed preselect
  • Automatic traction control and anti-slip control
  • Vibration-isolated driver's platform
  • Water-sprinkling system with spray bars front and rear
  • Track offset, hydraulic
  • Water filter system (3-fold)
  • Water tank front and rear, can be filled from both sides
  • Central water outlet
  • Additive-sprinkling system for tyres, rear
Show less

Optional equipment

  • Heating and air-conditioning system
  • Steering column with comfort exit and tiltable dashboard
  • Process data interface for third-party provider systems, asphalt construction
  • Edge pressing and cutting equipment
  • Automatiic environment detection
  • GPS system for position-fixing
  • Working spotlights
  • Drum edge lighting
Show less
Show less
