NEW

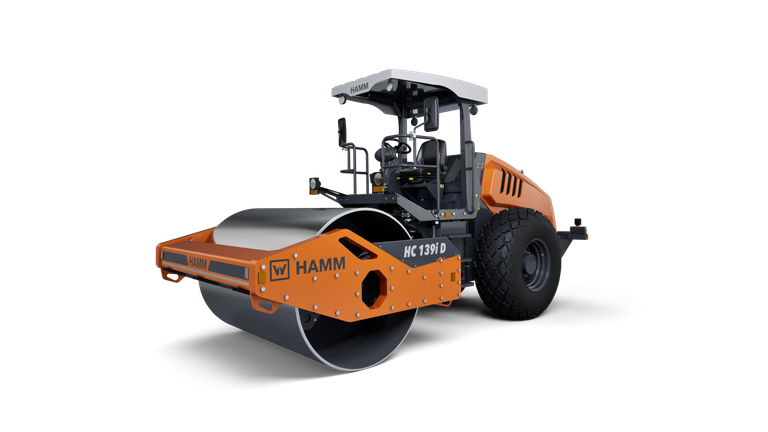

HC 139iD Compactor with smooth drum
13,160 kg
2,140 mm
CEV V
3-point articulation
3-point articulation is different to conventional joints due to its geometric arrangement and connection of the three individual joints and one additional connecting link between the two conventional upper joints. This allows optimum steering, excellent driving safety and maximum driving comfort.
Technical specifications
- Series
- Name
- Description
- Exhaust emissions category
- Series
-
- Series
- HC
- Name
- HC 139iD
- Description
- Compactor with smooth drum
- Exhaust emissions category
- CEV V
- Series
- H305
- Static linear load, front
- Operating weight with ROPS
- Empty weight without cab, without ROPS
- Axle load, rear
- Axle load, front
- Max. operating weight
-
- Static linear load, front
- 34.9 kg/cm
- Operating weight with ROPS
- 13,160 kg
- Empty weight without cab, without ROPS
- 12,515 kg
- Axle load, rear
- 5,700 kg
- Axle load, front
- 7,460 kg
- Max. operating weight
- 15,340 kg
- Total width
- Total length
- Maximum working width
- Centre distance
- Ground clearance, centre
- Turning radius, inside
- Total height
- Slope angle, rear
- Slope angle, front
-
- Total width
- 2,410 mm
- Total length
- 5,989 mm
- Maximum working width
- 2,140 mm
- Centre distance
- 2,992 mm
- Ground clearance, centre
- 470 mm
- Turning radius, inside
- 4,260 mm
- Total height
- 3,067 mm
- Slope angle, rear
- 27 °
- Slope angle, front
- 41 °
- Drum diameter, front
- Drum width, front
- Drum type, front
- Drum thickness, front
-
- Drum diameter, front
- 1,504 mm
- Drum width, front
- 2,140 mm
- Drum type, front
- Smooth
- Drum thickness, front
- 25 mm
- Number of tyres, rear
- Tyre size, rear
- Width over tyres, rear
-
- Number of tyres, rear
- 2
- Tyre size, rear
- AW 23.1-26 8 PR
- Width over tyres, rear
- 2,140 mm
- Manufacturer
- Model
- Cylinders, quantity
- Exhaust emission standard
- Power SAE J1995, rpm
- Power SAE J1995, HP
- Power SAE J1995, kW
-
- Manufacturer
- ASHOK LEYLAND
- Model
- H4C513022
- Cylinders, quantity
- 4
- Exhaust emission standard
- CEV V
- Power SAE J1995, rpm
- 2,200 rpm
- Power SAE J1995, HP
- 128 hp
- Power SAE J1995, kW
- 95.6 kW
- Speed, transport gear
- Climbing ability, without vibration
- Speed, working gear, I
-
- Speed, transport gear
- 0-12,0
- Climbing ability, without vibration
- 53 %
- Speed, working gear, I
- 0-7,0
- Centrifugal force, front, II
- Centrifugal force, front, I
- Amplitude, front, II
- Amplitude, front, I
- Vibration frequency, front, II
- Vibration frequency, front, I
-
- Centrifugal force, front, II
- 145 kN
- Centrifugal force, front, I
- 241 kN
- Amplitude, front, II
- 0.9 mm
- Amplitude, front, I
- 2.08 mm
- Vibration frequency, front, II
- 35 Hz
- Vibration frequency, front, I
- 30 Hz
- Steering, type
-
- Steering, type
- Articulated steering
- Fuel tank, capacity
-
- Fuel tank, capacity
- 270 l
