Road pavers
The right paver for every application
Our comprehensive product range is divided into two lines: the Classic Line and the Premium Line. The Classic Line is for pavers equipped with the particularly easy-to-use ErgoBasic operating concept. The Premium Line comprises all pavers that feature cutting-edge technology and advanced mechanical engineering. Premium Line products are all equipped with the ErgoPlus 3 operating concept. Each of the product lines is subdivided into up to five different classes:
Mini Class
Small and efficient: The Mini Class encompasses VÖGELE’s small pavers, which are designed both for repair work and for the construction of cycle paths, footpaths and farm tracks, minor roads, parking lots and sports grounds. They fill trenches, pave surfaces in halls or underground parking decks and can be used in landscaping projects.
NEW
MINI 500
| Nominal output | 10.2 kW |
| Basic width | 0.9 m |
| Paving width, max. | 1.8 m |
| Maximum laydown rate | 20 t/h |
NEW

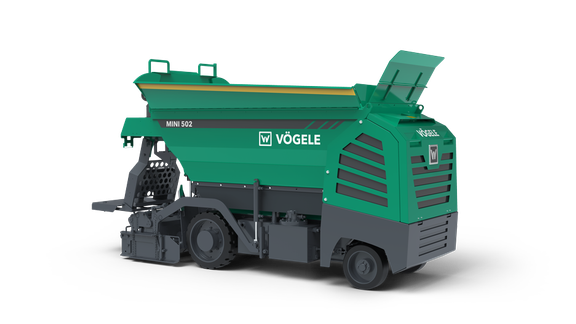

MINI 502
| Nominal output | 10.2 kW |
| Basic width | 0.92 m |
| Paving width, max. | 1.8 m |
| Maximum laydown rate | 20 t/h |
SUPER 700i
Classic Line
| Nominal output | 55.4 kW |
| Basic width | 1.33 m |
| Paving width, max. | 3.2 m |
| Maximum laydown rate | 250 t/h |
Compact Class
Compact and maneuverable: these are the hallmarks of Compact Class pavers. VÖGELE compact pavers are thus particularly suitable for small to mid-sized construction jobs with confined conditions, such as the construction or rehabilitation of combined foot and cycle paths, city streets, farm tracks and even small to medium-sized areas.
_CaP.png)
SUPER 1300-3i
Premium Line
| Nominal output | 74.4 kW |
| Basic width | 1.85 m |
| Paving width, max. | 5 m |
| Maximum laydown rate | 350 t/h |
Universal Class
Versatile and powerful: The extremely wide range of applications is the most striking feature of pavers in the Universal Class. They handle highway projects just as well as traffic circles, also because they can be combined with VÖGELE high-compaction technology.

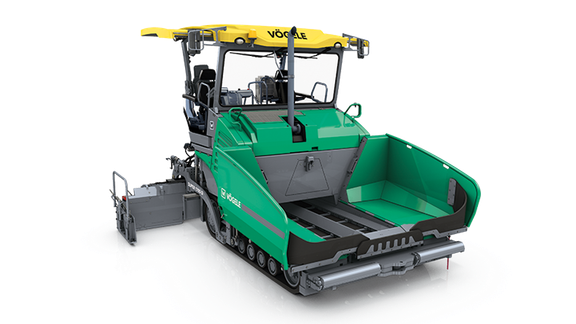

SUPER 1700-3i
Premium Line
| Nominal output | 129 kW |
| Basic width | 2.59 m |
| Paving width, max. | 5.95 m |
| Maximum laydown rate | 700 t/h |

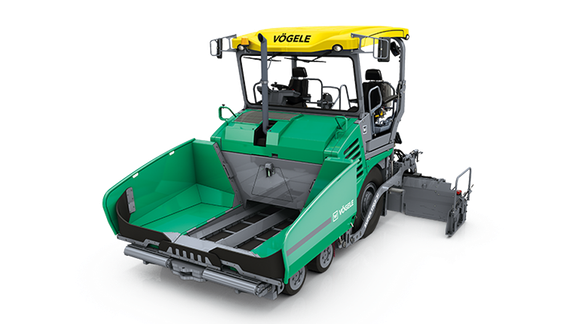

SUPER 1703-3i
Premium Line
| Nominal output | 129 kW |
| Basic width | 2.59 m |
| Paving width, max. | 5.95 m |
| Maximum laydown rate | 700 t/h |
Highway Class
Far and wide: The VÖGELE pavers of the Highway Class are perfectly at home on highways and handling other demanding large-scale projects. Immense paving widths and laydown rates, the possibility of using high compaction technology and plenty of power are all part of the package with these pavers.

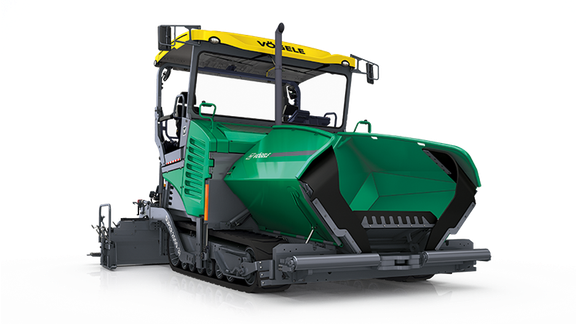

SUPER 2000-3i
Premium Line
| Nominal output | 186 kW |
| Basic width | 3 m |
| Paving width, max. | 8.6 m |
| Maximum laydown rate | 1,400 t/h |
SUPER 2003-3i
Premium Line
| Nominal output | 186 kW |
| Basic width | 3 m |
| Paving width, max. | 7.75 m |
| Maximum laydown rate | 1,400 t/h |
SUPER 2100-5i
Premium Line
| Nominal output | 187 kW |
| Basic width | 2.55 m |
| Paving width, max. | 14 m |
| Maximum laydown rate | 1,100 t/h |
SUPER 3000-3i
Premium Line
| Nominal output | 354 kW |
| Basic width | 3 m |
| Paving width, max. | 18 m |
| Maximum laydown rate | 1,800 t/h |
Special Class
That special something: The Special Class comprises machines for specific applications, such as a spray paver for paving thin overlay "hot on hot" or InLine Pave machine technology for the construction of compact asphalt pavements. This also includes material feeders for the uninterrupted and non-contacting transfer of mix.

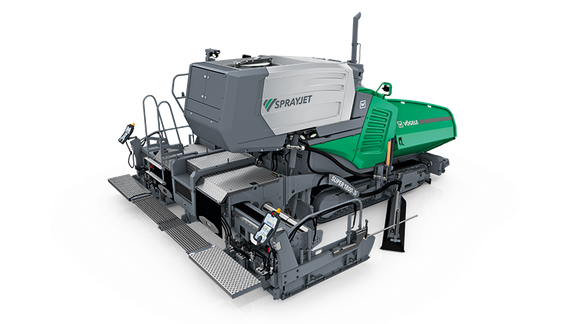

SUPER 1800-3i SprayJet
Premium Line
| Nominal output | 129 kW |
| Basic width | 2.55 m |
| Paving width, max. | 6 m |
| Maximum laydown rate | 700 t/h |
All details, illustrations and texts are non-binding and may include special equipment. We reserve the right to make technical changes without prior notice. Performance data are dependent upon actual operational conditions.
