Slipform pavers


Continuous paving of concrete surfaces and monolithic profiles

Offset pavers are used to produce monolithic concrete profiles such as protective concrete walls, kerb profiles, gutters or narrow paths. Thanks to numerous options, such as for concrete feeding or slipforming, offset slipform pavers are extremely versatile. Inset pavers cost-effectively produce concrete pavements, such as for motorways, arterial roads, runways or railway lines. In addition to single-layer concrete paving, bottom-layer and top-layer concrete can also be paved synchronously in two layers ‘wet on wet’.

Offset slipform pavers

With offset slipform pavers, the concrete is transported into the offset mold via a loading conveyor or a conveyor auger. The offset mold can be mounted on the left or right-hand side of the machine. A number of molds in a wide range of different shapes and sizes are available for individual applications. The offset profiles are continually produced monolithically, with or without reinforcements. Machine features include a top-quality machine control system, a practical steering and drive system and stringline-free concrete paving.

SP 15i Offset slipform pavers
SP 15i

Offset slipform pavers

Max. mold width
5 ft 11 in
Max. mold height
4 ft 3 in
Rated power 95 kW / 127 hp 2,100 min-1
Operating weight, CE
22,818 lbs
SP 25i Offset slipform pavers
SP 25i

Offset slipform pavers

Max. mold width
12 ft
Max. mold height
6 ft 7 in
Rated power 115 kW / 154 hp
Operating weight, CE
29,982 lbs
SP 61i Offset slipform pavers
SP 61i

Offset slipform pavers

Max. mold width
13 ft 1 in
Max. mold height
9 ft 10 in
Rated power 180 kW / 241 hp 2,100 min-1
Operating weight, CE
38,360 lbs

Inset slipform pavers

With inset slipform pavers, the concrete is placed directly in front of the machine and distributed by a spreading auger or spreading plough. Vibrators compact the concrete homogeneously and the mold forms it in the specified width and thickness as the slipform paver advances. Integrated dowel bar and tie bar inserters position dowel bars and tie bars as specified. The finishing beam levels the area transverse to the pavement and the super smoother creates a perfect surface. When paving dual-layer concrete, the bottom-layer and top-layer concrete are processed simultaneously and paved wet-in-wet.

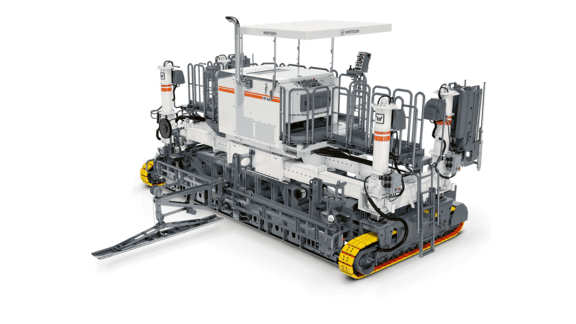

SP 62i Inset slipform pavers
SP 62i

Inset slipform pavers

Paving width
12 ft - 24 ft
Paving height
0 - 18 in
Rated power 180 kW / 241 hp
Machine weight
52,910 - 74,957 lbs

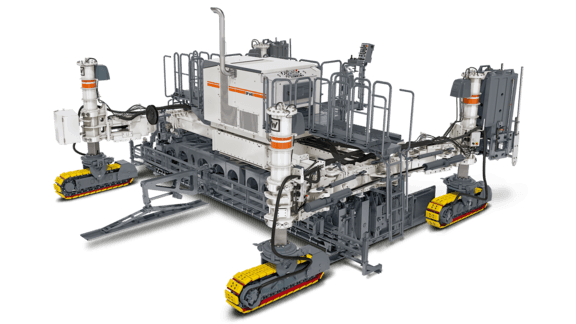

SP 64i Inset slipform pavers
SP 64i

Inset slipform pavers

Paving width
6 ft 6 in - 24 ft
Paving height
0 - 18 in
Rated power 180 kW / 241 hp
Machine weight
37,500 - 99,200 lbs
SP 94i Inset slipform pavers
SP 94i

Inset slipform pavers

Paving width
12 ft - 32 ft
Paving height
0 - 18 in
Rated power 231 kW / 310 hp
Machine weight
52,910 - 143,300 lbs
SP 102i Inset slipform pavers
SP 102i

Inset slipform pavers

Paving width
16 ft - 40 ft
Paving height
0 - 18 in
Rated power 231 kW / 310 hp
Machine weight
55,000 - 110,000 lbs
SP 124i Inset slipform pavers
SP 124i

Inset slipform pavers

Paving width
16 ft - 40 ft
Paving height
0 - 18 in
Rated power 321 kW / 430 hp
Machine weight
123,459 - 224,872 lbs

Texture curing machines

Texture curing machines give the concrete pavement the desired surface texture, applying a dispersion which prevents the surface and edges from drying too quickly. The specified surface texture is achieved with a brush. Alternatively, a burlap or synthetic turf can be drawn across the concrete pavement in a longitudinal direction. Automatic crown adjustment and a film unwinder round off the features of the machine.

TCM 95i Texture curing machines
TCM 95i

Texture curing machines

Working width max. 32 ft
Working height 1 ft 8 in
Rated power 55.4 kW / 74.3 hp
Operating weight, CE 17,196 - 25,574 lbs
TCM 180i Texture curing machines
TCM 180i

Texture curing machines

Working width max. 59 ft
Working height 1 ft 8 in
Rated power 55.4 kW / 74.3 hp
Operating weight, CE 20,062 - 40,565 lbs

Placer/Spreader

If reinforcement needs to be laid in advance during the construction of concrete roadways, the concrete can be fed in laterally using a placer/spreader. The placer/spreader travels in front of the slipform paver over the pre-placed reinforcement, while a truck mixer feeds the belt conveyor with concrete from the side. The concrete is poured evenly over the pre-placed reinforcement, in front of the slipform paver, and distributed across the entire working width. Once the truck mixer is empty, the belt conveyor can be folded away in a very short time to clear the path for the next mixer.

WPS 62i Placer/spreaders
WPS 62i

Placer/spreaders

Paving width
12 ft - 24 ft
Paving height
0 - 20 in
Rated power 180 kW / 241 hp
Operating weight CE (at paving width of 12 ft) 76.39 lbs - 82.629 lbs
WPS 102i Placer/spreaders
WPS 102i

Placer/spreaders

Paving width
12 ft - 40 ft
Paving height
0 - 20 in
Rated power 231 kW / 310 hp 2,300 min-1
Operating weight CE (at paving width of 12 ft) 92.065 lbs - 103.088 lbs
